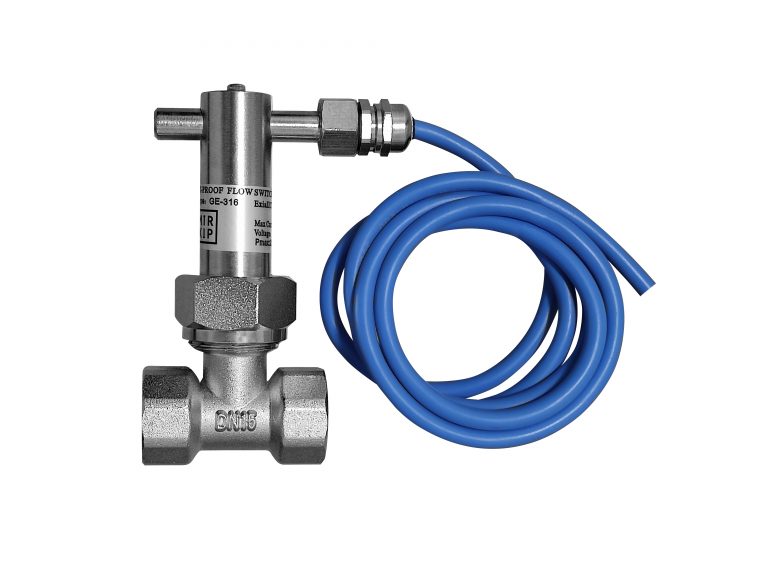

MIRKIP MFSGE-316 Explosion proof Smart Paddle Flow Switch

Paddle Flow Switch is a very low cost Ex-proof flow switch, specially designed for the Flow Monitoring of Water Source, Water-Loop Heat Pump Air Conditioning Systems and Heat Pump Water Heater

			int(23476)
NULL


Made in Russia. brand MIRKIP, model MFSGE-316

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

Retailprice from $349

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Description of MIRKIP MFSGE-316

Much lower price.This paddle water flow switches is produced as the ExiaIICT6 ExiaIIIC T85C Explosion Proof standard, could be used in the anti explosion environment. International Protection could be IP68 (Optional). ATEX certificate for the flow switch, UL certificate for micro switch.

Features:

  • Good repeatability
  • Low pressure loss
  • Dirt resistant
  • Anti Explosion
  • Hermetic separation of electrical and hydraulic components
  • Stress free fixation of switch unit by plastic cap

Technical specifications of MIRKIP MFSGE-316

Substance Temperature от -45°C до 125°C
Operation Voltage 12 V-24 V DC
Max Voltage 350V DC; 300V AC
Max Switch Current: 0.1A for Ex type; 1.0A for Non-Ex type
Max Carry Current 2.5A
Contact Rating 70VA
Average Pressure Loss 0.01bar at Qmax.
Hysteresis depending on switch value Minimum 0.7 l/min.
Applications Oil, Water, Gas, Air (If special substances, please declare)
Max Pressure 25 bar (40 bar could be custom-made)
Pipe Size DN10~DN80
Materials Brass or Stainless Steel
Expand Table

TR CU 012/2011 certificate specifies ambient temperature range -20°C ~ 80°C

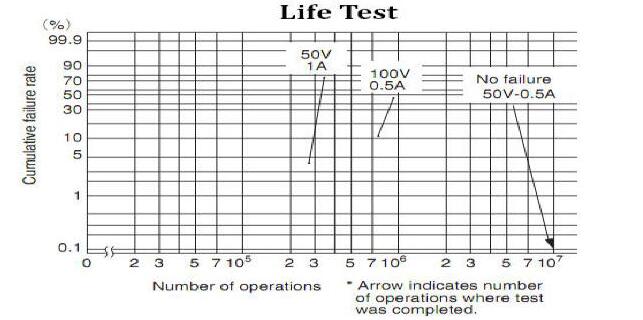

Life Time:

User Guide and Instruction manual for MIRKIP MFSGE-316

You can request the necessary certificates, documentation, instructions and user guide for MIRKIP MFSGE-316 using the special form.

You can buy MIRKIP MFSGE-316 in Latvia at a price starting from349 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email . MIRKIP MFSGE-316 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
