Wireless Transmitter
Made in USA. brand MACURCO, model TXP-WTA
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

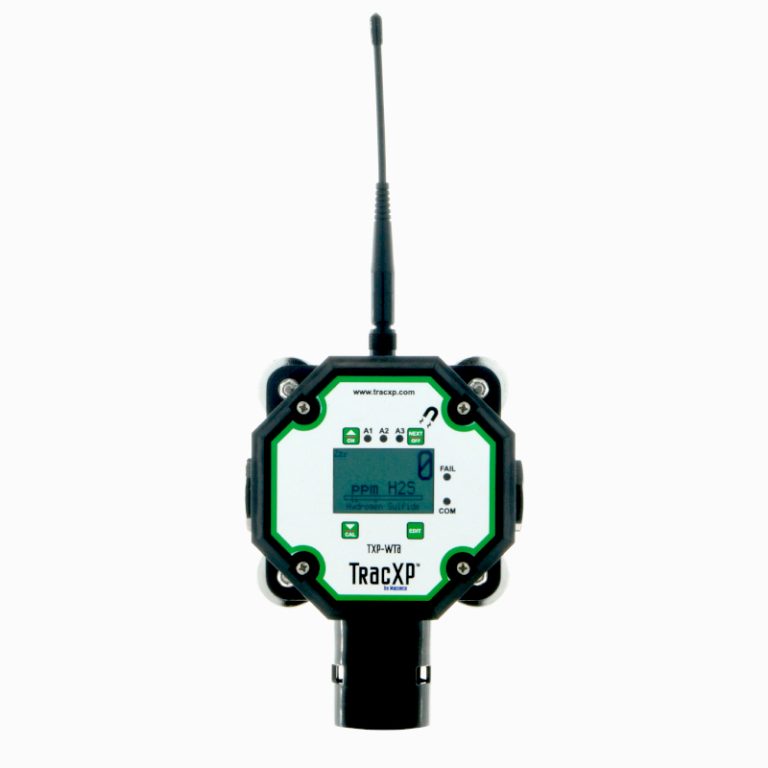

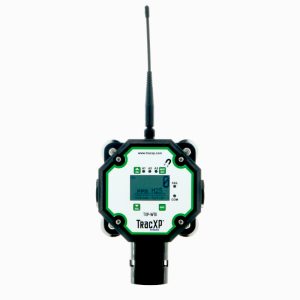

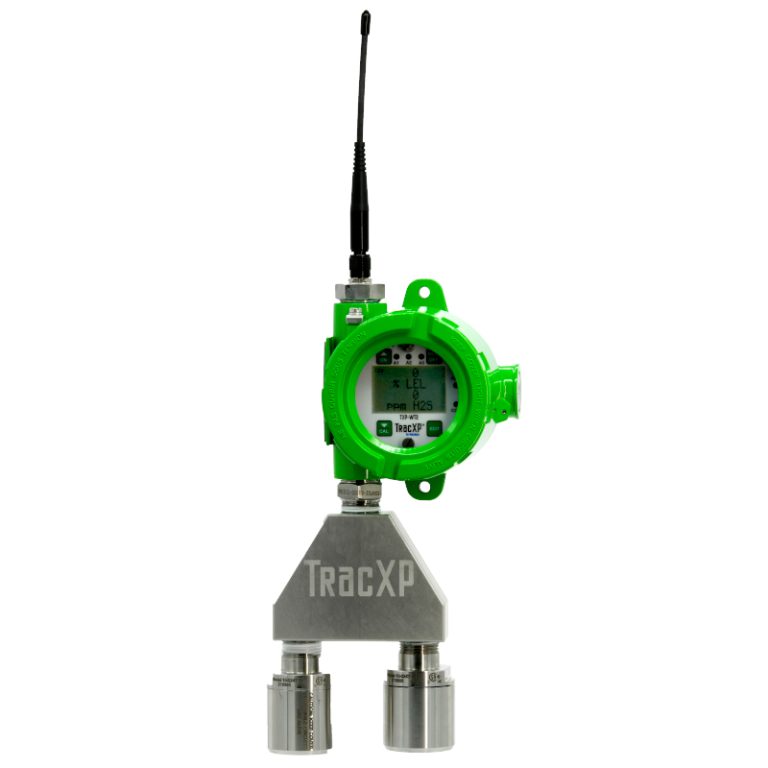

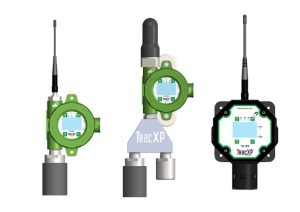

The TracXP TXP-WTA wireless gas transmitter is available using a robust 900 MHz radio frequency to meet your most demanding communication requirements. The TXP-WTA can be configured in single or dual sensor configurations to allow redundant readings for critical operations or monitoring combination gases. The TXP-WTA’s smart sensors allow changing sensor types quite easily and utilizes the same sensors as our TXP-T40 wired transmitters. The TXP-WTA also supports integral and remote sensor options. Intuitive non-intrusive magnetic interface makes set up and programming quick and easy. Power options include standard 3.6V disposable Lithium battery for portability or a 12–24 VDC power option for longer term or permanent installations.
Key features
Applications
| Size | 5″(L) x 5.4″(W) x 8″(H) Aluminum housing 4″(L) x 5″(W) x 7″(H) Poly housing |
| Shipping Weight | 6.5 lbs. (3 k.) Aluminum housing 3 lbs. (2 k.) Poly housing |
| Power Supply | Disposable, internal D-cell lithium battery 12-24 VDC option |
| Input | Single or dual electrochemical or infrared sensors input capable 4-20 mA input option |
| Standard Output | Frequency-hopping spread spectrum (FHSS) Wireless modem w/ data encryption 900MHz power adjustable from 10mW to 1.0 watt/0-30dBm |
| Display | 64 x 128 Pixel LCD w/ 30-minute trend Baragraph & engineering units display |
| Temperature | -40°F to 131°F (-40°C to +55°C) *See sensor specs |
| Humidity | 0-95% RH Non-Condensing |
| Approvals | FCC 15.247 & Industry Canada (IC), CSA Certified for Class 1, Division 2 Hazardous locations |
| Performance | 900MHz indoor/urban range: Up to 3000 feet 900MHz frequency range: 902 – 928 MHz w/50 hops w/ 2dBi dipole antenna 900MHz outdoor RF LOS range: Up to 2-3 miles w/ high-gain antenna |
Sensor Options
| Ammonia (NH₃) | Oxygen (O₂) |
| Carbon Dioxide (CO₂) | Sulfur Dioxide (SO₂) |
| Carbon Monoxide (CO) | 4-20 mA input option |
| Chlorine (Cl₂) | |
| Combustibles (IR) | |
| Hydrogen (H₂) | |
| Hydrogen Chloride (HCl) | |
| Hydrogen Cyanide (HCN) | |
| Hydrogen Sulfide (H₂S) | |
| Nitric Oxide (NO) | |
| Nitrogen Dioxide (NO₂) |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-WTA using the special form.
You can buy MACURCO TXP-WTA in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MACURCO TXP-WTA price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
