Advanced, easy-to-use, multi-gas monitor with built-in pump for confined space entry and worker protection in hazardous environments
Made in USA. brand MACURCO, model PM500
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

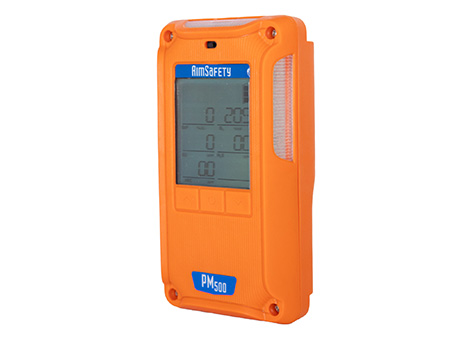

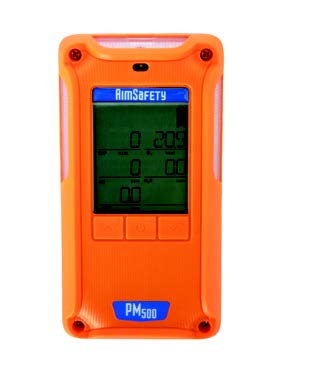

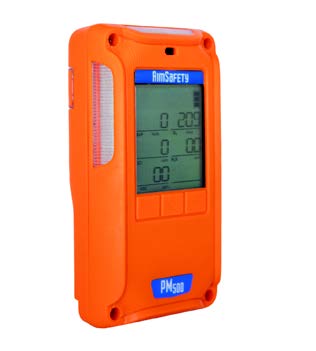

Macurco’s newest addition to the AimSafety portable gas solution lineup is the PM500 sampling type monitor. This rugged handheld, combined with a strong internal pump, can measure up to six gases simultaneously to allow for safe entry in confined spaces and hard-to-reach areas.
PM500 monitors are equipped with audible, visual and vibrating alarms to alert the user of unsafe gas concentrations. The large backlit LCD provides sampled gas concentrations in real-time along with configurable alarm setpoints (low, high, STEL and TWA). Standard target gases include carbon monoxide (CO), hydrogen sulfide (H2S), oxygen (O2) and combustible gases. Additional gas options include ammonia (NH3), sulfur dioxide (SO2), nitrogen dioxide (NO2), volatile organic compounds (VOCs) and others.
Key features
Applications
| Size | 5.7″(L) x 3.0″(W) x 1.7″(H) 14.6 cm x 7.7 cm x 4.3 cm |
| Weight | 17.3 oz. (490 g.) |
| Mounting Type | Clip |
| Battery | Rechargeable Lithium-Ion Nominal Voltage: 3.7V Nominal Capacity: 4000mAh Maximum Charging Voltage: 6.3V |
| Runtime | PM500-IR: 5 days PM500-P: 30 hours |
| Event Logging | 30 Events |
| Data Logging | Calibation Log: 30 EA Bump Log: 30 EA Data Log: Two months or longer |
| IP Rating | IP67 (IP ratings do not imply that the equipment will detect gas during and after exposure to those conditions) |
| Display | Segment LCD backlight display |
| Alarms | Backlight LCD alarm display / LED indicator Audible buzzer (90dB at 10cm) Vibrating alarm |
| Temperature | -4°F to 122°F (-20°C to 50°C) |
| Humidity | 10% to 90% RH (Non-condensing) |
| Certifications | UL/CSA Ex db ia IIC T4 Gb Class I, Division 1, Groups A, B, C, and/or D, T4 Class I, Zone 1, AEx db ia IIC T4 Gb IECEx Ex db ia IIC T4 Gb or Ex db ia IIB T4 Gb ATEX Ex db ia IIC T4 Gb or Ex db ia IIB T4 Gb INMETRO Ex d ia IIC T4 Gb or Ex d ia IIB T4 Gb EMC Directive 2014/30/EU Certifications are listed for PM500-IR and vary by model. Refer to manual for complete list. |
| Warranty | Two year limited warranty |
Gas Options
| Gas | Range | Resolution |
| CO | 0 – 500 PPM | 1 PPM |
| H₂S | 0 – 100 PPM | 0.1 PPM |
| O₂ | 0 – 30 %VOL | 0.1 %VOL |
| Combustible | 0 – 100 %LEL | 1 %LEL |
| NH₃ | 0 – 100 PPM | 0.1 PPM |
| SO₂ | 0 – 50 PPM | 0.1 PPM |
| NO₂ | 0 – 20 PPM | 0.1 PPM |
| VOCs | 0 – 4,000 PPM | 0.1 PPM |
Alarm Levels / Calibration Gas Defaults
| Gas | Low | High | STEL | TWA | CAL |
| CO | 35 | 100 | 200 | 35 | 100 PPM |
| H₂S | 10 | 15 | 15 | 10 | 25 PPM |
| O₂ | 19.5 | 23.5 | 18 %Vol | ||
| LEI | 10 | 20 | 50 %LEI | ||
| NH₃ | 25 | 50 | 35 | 50 | 50 PPM |
| SO₂ | 2 | 5 | 5 | 5 | 10 PPM |
| NO₂ | 2.5 | 5 | 1 | 1 | 10 PPM |
| VOCs | 10 | 20 | 100 PPM |
| Photo | Model | Description |
|---|---|---|
| 31-0006-4603-2 | Gas Regulator (Demand Flow) | |
| 37-0551-3344-2 | Cal-Gas Quad Mix (CO/H2S/O2/LEL) | |
| 70-2900-0572-0 | PM500-CSK Confined Space Kit | |
| 70-2900-0536-8 | PM Link PC Communicator | |
| 70-2900-0572-7 | PM500-SPK Sampling Probe Kit | |
| 70-2900-0534-1 | PM500 Vehicle Charger Kit | |
| 70-2900-0573-1 | PM500-STN Bump/Cal Station |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO PM500 using the special form.
You can buy MACURCO PM500 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MACURCO PM500 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
