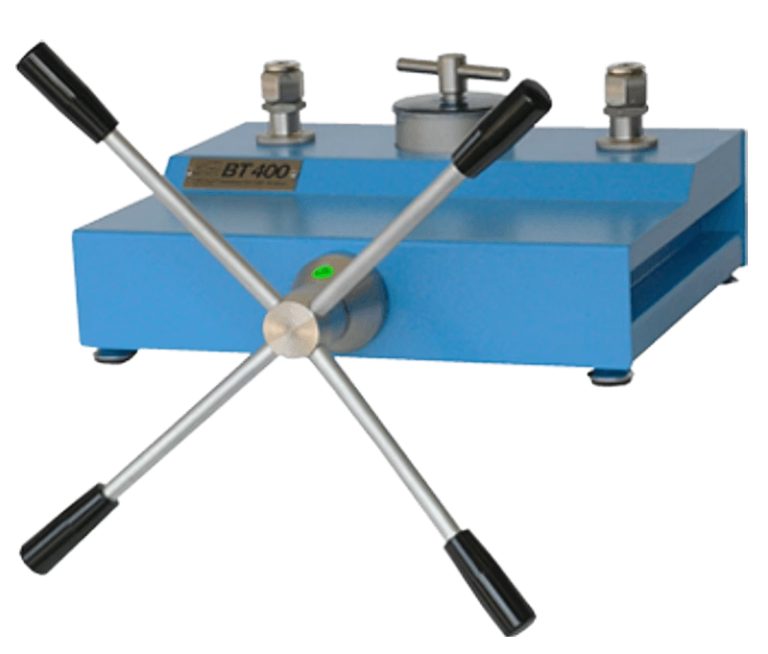

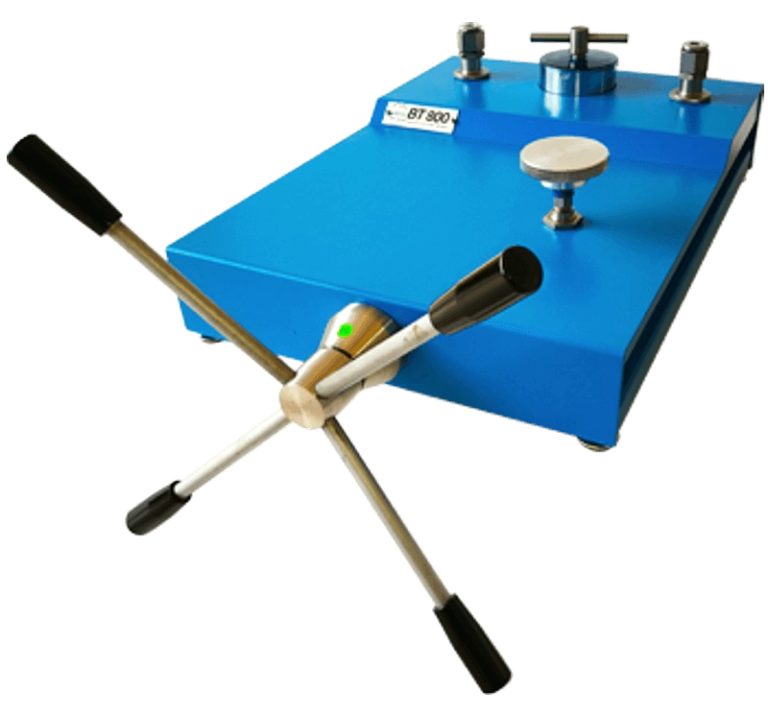

Leitenberger BT400-OX + BT800-OX
Photo Leitenberger BT400-OX + BT800-OX Description of LR-Cal BT400-OX + BT800-OX Specifications LR-Cal BT400-OX + BT800-OX Accessories for LR-Cal BT400-OX + BT800-OX Prices for LR-Cal BT400-OX + BT800-OX User Manual for Leitenberger BT400-OX + BT800-OX Related instruments to Leitenberger BT400-OX + BT800-OX
Made in Germany. brand Leitenberger, model BT400-OX + BT800-OX
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $2360
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The LR-Cal BT400-OX and LR-Cal BT800-OX pressure comparison test pumps are used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments (for oxygen applications) of all types by means of comparison measurements. These pressure tests can take place stationary in the laboratory or workshop, but also on site at the measuring point.
If the pressure gauge to be tested and a sufficiently accurate reference pressure gauge are connected to the LR-Cal BT400-OX or LR-Cal BT800-OX pressure comparison test pump, the same pressure acts on both gauges when the pump is actuated. By comparing the two measured values at any pressure values, the measuring accuracy can be checked or the pressure gauge to be tested can be adjusted.
The LR-Cal BT400-OX and LR-Cal BT800-OX pressure comparison testers (spindle pumps) are equipped with a finely actuated spindle wheel for exact approaching of the measuring points. The LR-Cal BT400-OX and LR-Cal BT800-OX pressure comparison test devices require only a fairly small amount of force.
Both pressure comparison test pumps are to be operated with distilled water. They are cleaned, free of oil and grease, and therefore ideal for testing pressure gauges for oxygen applications.
| Type | LR-Cal BT400-OX | |
| Generation of pressure | [bar] | up to 400 |
| System is tested at | [bar] | 600 |
| Volume | [cm³] | 76 |
| Volume changement per spindle turn | [cm³] | approx. 2 |
| Thread length of spindle | [mm] | approx. 160 |
| Needed force | [Nm] | at 50 bar approx. 9.8 |
| Dimension | [mm] | 450 x 360 x 300 (without star handle) |
| Weight | [kg] | 14 |
| Order-Code | BT400-OX |
| Photo | Model | Description |
|---|---|---|
 |
HAP-02 | Hand suction pump, significantly facilitates the removal of the operating liquid from the pressure comparison test pump. NOT cleaned free of oil and grease. |
 |
BLINDSTOPFEN-G12-VA | Blind plug 1/2″ BSP made of stainless steel for shutting off a pressure port. |
 |
LSP-ADAPTER-SET | Stainless steel thread adapter set for pressure connection
1/2″ BSP m x 1/4″ BSP female |
| Model | Description | Price |
|---|---|---|
| BT400-V | Hydraulic operated bench type pressure comparator (spindle pump) PN 400 bar, for aggressive media (SKYDROL, brake fluid, etc.) | 2360 $ |
| BT400-OX | Hydraulic operated bench type pressure comparator (spindle pump), free of oil, suitable for Oxygen | 2360 $ |
| BT800-OX | Hydraulic operated bench type pressure comparator (spindle pump),free of oil, suitable for Oxygen, pressure up to 800 bar | 3170 $ |
| HAP-02 | Hand pump for simultaneous suction and filling of fluids Volume 125 ml, with 2 hoses each 0.5 m | 183 $ |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger BT400-OX + BT800-OX using the special form.
You can buy Leitenberger BT400-OX + BT800-OX in Latvia at a price starting from2360 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. Leitenberger BT400-OX + BT800-OX price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
