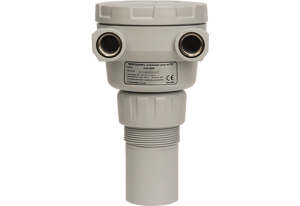

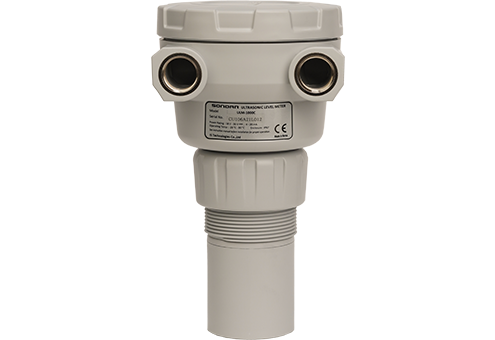

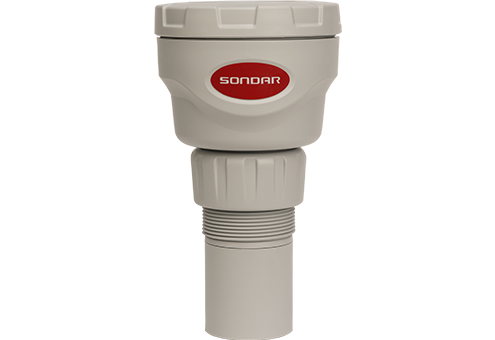

It is a non-contact ultrasonic water level gauge with an integrated sensor and controller design. The user-centered design makes it easy to operate and requires less installation time.
Made in South Korea. brand ISTEC, model ULM-1000C
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

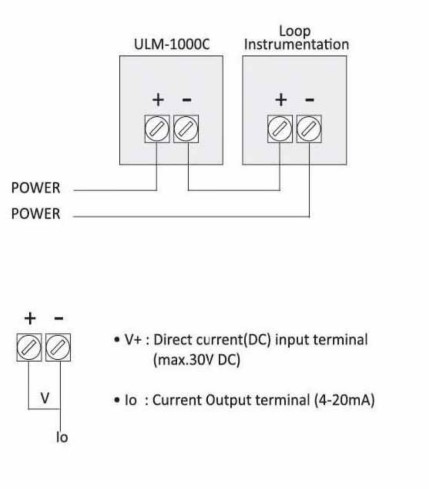

It offers a measuring range of up to 6 meters and operates on a 2-wire DC 24V loop-powered system. Designed with user convenience in mind, the ULM-1000C allows for easy operation and quick installation.
It also offers simplified maintenance, helping to reduce operational costs. Its optimized quality makes it suitable for a wide range of field applications, enabling efficient level monitoring and stable process operation on site.
Features

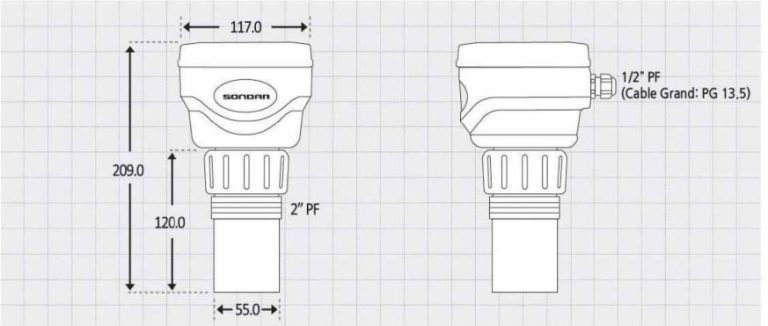

| Dimensions | 117(D)×209(H) mm |
| Connection size | 2″ PF |
| Weight | Approx. 1.5Kg |
| Housing material | Polypropylene |
| Sensor material | Polypropylene |
| Waterproof rating | IP67 |
| Operating temperature | -20℃~80℃ |
| Operating pressure | 2 Bar |
| Measuring range | 0.3~6m |
| Accuracy | 0.2% of measuring range |
| Resolution | 1mm |
| Beam angle | 8° |
| Response speed | 0.1m/min ~ 100m/min (adjustable) |
| Temperature compensation | Built-in temperature sensor |
| Analog output | 4~20mA into max 750Ω |

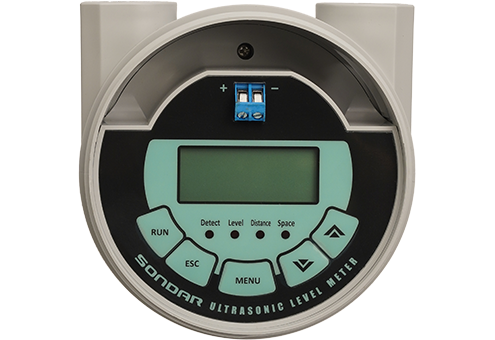

| Display method | 5 Digit Numeric LCD |
| Power supply | DC 20~30V |
| Current consumption | Below 0.021A |
| Certification | CE |
| ULM-1000C Ordering Code | |
|---|---|
| Measuring Distance | |
| 1 | 6 meters |
| Power Supply | |
| B | DC 12 to 30V (Standard) |
| Communication Type | |
| N | none (Standard) |
| 1 | HART (Planned) |
| 2 | Wireless HART (Planned) |
| Flange | |
| 0 | none |
| 1 | 80A |
| 2 | 100A |
| 3 | 150A |
| 4 | 200A |
| T | Custom value |
| Flange Standard | |
| D | DIN |
| A | ANSI |
| J | JIS |
| PVC Nut | |
| 2 | 2-1/2″ PVC Nut |
| ULM10C- | |
You can request the necessary certificates, documentation, instructions and user guide for ISTEC ULM-1000C using the special form.
You can buy ISTEC ULM-1000C in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. ISTEC ULM-1000C price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
