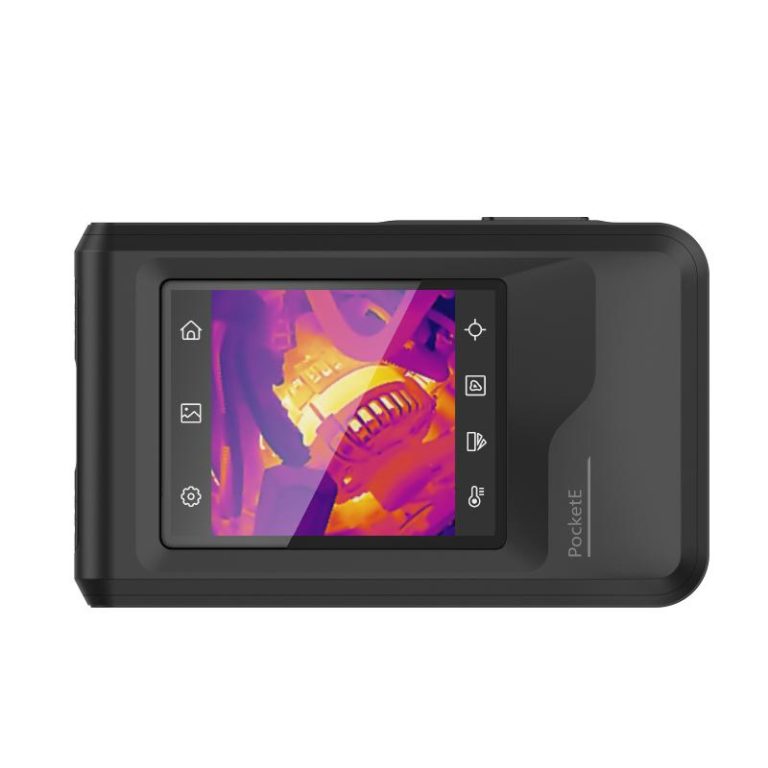

HIKMICRO PocketE Handheld Thermal Imaging Camera 96×96 -20°C to 350°C IP54

Description of HIKMICRO PocketE

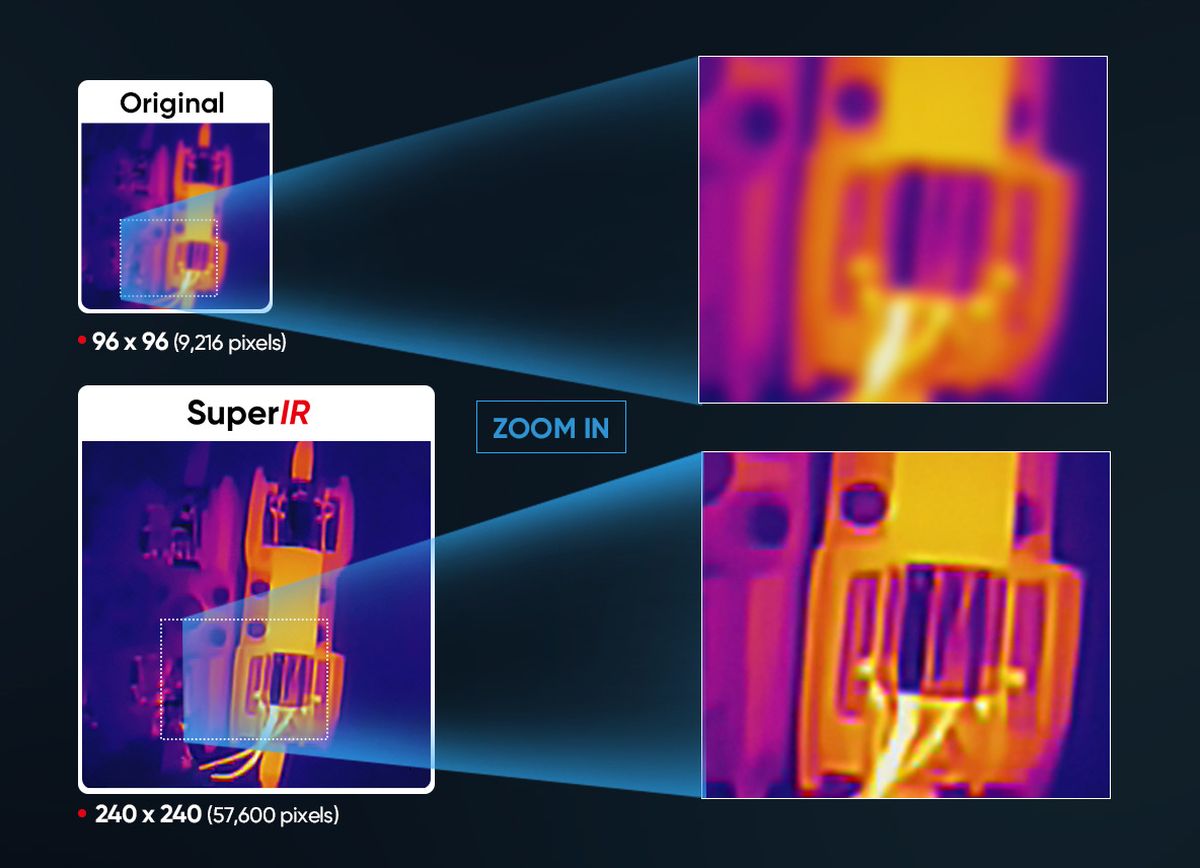

Enhanced Thermal Clarity with SuperIR – Powered by HIKMICRO SuperIR image enhancement technology, it upscales thermal images from 96 × 96 (9,216 pixels) to 240 x 240 (57,600 pixels) resolution when viewing live with 25 Hz fast image frequency and capturing photos.

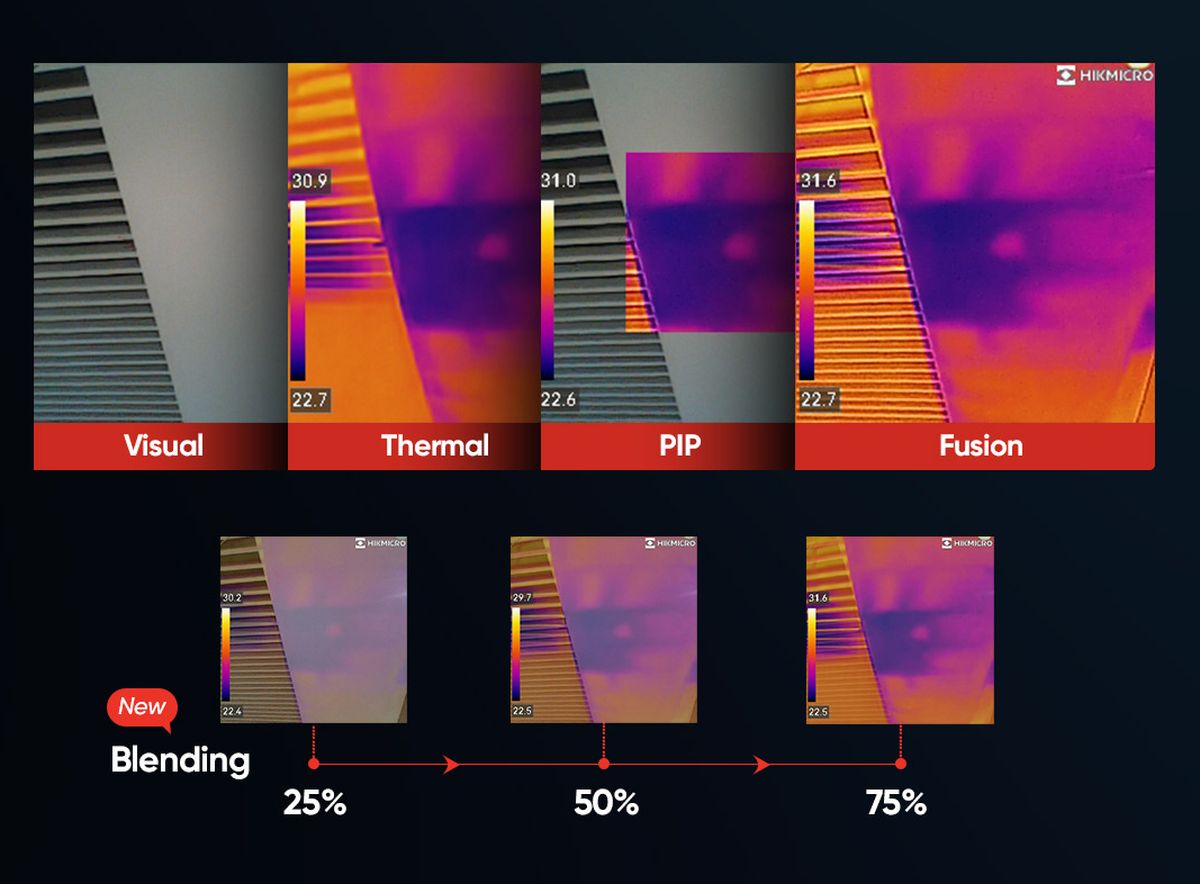

Dual-camera Thermal Imager – Built-in IR camera and visible camera, allow you to switch 5 image modes (Thermal, Visual, PIP, Fusion, and Blending). “Fusion” blends key details from a 0.3M Pixels visual camera to the IR image, adding extra detail and clarity. “Blending” blends partially transparent infrared and visible images into a single view and allows you to adjust the transparency. “PIP” overlays a fixed section of a thermal image onto a digital photo to clarify anomaly locations.

Portable Pocket-sized with Touch Screen – Easy to carry and hold. Perfectly fit in pockets and any toolboxes. View the details of your images on the large, intuitive LCD 3.5″ touch screen.

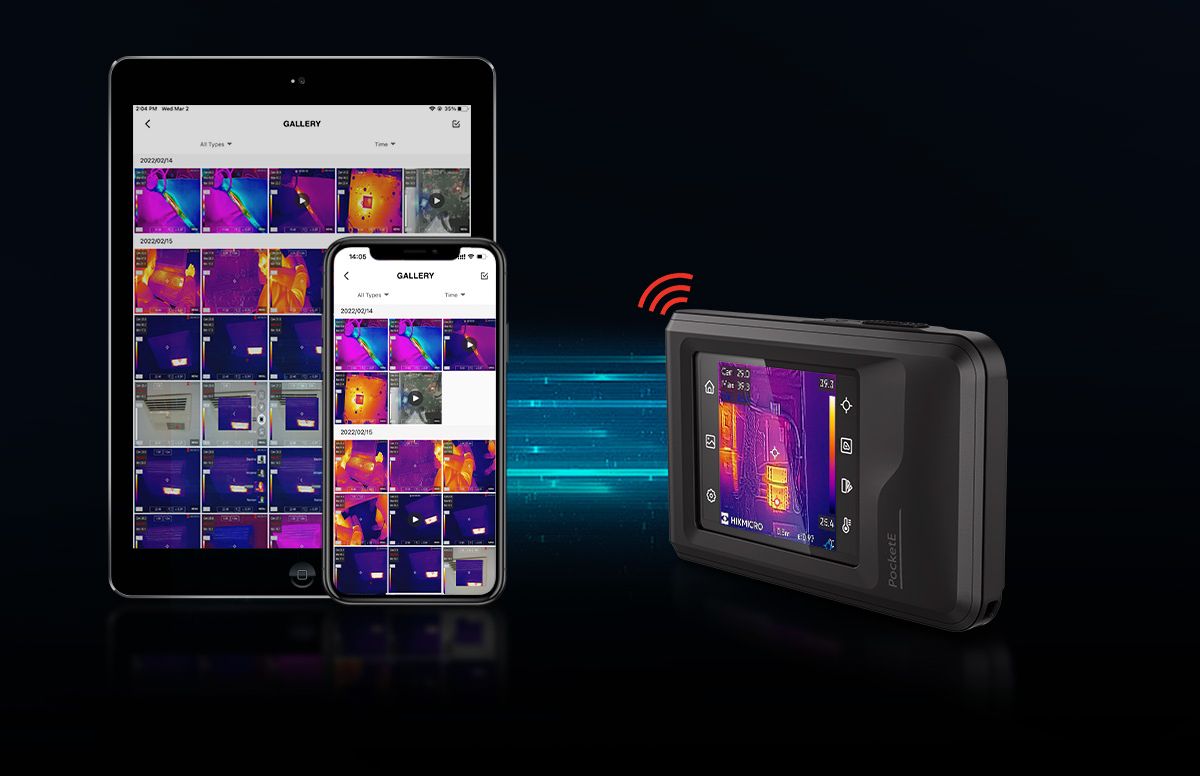

Wireless Connectivity – Screen stream and download on-device images with Wi-Fi to your smartphone or tablet with HIKMICRO Viewer.

Thoughtful Functions for Efficient Workflow

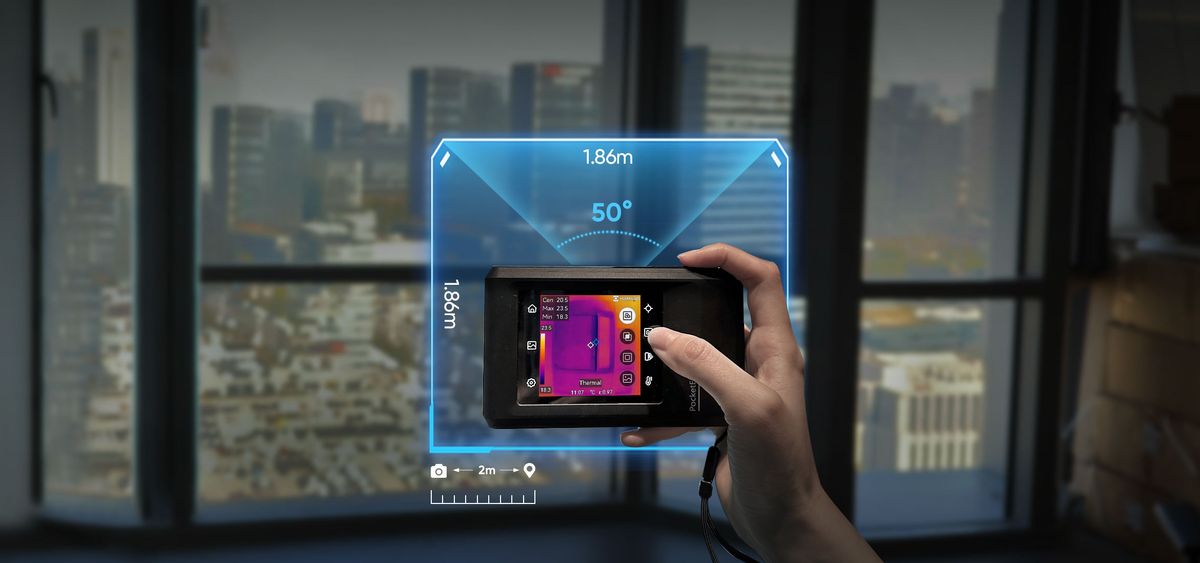

50° Wide Angle Lens – Scan large areas quickly with the 50° wide angle lens to find issues like water leaks, insulation issues, and air infiltration.

Full-screen Precise and Wide Temperature Measurement – Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 350°C ( -4°F to 752°F), with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.

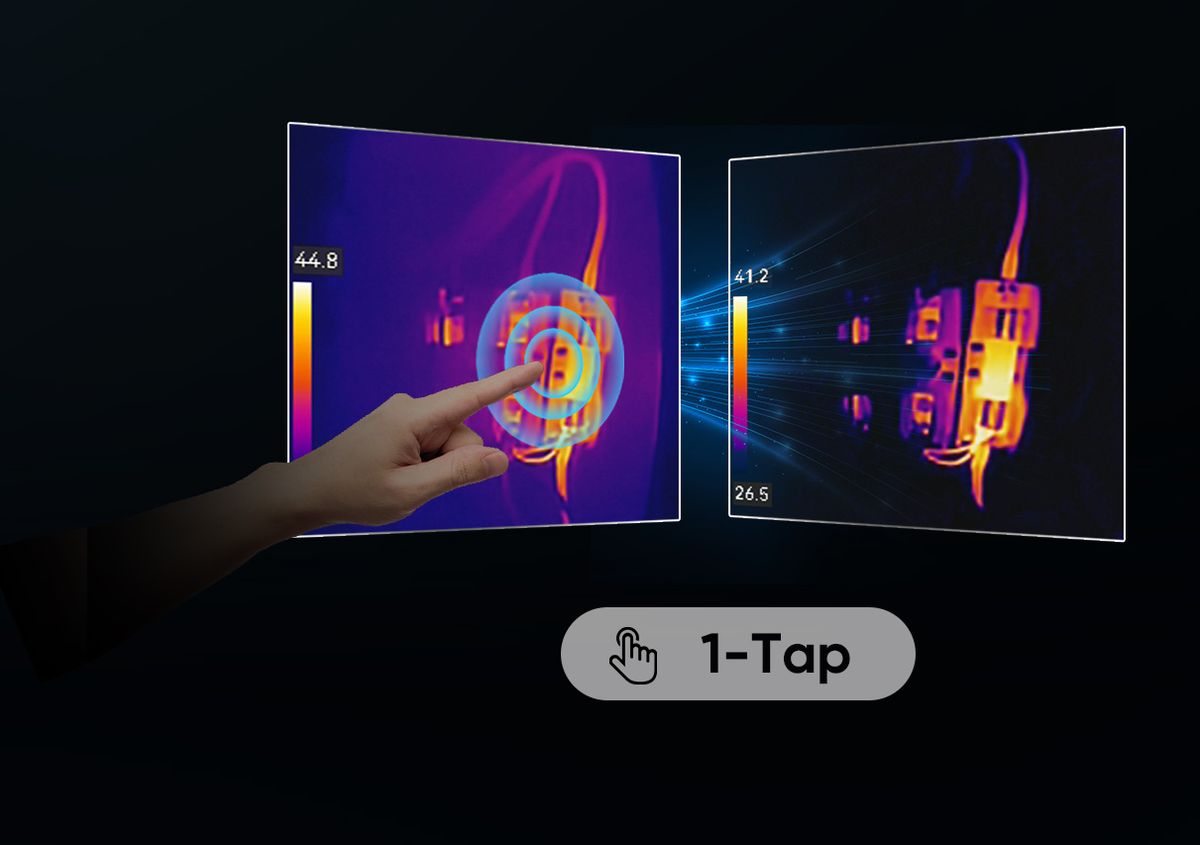

1-Tap Level & Span – Just tap an area of interest on the screen and it instantly increases image contrast and highlights potential problems.

1-Click IR and Visual Image Storage – Saving visual and thermal images simultaneously in one click allows you efficient workflow and a fast inspection report.

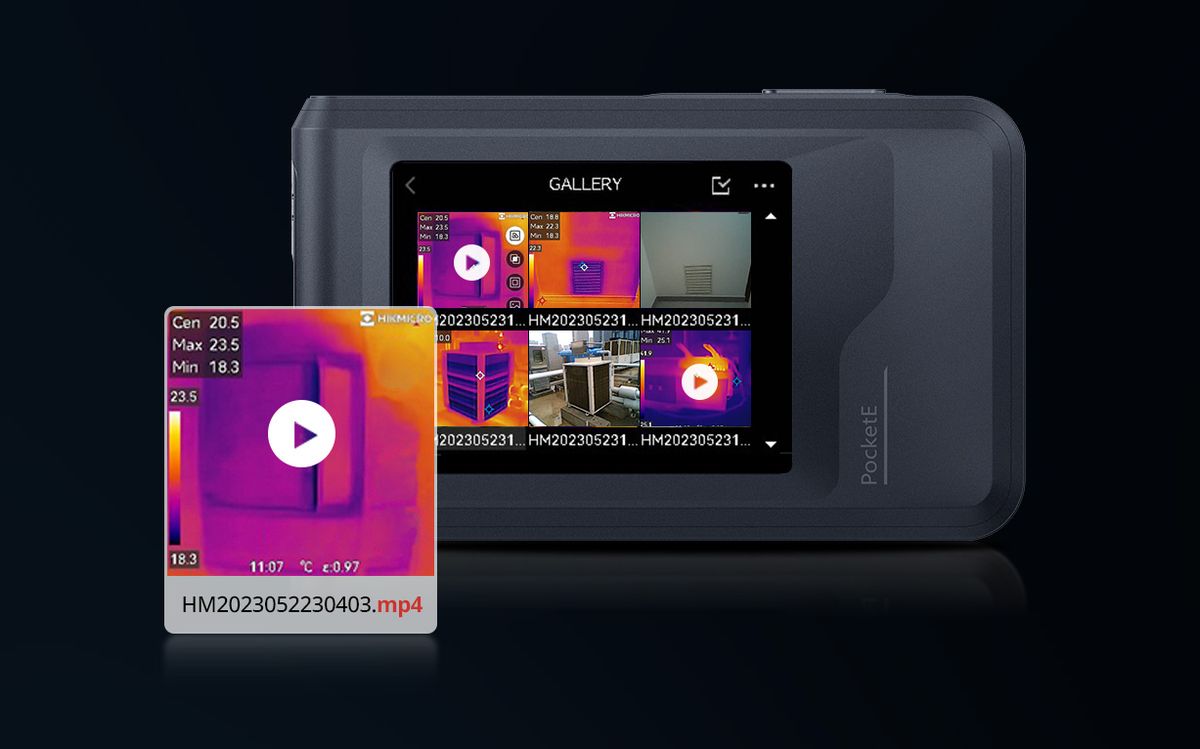

On-camera Recording – The built-in 4GB eMMC flash storage can store approx 30,000 standard thermal/visual images or 20 hours of MP4 video. And, it allows onboard recording and playback.

Applications

• Electrical Cabinet
• Check Machine Temperature
• Building Envelope
• HVAC Inspection

Technical specifications of HIKMICRO PocketE

Package Contents HIKMICRO PocketE

• Thermal Imager with Wrist Strap
• USB 2.0 A to USB Type-C Cable
• Quick Start Guide
• Calibration Certificate

Model Number:

• HM-TP40-1AQF/W-PocketE
• HM-TP40G-1AQF/W-PocketE

Warranty for HIKMICRO PocketE

The warranty for the HIKMICRO PocketE thermal imager is:

• 3 years for components
• 10 years for the infrared sensor
• 2 years for removable batteries, if applicable

The warranty for additionally purchased accessories is:

• 2 years for removable batteries
• 1 year for interchangeable lenses, chargers, brackets, and pouches

Extended Warranty Service

The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.

HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.

You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.

The extended warranty does not included the thermal detector and battery.

More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».

Calibration of HIKMICRO PocketE

More information is available on the page «HIKMICRO Thermal Imager Calibration Services».
