Made in China. brand HIKMICRO, model Mini3R
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from 1100 €
In stock
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

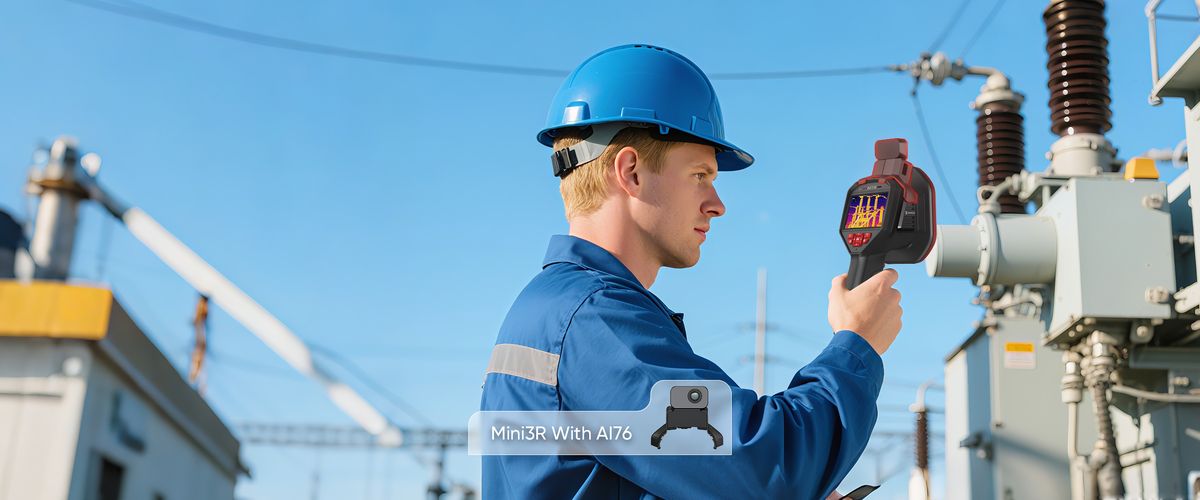

Combine Acoustic Imaging and Thermal Imaging in One Tool

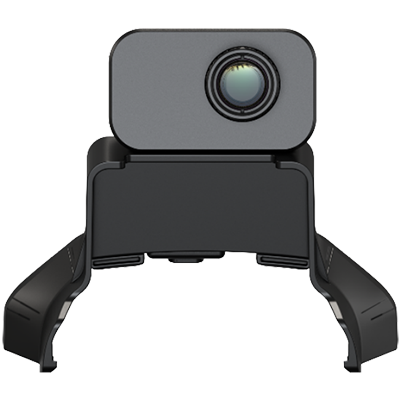

The Mini3R Thermal Imager is a product suite that complements Hikmicro’s acoustic imaging camera. Featuring a 384×288 IR resolution, it enables full-screen infrared temperature detection with high accuracy. Its adjustable insertion direction and rotatable lens for focus adjustment allow seamless integration with the acoustic imaging camera, offering engineers a professional, dual-function solution for infrared and acoustic imaging detection.
| Infrared Image | |
| IR Resolution | 384×288 (110,592 pixels) |
| NETD | ≤ 35 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 10 mm |
| F-number | F1.0 |
| Field of View (FOV) | 26° × 19° |
| Focus Mode | Manual Focus |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 650°C (-4°F to 1202°F) |
| Accuracy | Max. (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot |
| Level and Span Mode | Auto/Manual |
| General | |
| Power Consumption | 550 mW |
| Protection Level | IP54 |
| Drop Test Height | 1 m (3.28 ft) |
| Working Temperature Range | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Weight | Approx. 145 g (0.32 lb) |
| Dimension | 123.37 × 107.57 × 63.09 mm (4.86 × 4.24 × 2.48 in) |
| Interface | USB-C |
Model Number: HM-TJ33P-10RF-Mini3R
The warranty for the HIKMICRO Mini3R thermal imager is:
The warranty for additionally purchased accessories is:
Extended Warranty Service
The Extended Warranty Service is a protection program designed to extend the coverage period of your products beyond the original warranty. This service provides continuous quality assurance and professional support, safeguarding your products against unforeseen failures after the expiration of the standard warranty.
HIKMICRO will provide an additional 180-day warranty if consumers register the products in their HIKMICRO Account within 30 days from the date of purchase. To verify the accurate purchase date, consumers may be required to submit the original invoices.
You may apply for the Extended Warranty Service for 1 or 2 years within six months from the product’s purchase date or registration date (whichever occurs later), and a one-time renewal is permitted within 30 calendar days after the expiration of the initial Extended Warranty.
The extended warranty does not included the thermal detector and battery.
More details about the warranty terms and conditions can be found on the page «HIKMICRO Thermal Imager Warranty».
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO Mini3R using the special form.
You can buy HIKMICRO Mini3R in Latvia at a price starting from 1100 € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO Mini3R price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
