Made in China. brand HIKMICRO, model M60
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $3700
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

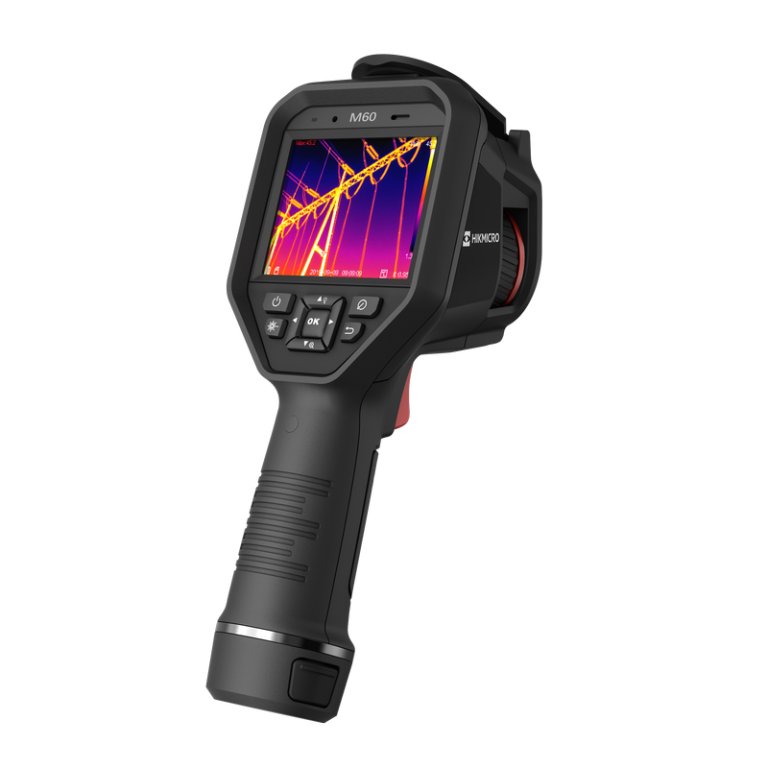

HIKMICRO M60 handheld camera is specially designed for temperature measurement. It’s equipped with a 640 × 480 resolution thermal detector. It helps the staff to quickly find the high-temperature targets in the environment. Meanwhile, it provides assistance with decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc.
Features
Advanced thermal imaging camera with full function analysis
| Model | IR Resolution | Super/R™ | SuperSCENE™ | Focus Mode | FOV |
|---|---|---|---|---|---|
| M11 | 192 * 144 | ✓ | – | Manual Focus | 18.8° * 14.1° |
| M11W | 192 * 144 | ✓ | – | Focus Free | 37.2° * 27.8° |
| M20 | 256 * 192 | ✓ | – | Manual Focus | 25° * 18.8° |
| N20W | 256 * 192 | ✓ | – | Focus Free | 50° * 37.2° |
| M31 | 384 * 288 | ✓ | ✓ | Manual Focus | 41.1° * 30.5° |
| M31T | 384 * 288 | ✓ | – | Manual Focus | 41.1° * 30.5° |
| M40 | 640 * 480 | ✓ | ✓ | Manual Focus | 41.9° * 33.3° |
Enhanced Image Quality with SuperIR – Owered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.
Manual Focus – Adjusting the manual focus ring allows to see objects clearly on targets as close as 0.1 m (0.33 ft) and still capture sharp images and more accurate results from further away. (M11W, M20W features a focus-free lens.)
Interchangeable Battery System – HIKMICRO M series Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections.
Complete Image Annotations – Quickly annotate your images with voice, text, picture note QR codes, tag note, make your work more efficient with M series.
1-Tap Level & Span – HIKMICRO M series supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems. Touchscreen, instantly improving image contrast and highlighting potential problems.
5 Image Modes – Thermal, Fusion, PIP, Visual and Blending modes to suit your preferred.
Precise, Flexible, Stable Microscope Stand – Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis.
Rugged & Durable Design – HIKMICRO M series with IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use.
Laser Pointer – The Laser Pointer with HIKMICRO M series helps show the position of the center point on actual object. Analyze, share images, and generate reports in real-time on-site.
HIKMICRO Viewer – Connect HIKMICRO Viewer app via Wi-Fi to transfer photos or videos from camera to mobile device. Analyze, share images, and generate reports in real-time on-site.
HIKIMICRO Analyzer – HIKMICRO Analyzer is a powerful and free licensed PC software designed to help users manage and analyze thousands of thermal images and videos and quickly create professional reports. Compatible with files from HIKMICRO handheld thermal cameras, providing the features you need to simplify your workflow and increase your productivity.
Application Scenarios –
Promotional Video
| Infrared Image | |
| IR Resolution | 640 x 480 (307,200 pixels) |
| SuperIR | 1280 x 960 (1,228,800 pixels) |
| NETD | < 35 mK (@ 25°C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 17 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 15 mm |
| F-number | F1.0 |
| Field of View (FOV) | 41.9° × 33.3° |
| Spatial Resolution (IFOV) | 1.13 mrad |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Focus Mode | Manual Focus |
| Image Display | |
| Visual Camera | 3264 × 2448 (8 MP) |
| Display | 640 × 480 Resolution, 3.5″ LCD Touch Screen |
| Screen Brightness | Manual |
| Digital Zoom | 1.0x to 8.0x continuous |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Focus Mode Palette | Above/Below/Interval |
| Color Alarm | Above/Below/Interval/Insulation |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 650°C (-4°F to 1202°F) |
| Accuracy | Max (±2°C/3.6°F, ±2%) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 10 spots, 1 line, 5 rectangles, and 5 circles |
| Level and Span Mode | Auto/Manual/1-Tap Touch-screen |
| Data Storage and Communication | |
| Storage Media | Removable 64 GB Micro SD Card |
| Image Storage Capacity | Approx. 35,000 Images |
| Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters |
| Video Storage Capacity | Approx. 54 hours |
| Video File Format | MP4 video and radiometric video |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 |
| USB Interface | USB Type-C |
| LED Light | Yes |
| Laser | Yes, Class II, Wavelength: 650 nm; Power: < 1 mW |
| Battery Type | Interchangeable and rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Approx. 4 hours fully charged |
| Power Saving Mode | No |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Safety | IEC 61010-1 |
| EMC | EN55032, EN61326-1, EN61000-3-2,EN61000-3-3,EN IEC 61000-6-2, EN IEC 61000-6-3 |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -20°C to 50°C ( -4°F to 122°F) |
| Relative Humidity | < 95% non-condensing |
| Storage Temperature Range | -20°C to 70°C (-4°F to 158°F) |
| Weight | Approx. 686 g (1.51 lb) |

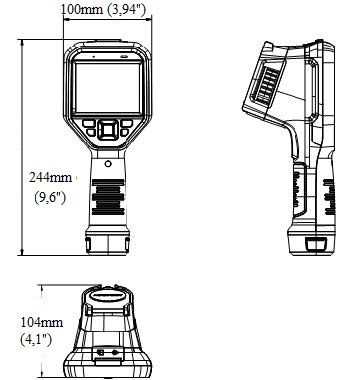

| Dimension | 244 × 100 × 104 mm (9.6 × 3.9 × 4.1 in) |
| Tripod Mounting | UNC ¼”-20 |
You can request the necessary certificates, documentation, instructions and user guide for HIKMICRO M60 using the special form.
You can buy HIKMICRO M60 in Latvia at a price starting from3700 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. HIKMICRO M60 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
