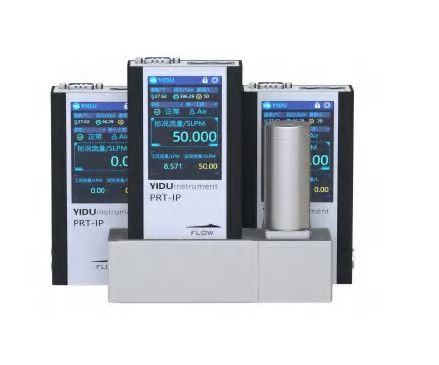

Pressure and flow controller with single-screen control. Measurement resolution up to 10 Pa and control accuracy ±0.15%~±0.3% of full scale (F.S.). Supports output of key parameters simultaneously with pressure control.
Made in China. brand YIDU, model SPC
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
Features
Principle Introduction
The pressure controller achieves precise pressure regulation by employing a built-in high-accuracy absolute pressure sensor for real-time measurement and implementing closed-loop negative feedback control via a solenoid proportional valve. An integrated flow conditioning module stabilizes gas flow regimes to minimize measurement fluctuations, while optionally outputting parameters like temperature and flow rate upon request. By adjusting the spatial configuration between the absolute pressure sensor and proportional valve, the system seamlessly switches between upstream or downstream pressure control modes. Our proprietary absolute pressure sensor delivers exceptional performance with <10 Pa resolution and sub-millisecond response time, ensuring rapid and accurate pressure measurements. Application
Precision pressure control for diffusion sources in semiconductor fabrication; backside cooling gas pressure management for silicon wafers; intake pressure regulation in small fuel cell stack testing; and analytical chamber pressure control in instrumentation systems.
| Model | SPC100 | SPC200 |
| Pressure range | 2 kPaA ~ 2 MPaA | 2 kPaA ~ 2 MPaA |
| Accuracy | ±0.3%F.S. | ±0.15%F.S. |
| Repeatability | ±0.2%F.S. | |
| Pressure shift | Zero：≤±0.2%F.S./100 KPa； Span：≤±0.2%F.S./100 Kpa (Benchmark 100 KPaA) |
Zero：≤±0.05%F.S./100 KPa； Span：≤±0.05%F.S./100 Kpa (Benchmark 100 KPaA) |
| Temperature shift | Zero：≤±0.05% F.S./℃； Span：≤±0.05% F.S./℃（Benchmark 25℃） |
Zero：≤±0.02% F.S./℃； Span：≤±0.02% F.S./℃（Benchmark 25℃） |
| Operating range | 1% ~ 100%F.S. | |
| Valve type | N/C (Normally closed) | |
| Control type | Control upstream or downstream pressure | |
| Full scale flow | 0.5 SCCM ~ 5000 SLPM | |
| Warm-up time | ≤1 s | |
| Operating temperature | -20°C ~ 60°C | |
| Proof pressure | 2.5 MPaA | |
| Supply voltage | 24 VDC (±20%) | |
| Installation | None | |
| Process connectors | G-Thread | |
| Wetted materials | SUS316L | |
| Sealing material | O-Ring Seal: Fluoroelastomer | |
| Commumication mode | RS485, 4-20 mA/0-5 V | |
You can request the necessary certificates, documentation, instructions and user guide for YIDU SPC using the special form.
You can buy YIDU SPC in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. YIDU SPC price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
