TRIO.BAS TRIO.GAS Microbiological Compressed Air and Gas Sampler

Description of TRIO.BAS TRIO.GAS

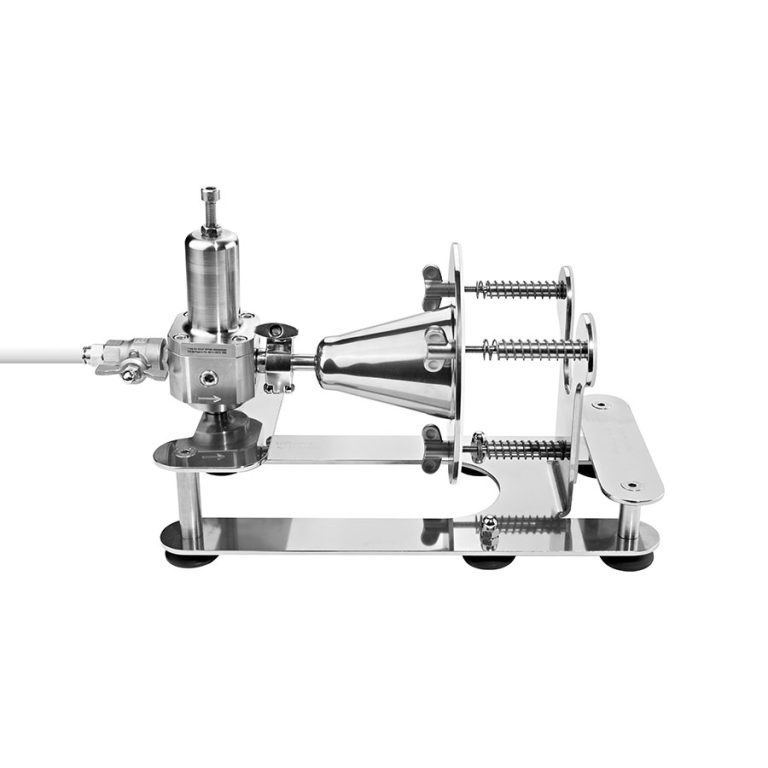

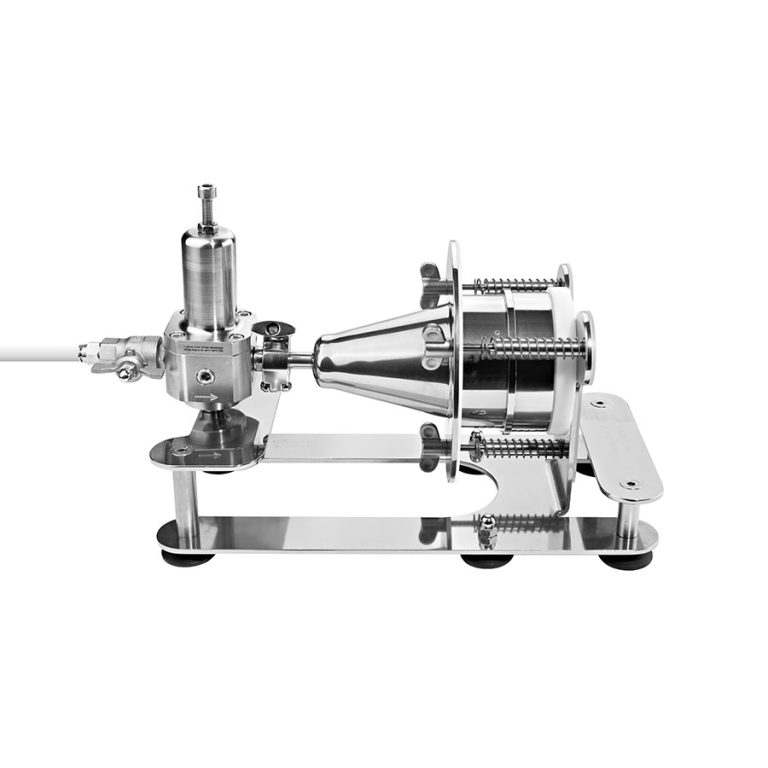

System is designed for microbiological quality control of compressed air and gases used in cleanrooms. Used in conjunction with ASPI GAS chamber, TRIO.BAS or AIRBIO instruments. TRIO.GAS system guarantees absence of contamination in air contacting with product in sterile or aseptic production (e.g., in cleanrooms).

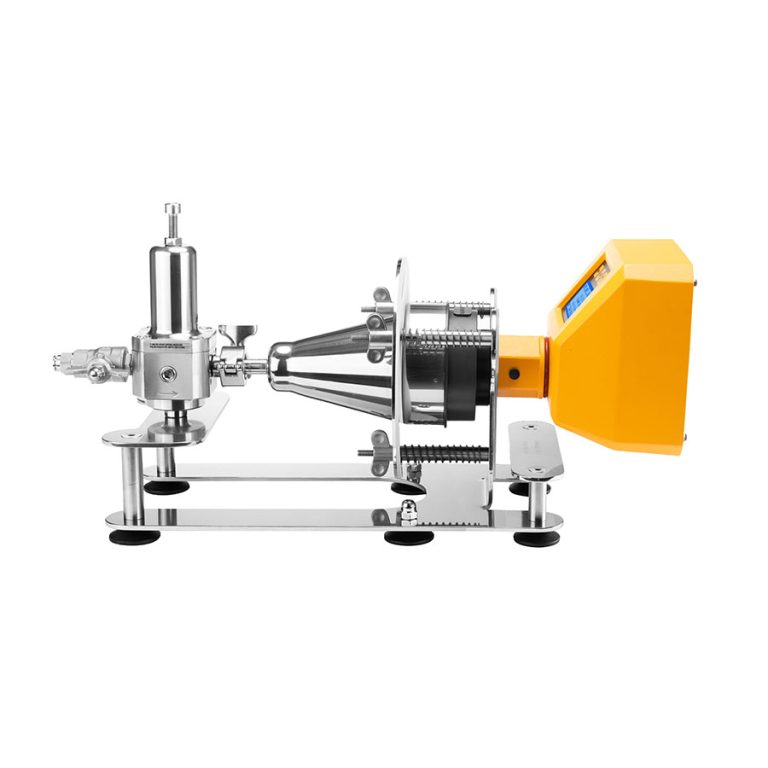

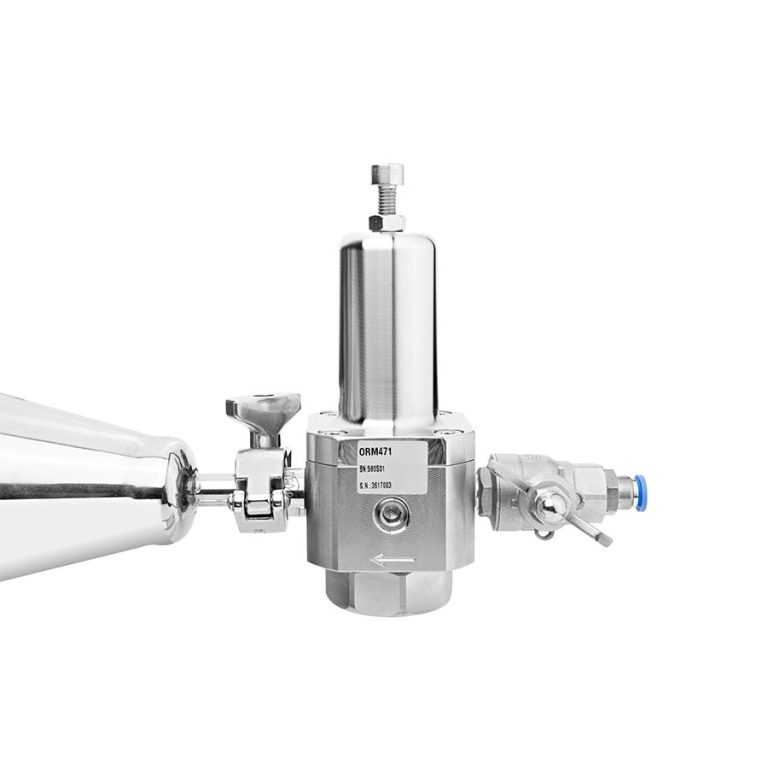

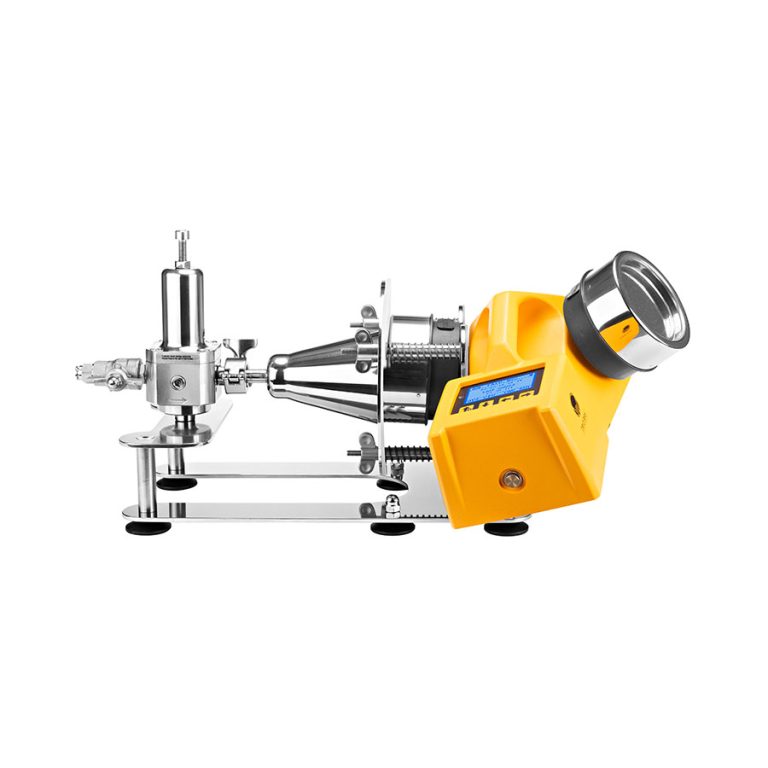

Before supply to TRIO.BAS sampler, compressed air flow is regulated by autoclavable valve. All data is transferred via Bluetooth (when used with TRIO.BAS sampler) to tablet/smartphone or via Bluetooth to PC through specialized software in compliance with GMP and GLP.

Features

• Operates only at 100 l/min
• Ready for use: no preliminary setup required, valve is pre-calibrated to 100 l/min
• Compatible with ASPI GAS chamber or with any air sampler at 100 l/min
• Suitable for compressed air and nitrogen
• Calibration certificate is provided annually
• Gas inlet pressure: 1–6 bar
• System complies with ISO 8573-7, ISO 14698-1, EN 17141 standards and FDA requirements
• Explosion-proof version: Zone 2 (II 3G Ex iC IIC T4 Gc IP55)
• Suitable for 90 mm Petri dishes or 55 mm Contact plates
• Completely fabricated from AISI 316 stainless steel
• All components are autoclavable without need for disassembly
• No glass valves and counters — damage risk is eliminated

Application:

• Pharmaceuticals
• Cleanrooms
• Biotechnology
• Fermentation
• Medical devices
• Food industry
• Dairy industry, beverage production
• Agro-industry
• Catering
• Cosmetics
• Stem cells

When working with TRIO.BAS sampler, sampling time is controlled by sampler software. When working with ASPI GAS chamber, test is performed manually, time is regulated by timer.

Technical specifications of TRIO.BAS TRIO.GAS

Accessories for TRIO.BAS TRIO.GAS

Photo	Model	Description

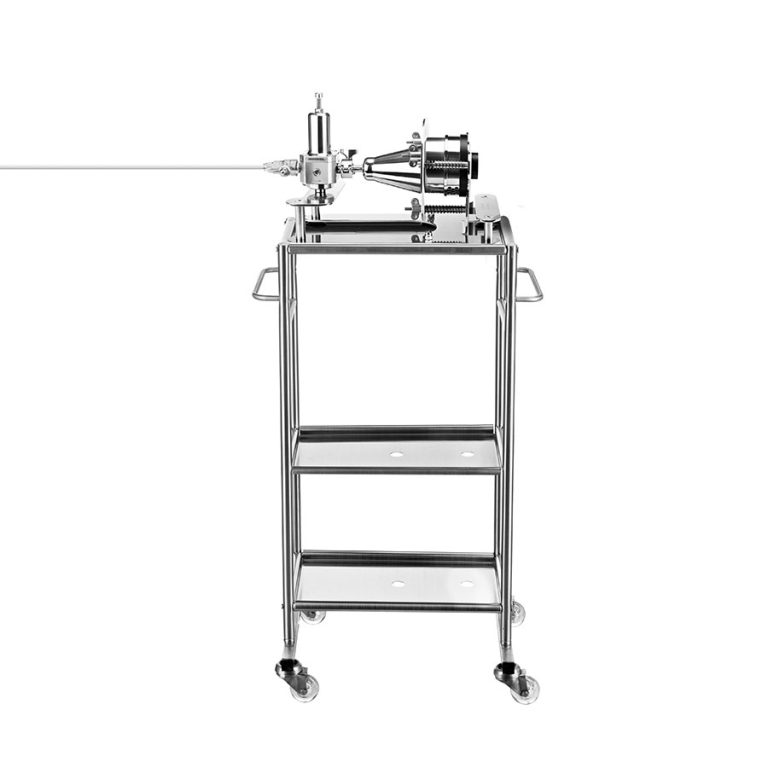

	371	Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use.
	381	Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room
	180	IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device’s aspiration heads.
	175	Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP.

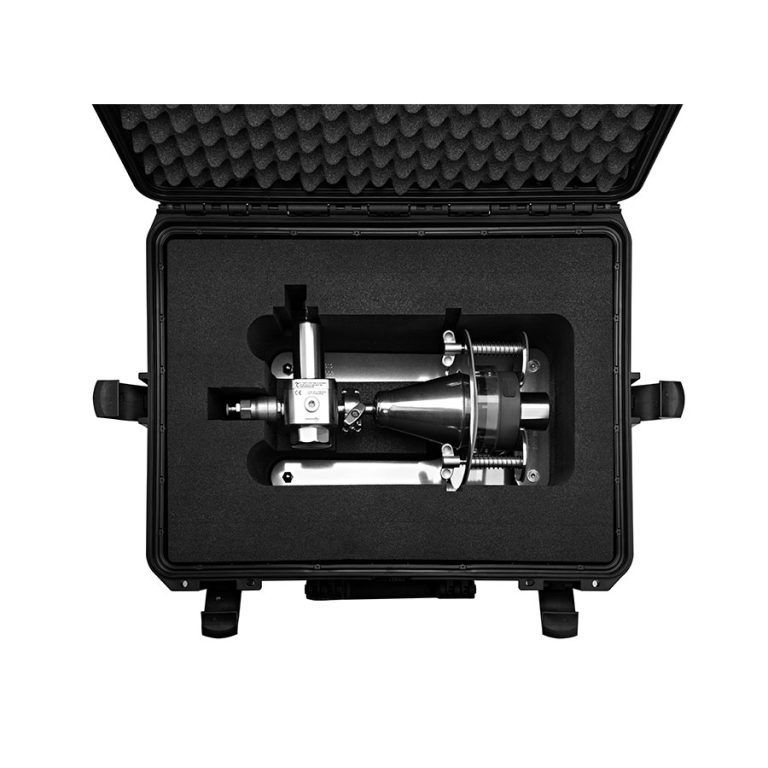

	398	Case with high performance characteristics. Ensures safe transportation of devices.
	509	IQ (installation qualification) and OQ (operational qualification) documents for: TRIO.GAS
	508	PQ (performance qualification) documents for: TRIO.GAS
	340	Daily Shift sterile replacement suction head for contact cups (55 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
	341	Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs

Expand Table

Prices for TRIO.BAS TRIO.GAS
