TRIO.BAS MULTIFLEX 1+2 Stationary Microbial Active Air Sampler

Description of TRIO.BAS MULTIFLEX 1+2

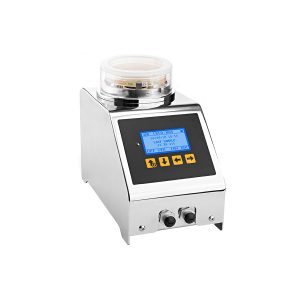

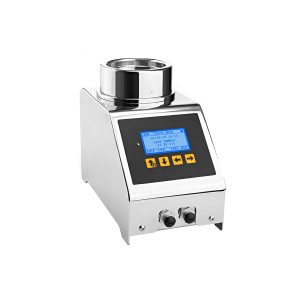

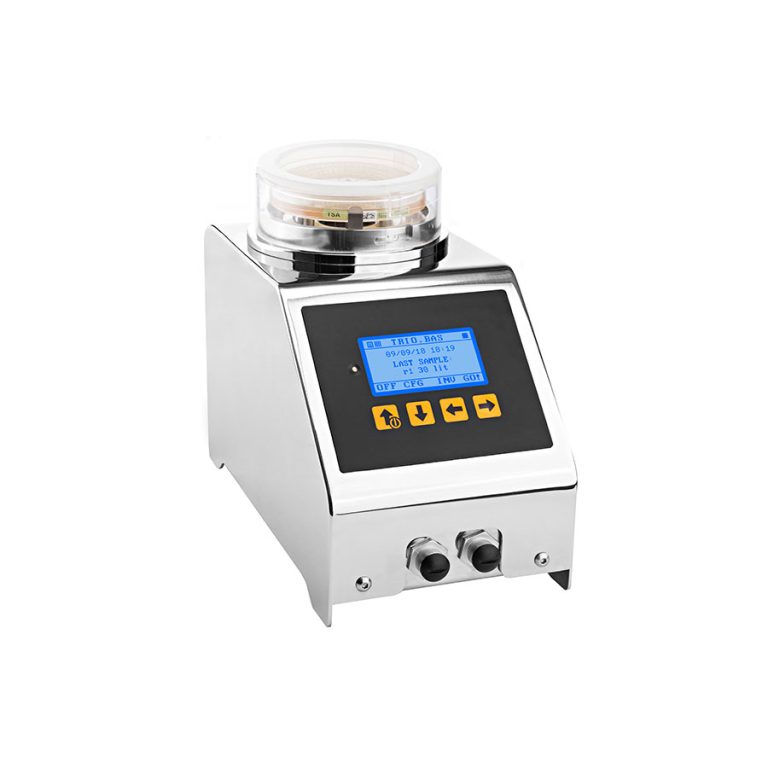

MULTIFLEX is a stainless steel control module with internal aspirating head, capable of performing sampling independently, without connection of external satellites. If necessary, connection of two additional independent external satellites is possible.

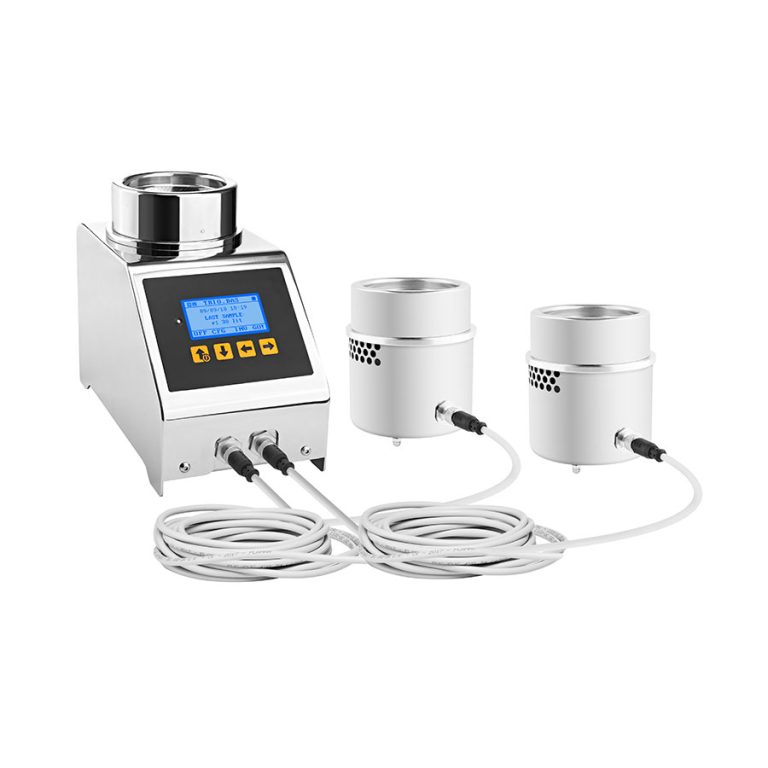

Two satellites are connected to the control module via electronic cable (from 5 to 20 meters length), ensuring system flexibility. The presence of multiple aspirating heads allows continuous microbiological environmental monitoring in compliance with regulatory requirements. Operation is possible both with standard satellites and with satellites equipped with TRI CLAMPS connections. These instruments are particularly suitable for pharmaceutical production where RABS or isolators are frequently used, and limited space does not allow use of standard air samplers. Sampling data can be exported for further analysis or inspector verification.

Satellite connection to command unit

Satellites can be connected to the command unit in two ways:

1. Flexible cable (code 265) up to 5 m length (standard), with possibility of custom cables up to 20 m length on request. Cable equipped with 4-pin male/female connectors. Compatible with all satellite types.
2. Hermetic wall pass-through in stainless steel (code 267). Provides sterile cable introduction through cleanroom barrier construction. Flexible cables not included. Designed for standard satellites only.

Features

• MULTIFLEX 1+2 air sampler and satellites are fabricated from AISI 316 stainless steel.
• Main users: pharmaceutical production, cleanrooms and biotechnology companies.
• Barcode module, using Bluetooth scanner, automatically registers operator, location and plates used during sampling. Data from scanner is transmitted directly to the instrument.
• Solution is particularly convenient for users employing plates with barcode or 2D-code (QR-code).
• Collected data is transferred via Bluetooth from sampler to PC or laptop (special software required).
• Data transfer to smartphone or tablet (Android) is also possible with subsequent export to PC.
• Cable data transfer is also available — particularly useful for organizations where security policy prohibits use of wireless communication.
• Instrument operation is possible in both manual and automatic mode.
• Battery charging is performed via cable connected directly to the air sampler.
• Air flow 200 l/min reduces operator time and sampling duration.
• Doubling of aspirated air volume allows reducing sampling time.
• Instrument allows monitoring of separate cleanrooms using one external control module. Cross-contamination risk is reduced, as satellites are placed stationary inside each room.
• Use of sterile disposable aspirating heads “Daily Shift” reduces contamination risk.
• Possibility of connecting 2 or 3 different aspirating heads allows simultaneous use of different culture media or performing sampling BEFORE process start (at rest), DURING (in operation) and AFTER cycle completion.
• LED indicator on the left side of display shows sampling status via different blinking frequency: delay wait, sampling in progress, sampling pause.

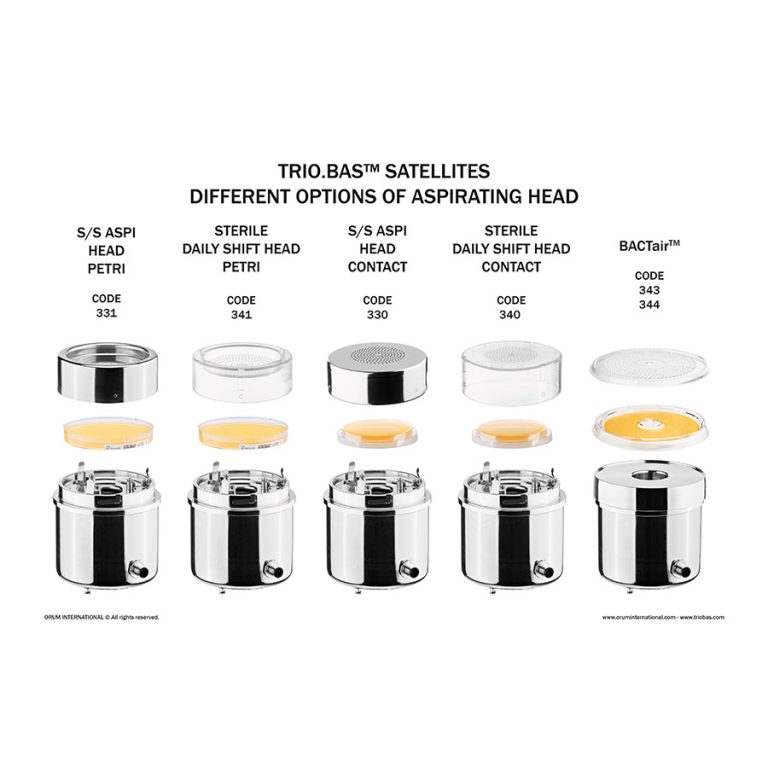

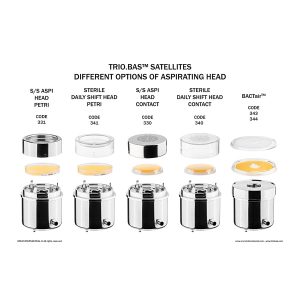

Satellites can be used with:

• 90 mm Petri dishes with stainless steel aspirating head
• 55 mm Contact plates with stainless steel aspirating head
• Sterile technopolymer “Daily Shift” aspirating heads
• BACTair™ disposable plates with culture media with built-in sterile aspirating head

Application

Pharmaceuticals, cleanrooms, biotechnology, fermentation, medical devices, cell technologies

Technical specifications of TRIO.BAS MULTIFLEX 1+2

Accessories for TRIO.BAS MULTIFLEX 1+2

Photo	Model	Description
	260	s/s satellite Contact plate without aspirating head, cover and cable
	261	s/s satellite Petri 90 plate without aspirating head, cover and cable
	320	Remote stainless steel unit with tri-clamp connection for contact cups (without suction head, cover, and cable).
	321	Remote stainless steel unit with tri-clamp connection for 90 mm Petri dishes (without suction head, cover, and cable).
	379	Mounting bracket for MULTIFLEX. Ideal for mounting at different heights and in hard-to-reach areas of clean rooms. Simple and stable design: the device can be easily attached to the bracket without screws.
	371	Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use.
	372	MAXI cart with multifunctional holder — stainless steel cart on wheels, complete with table holder and vertical pull-out support with hook. Dimensions: 25x35x70 cm (H) (height adjustment range: 100 to 210 cm). Designed for MONO, DUO, and TRIO models.
	381	Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room
	180	IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device’s aspiration heads.
	175	Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP.
	520	Ultra-lightweight and compact portable Bluetooth printer with high printing autonomy. Equipped with a paper end sensor and supports printing of the most common barcodes.

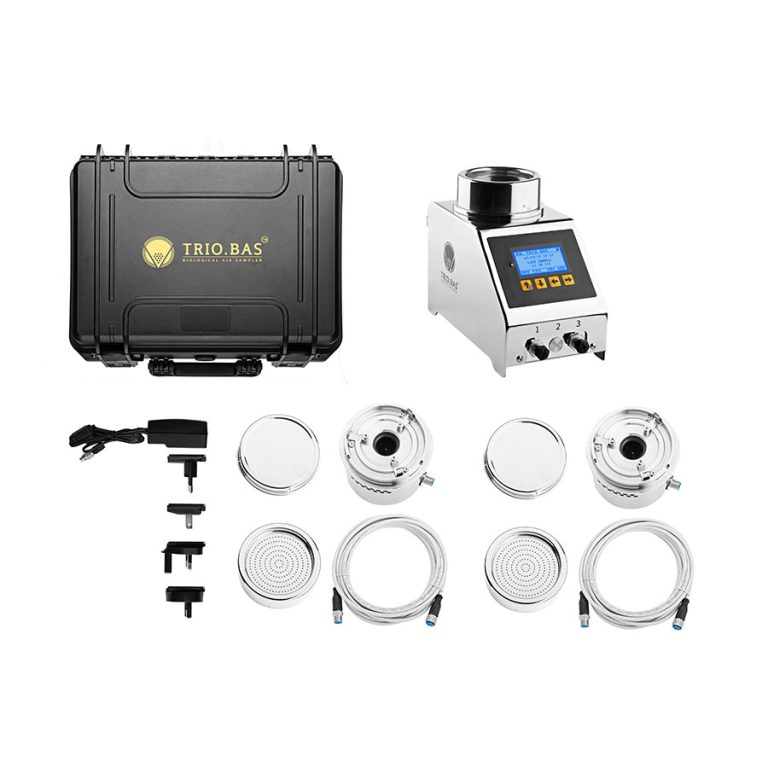

	395	Case with high performance characteristics. Ensures safe transportation of devices.
	340	Daily Shift sterile replacement suction head for contact cups (55 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
	341	Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
	294	Bluetooth barcode scanner — dimensions 60x35x15 mm (H), weight 45 g. 1D/2D barcode scanner module (optional, for use in GMP/GLP)
	291	Barcode labels for identifying sampling locations, size 85×55 mm (10 pcs/pack)
	421	TRIO printer paper roll, 57 mm (10 pcs/pack)
	423	Thermal paper rolls, size 57 mm (10 pcs/pack). Indelible thermal paper for TRIO printers.
	502	IQ (installation qualification) and OQ (operational qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO.
	507	PQ (performance qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO.

Expand Table
