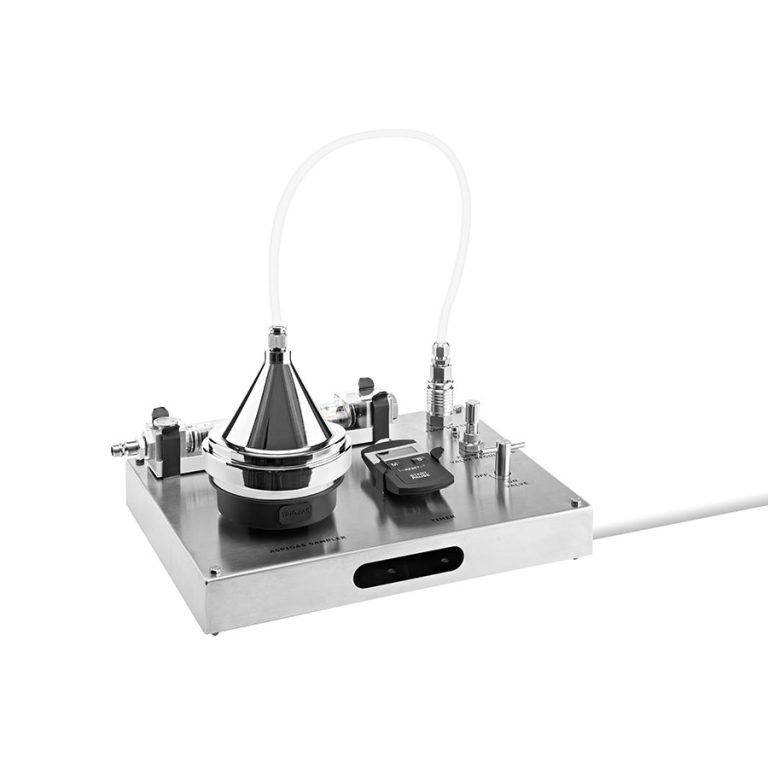

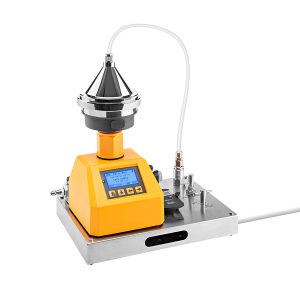

TRIO.BAS FLUGAS Microbiological Compressed Air and Gas Sampler

Microbiological sampler for quality control of compressed air, nitrogen, CO₂ and other gases in cleanrooms. The instrument ensures gas aspiration at adjustable flow rate 100 or 200 l/min, guaranteeing accuracy through calibrated flowmeter. Most of its components are autoclavable, which simplifies sterilization and maintenance process.

			int(28314)
NULL


Made in Italy. brand TRIO.BAS, model FLUGAS

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Description of TRIO.BAS FLUGAS

Microbiological sampler for quality control of compressed air/nitrogen/CO₂/argon and other gases in cleanrooms.

The device is designed for testing the presence of microorganisms in compressed gas samples (air, nitrogen, CO₂, argon) supplied from tanks and pipelines under pressure.

Features

  • Aspiration volume: 100 or 200 l/min (200 l/min — optional)
  • Flow rate is guaranteed by flow regulator controlled by operator through calibrated rotameter
  • All components are autoclavable (except rotameter and timer)
  • ASPIGAS chamber is included
  • Data is automatically registered when working with TRIO.BAS/AIRBIO samplers. When used with ASPIGAS chamber — manual registration
  • Gas inlet pressure: 1–10 bar
  • System complies with ISO 8573-7 and ISO 14698 standards

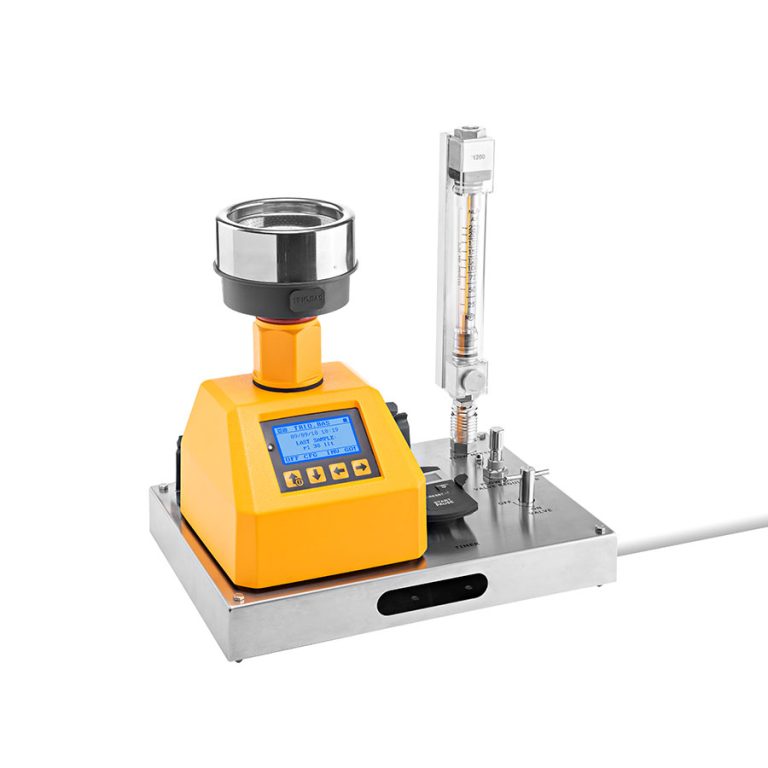

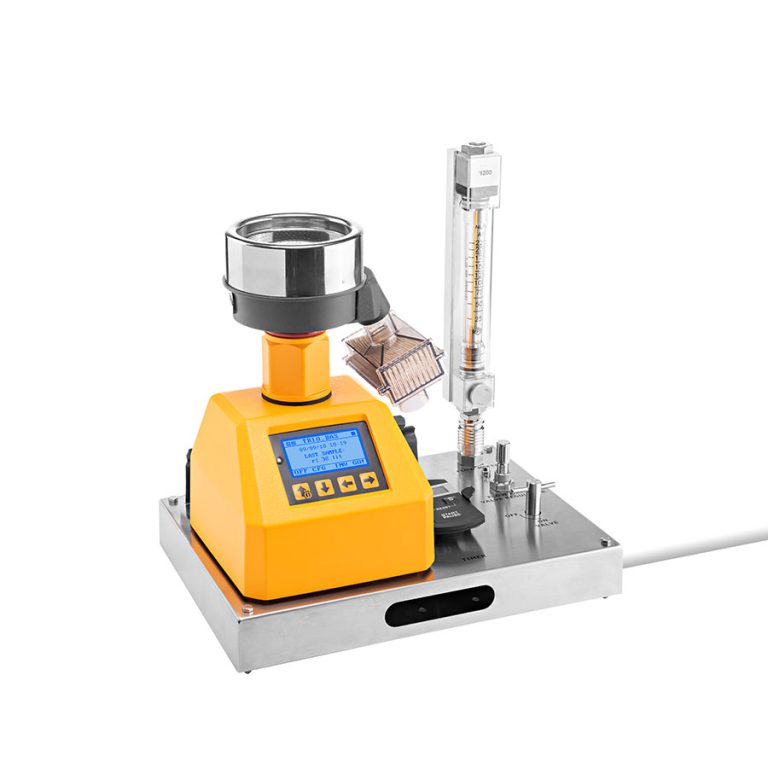

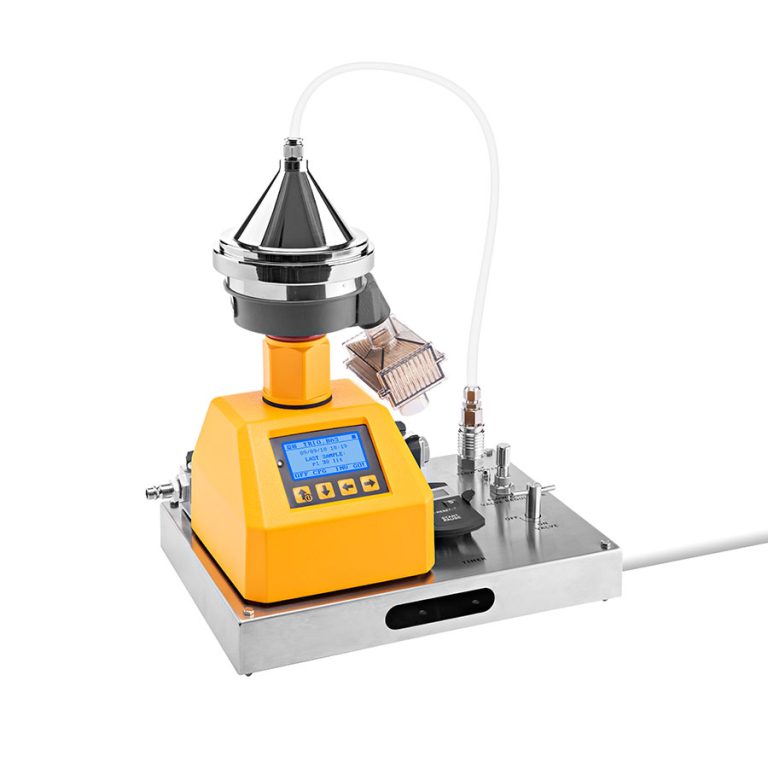

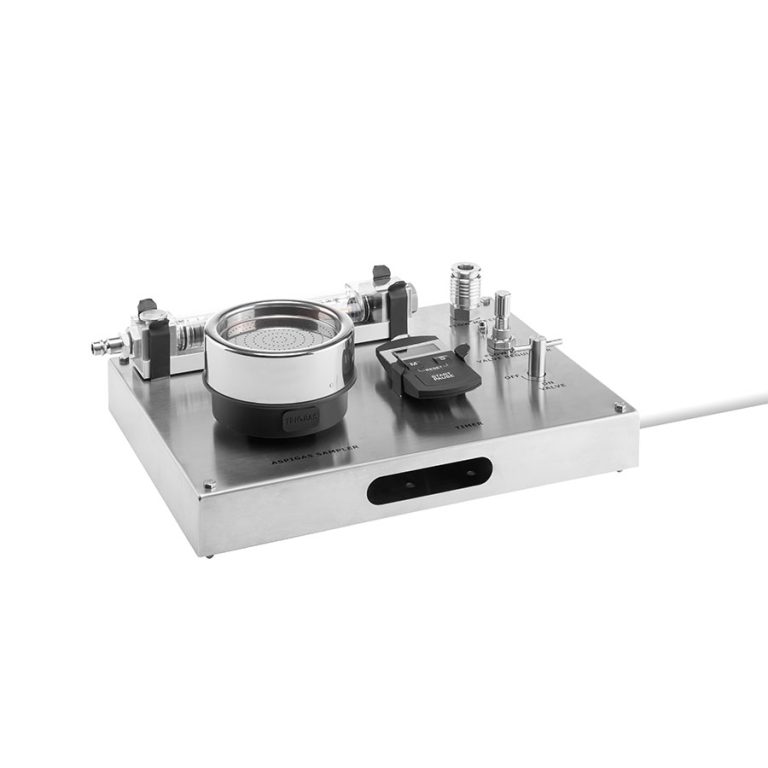

When FLUGAS is used with ASPIGAS chamber, sampling is performed manually, and duration is controlled by digital timer. When connected to TRIO.BAS or AIRBIO ONE air samplers, test is performed automatically, controlled by device software and sample data is saved. Data transfer to PC is performed via cable or through Bluetooth using specialized software compliant with GMP and GLP requirements.

Application: Pharmaceuticals, Cleanrooms, Biotechnology, Fermentation, Medical Devices, Food Industry, Dairy Industry, Beverages, Agro-industry, Catering, Cosmetics, Stem Cells

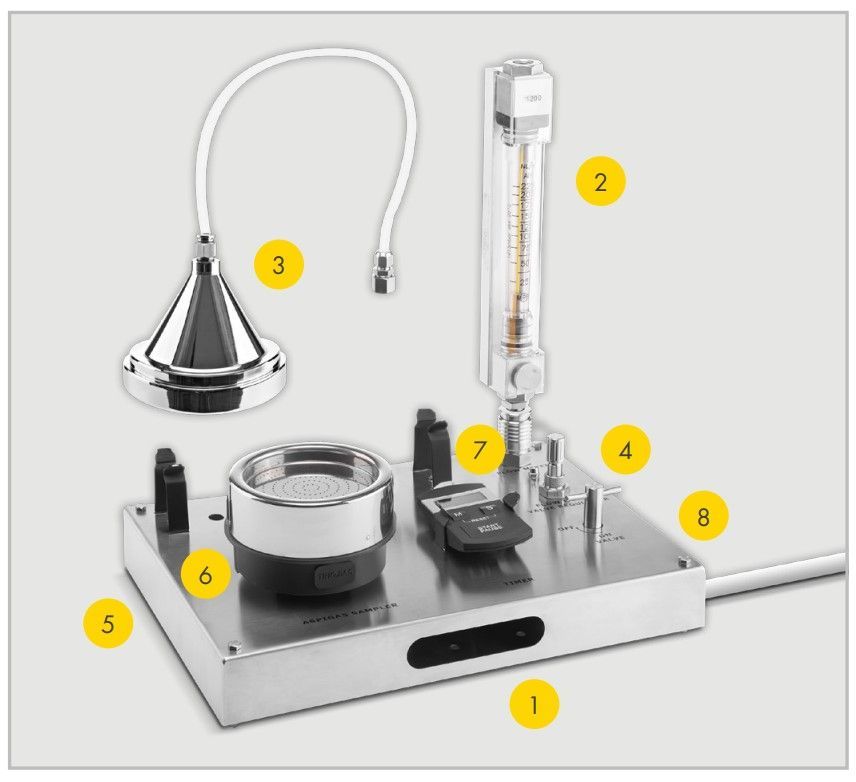

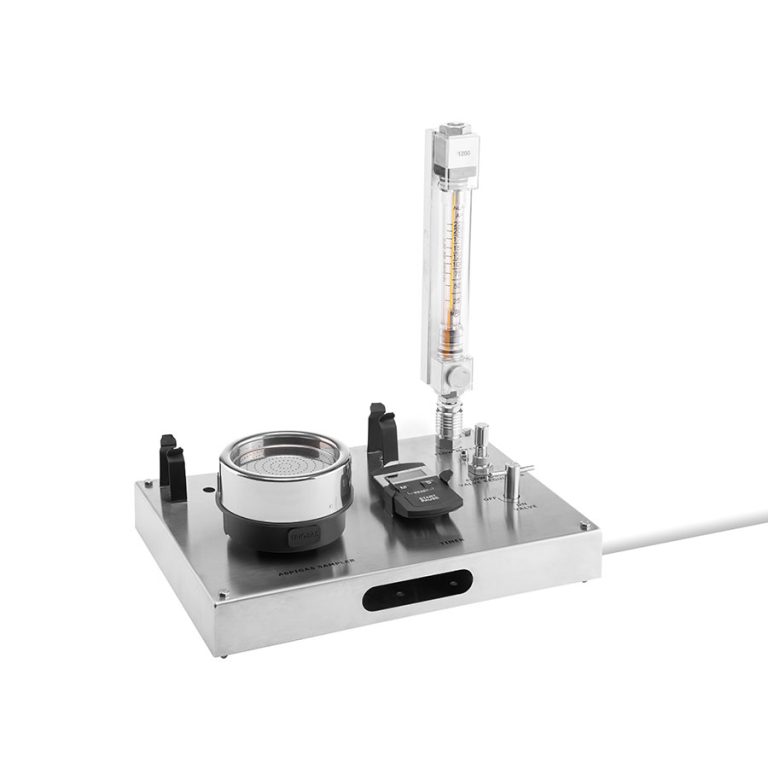

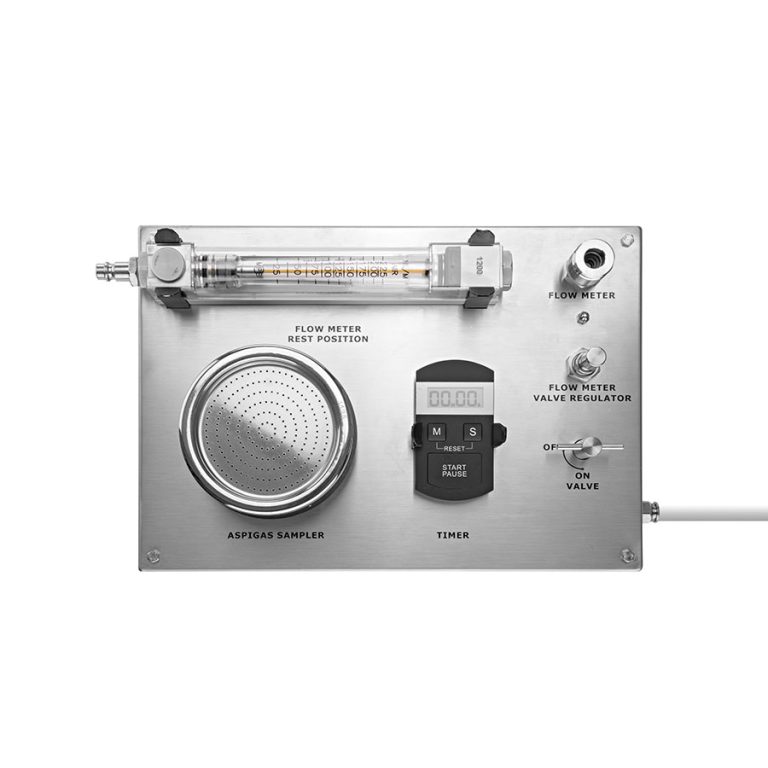

FLUGAS System consists of the following components:

  • Compact stainless steel base (1);
  • Analog calibrated vertical flowmeter (2);
  • Bell-shaped chamber from AISI 316 stainless steel (3);
  • Shut-off valve (on/off) and flow regulator (4);
  • ASPIGAS chamber with aspirating head (5–6);
  • Digital timer (7);
  • Input for connection of gas to be sampled (8).

Technical specifications of TRIO.BAS FLUGAS

Autoclavability All FLUGAS system components are autoclavable (except vertical flowmeter and timer)
Inlet pressure 1 ÷ 10 bar
Air flow rate 100/200 l/min (200 l/min — optional)
Dimensions 21×17×12 cm (with flowmeter — 32.5 cm in height)
Weight 1.38 kg (with flowmeter — 2 kg)
Documentation IQ, OQ, PQ
Standards compliance ISO 14698-1, EN 17141, ISO 8573-7, FDA
Expand Table

Accessories for TRIO.BAS FLUGAS

Photo Model Description
371 Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use.
381 Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room
180 IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device’s aspiration heads.
175 Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP.
394 Case with high performance characteristics. Ensures safe transportation of devices.
513 IQ (installation qualification) and OQ (operational qualification) documents for: FLUGAS VERIGAS
514 PQ (performance qualification) documents for: FLUGAS VERIGAS
340 Daily Shift sterile replacement suction head for contact cups (55 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
341 Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
Expand Table

Prices for TRIO.BAS FLUGAS

Model Description Price

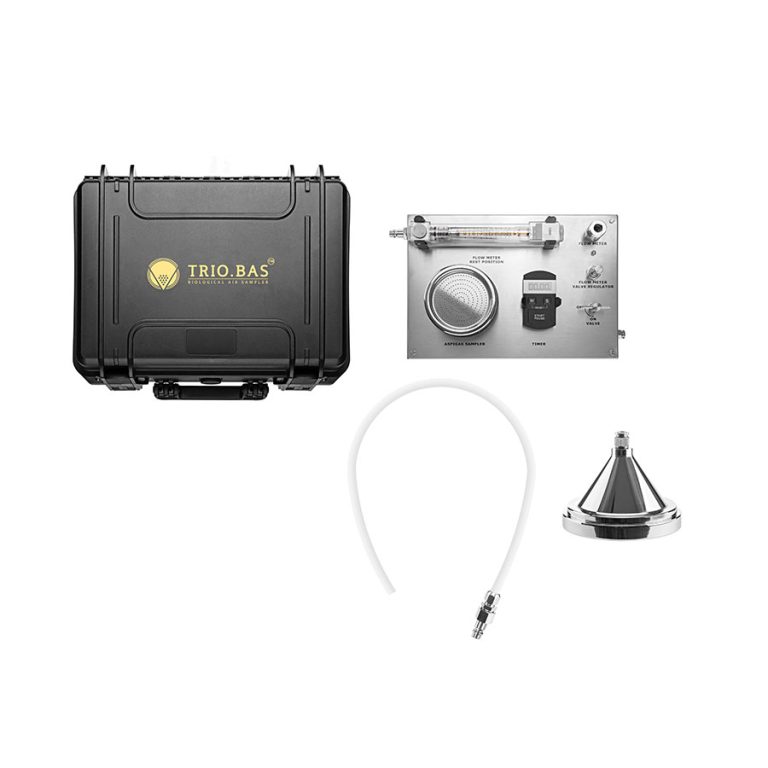

597 FLUGAS System Petri – with flow-meter 100 l/m, ASPIGAS chamber, aspi head Petri, digital timer and carrying case On request
598 FLUGAS System Contact – with flow-meter 100 l/m, ASPIGAS chamber, aspi head Contact, digital timer and carrying case On request
371 MULTI HOLDER MINI – s/s cart on wheels – 25x35x70h cm – for MONO, DUO, TRIO – stand up holder optional On request
381 Cleanroom bag (5×150) – 750 bags On request
180 s/s TRIO.BAS IN REST On request
175 EASY RACK Contact/Petri On request
394 ROBUSTUS MEDIUM carrying case for TRIO.BAS RABS ISOLATOR – 56x43x22h cm On request
340 Daily Shift Sterile Aspirating Head (DSHR) for Contact plate – in double sterile bag (20xbox) minimum 4 box On request
341 Daily shift Sterile Aspirating Head (DSHP) for Petri 90 plate – in double sterile bag (20xbox) minimum 4 box On request
513 IQ, OQ, documents for FLUGAS VERIGAS On request
514 PQ documents for FLUGAS VERIGAS On request
Expand Table

User Guide and Instruction manual for TRIO.BAS FLUGAS

You can request the necessary certificates, documentation, instructions and user guide for TRIO.BAS FLUGAS using the special form.

You can buy TRIO.BAS FLUGAS in Latvia at a price starting from price by request € in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email . TRIO.BAS FLUGAS price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
