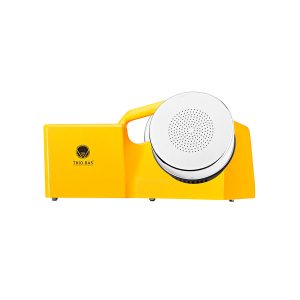

TRIO.BAS DUO INDUCTION Portable Microbial Active Air Sampler

Description of TRIO.BAS DUO INDUCTION

TRIO.BAS Duo Induction is a portable air sampler with two aspirating heads, designed for microbial monitoring in zones with intensive staff rotation and high quality requirements according to QM/GMP.

Features:

• Two aspirating heads reduce total sampling time and allow the simultaneous use of different culture media or monitoring BEFORE, DURING, and AFTER technological processes.
• Automatic microbial monitoring in accordance with regulatory requirements.
• Continuous/trending analysis according to the USP
• Wireless data transfer module (Bluetooth): data transfer between the instrument and Android devices (smartphone/tablet), with subsequent transfer to a PC or laptop.
• Manual and automatic passwords (cascade access levels)
• Automatic next calibration reminder
• Programmable for compressed gases/air
• Data integrity CFR 21 Part 11 and GAMP5 compliant

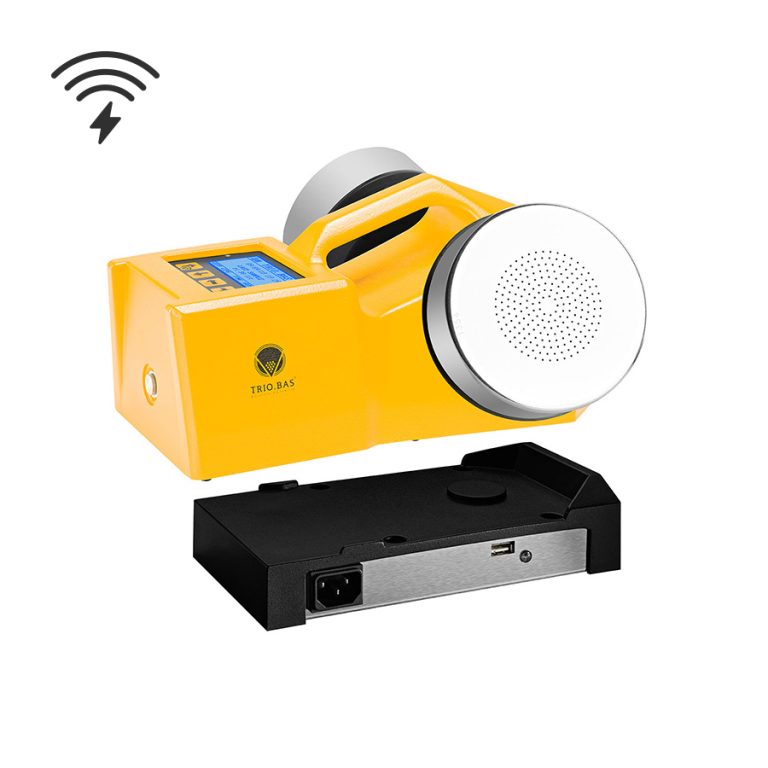

• Induction charging: the battery is recharged by a base station induction charger without any cable connection between the air sampler and the charger.
• The 100 or 200 L/min air flow reduces the operator time and the sampling time.
• The sampler is IP65 certified for protection from dust and water.
• Compatibility with barcode systems: use of a Bluetooth scanner for automatic registration of the operator, sampling location, and plates used (including those with barcode or 2-D barcode (QR Quick Response Code)), with data transfer directly to the device.
• The use of sterile Daily Shift aspirating heads reduces the risk of contamination and ensures ease of operation.
• The sampler features a light weight and ergonomic balanced design to facilitate handling with or without gloved hands.
• LED indicator on the display shows the current device status (Waiting delay time, Sampling in progress, Sampling pause) via different flash types.
• It is possible to work either in manual or automatic mode.
• Data can be exported for analysis or inspection verification.
• Production in ISO 9001 certified premises

Sampling Programming Modes:

• SEQUENTIAL: launch of the second head immediately after the first completes.
• SIMULTANEOUS: both heads operate in parallel.
• INTERVAL: sampling with a set time interval.
• CONTINUOUS: the next head activates immediately after the previous one completes.

Additional Functions:

• LED indicator on the display shows the current device status (delay, active sampling, pause) via different flash types.
• It is possible to work either in manual or automatic mode.
• Data can be exported for analysis or inspection verification.

Applications: Pharmaceutical aseptic filling suites, cleanrooms, biotechnology, fermentation, medical device manufacturing, cell technologies (Stem Cell), IVF clinics, operating theatres, hospital pharmacies, blood banks, clinics, microbiological and environmental labs, HVAC building systems, healthcare environment monitoring, health authorities.

Technical specifications of TRIO.BAS DUO INDUCTION

Accessories for TRIO.BAS DUO INDUCTION

Photo	Model	Description
	Use of a 1D/2D Bluetooth barcode scanner	Compact barcode scanner. It can be used to identify the ID of plates with a 1D or 2D code, sampling locations and operators.
	Roll Paper for Bluetooth Printer	The ROLL PAPER is no erasable thermal paper. The paper is printed thermally but it keeps the image for a long time.
	Bluetooth Printer	Ultra-light and compact portable Bluetooth printer with high printing autonomy. It has an end paper sensor and prints most popular barcodes.

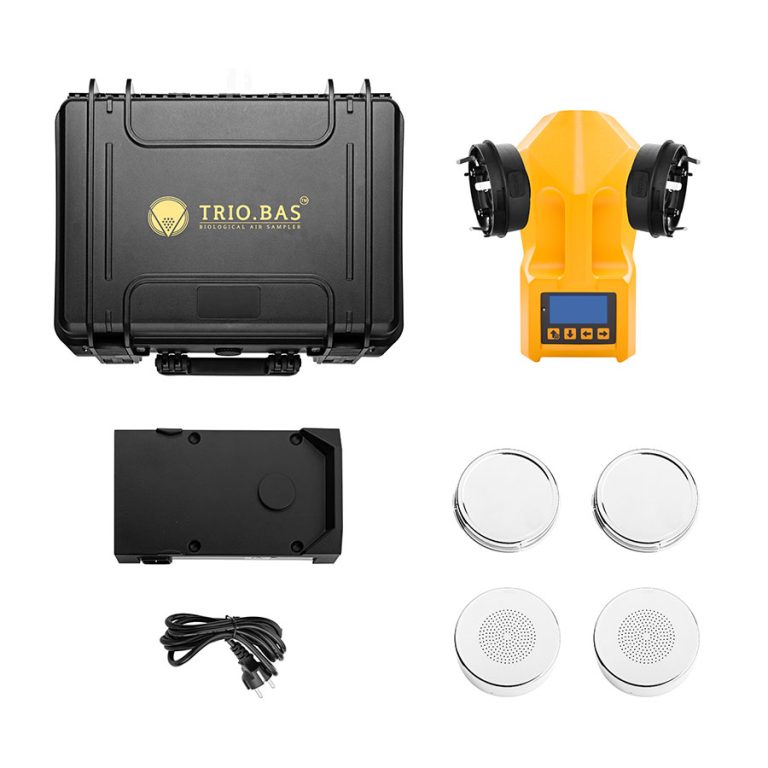

	Robustus Carrying Case	These Carrying cases have very performing characteristics. They ensure the safe transport of the instruments.
	TRIO.BAS Cleanroom Bag	Sterile bags ideal for safely containing and transporting Petri dishes, Contact plates, Swabs, or other objects, outside of the cleanroom.
	TRIO.BAS GLP Easy Rack	Cleanroom Stainless Steel Rack with handle for stacking, storing, and transporting culture plates (Petri or Contact plate). They are used to maintain the distance inside the incubator according to GLP.
	TRIO.BAS IN-REST Holder	A temporary support for culture media plates and/or lids, and instrument sampling heads.
	Maxi Multi Holder Cart on Wheels	This cart is suitable mostly for cleanrooms. It is equipped with 2 shelves, a fixed vertical hook and a vertical extensible support with ball joint. Adjustable height from 100 cm to 210 cm.
	Mini Multi Holder Cart on Wheels	A compact cart suitable ideally for cleanrooms, convenient for positioning the air sampler at a medium height. It has 2 shelves, is robust and easy to use.
	TRIO.BAS Maxi Floor Tripod	The floor tripod is designed for convenient and safe sampling at medium and high heights. Lightweight and height-adjustable up to 366 cm, it facilitates operator activity with quick fixation without screwing.
	S/S Floor Tripod	Adjustable height from min.150 cm to max 200 cm ensures convenient sampling at medium height. Supports direct mounting of the air sampler or installation of a STAND UP holder (optional). A ball joint fixes the air sampler and adjusts its orientation.

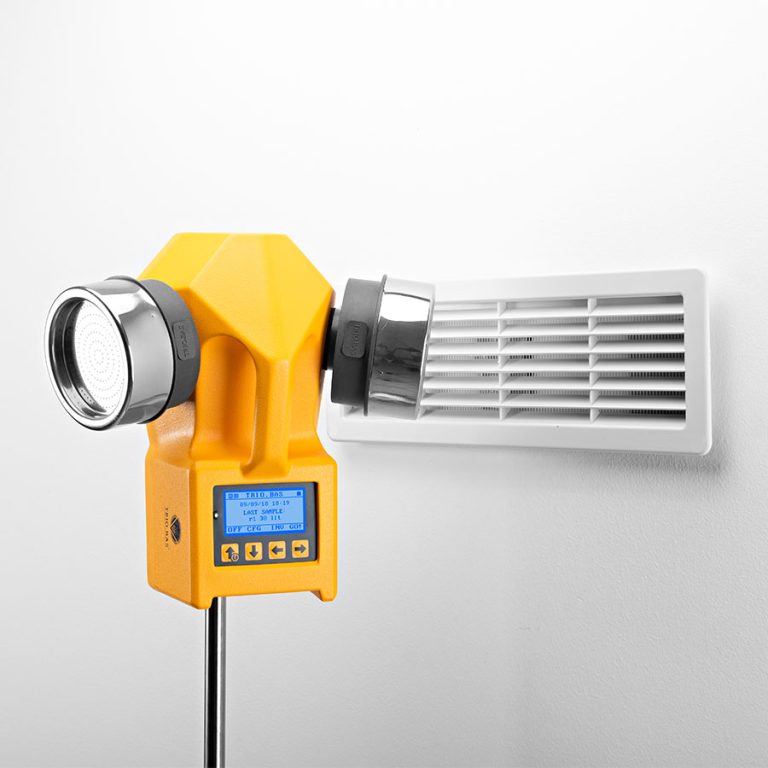

	TRIO.BAS Wall/Table Holder	It can be positioned on any work surface or can be fixed onto a wall to keep the air sampler in the same direction of the air coming out from conditioned port.
	Vertical Hook Holder	It can be positioned on any work surface or can be fixed on all tripods and MAXI multi holder cart with wheels. Fixed on a vertical tripod, the holder allows the air sampler to be independent from the tripod for charging the battery or removing the plates for sampling.
	Stand Up Maxi Holder for MONO, DUO, TRIO	Completely made in high density impact resistant techno-polymer. Allows the vertical positioning of the air sampler with the use of just one hand. Compatible with any work surface, tripods and the MINI cart. Allows easy charging of the instrument and plate replacement without removing it from the holder.

Expand Table

Prices for TRIO.BAS DUO INDUCTION
