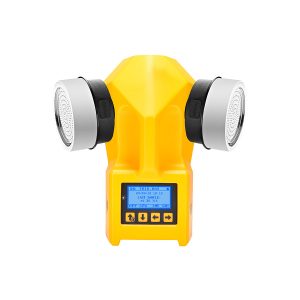

TRIO.BAS DUO CABLE Portable Microbial Active Air Sampler

Description of TRIO.BAS DUO CABLE

TRIO.BAS Duo Cable is a high-performance microbial air sampler with two aspirating heads, designed for facilities with high monitoring intensity, significant staff rotation, and the need to comply with quality standards QM/GMP.

Features:

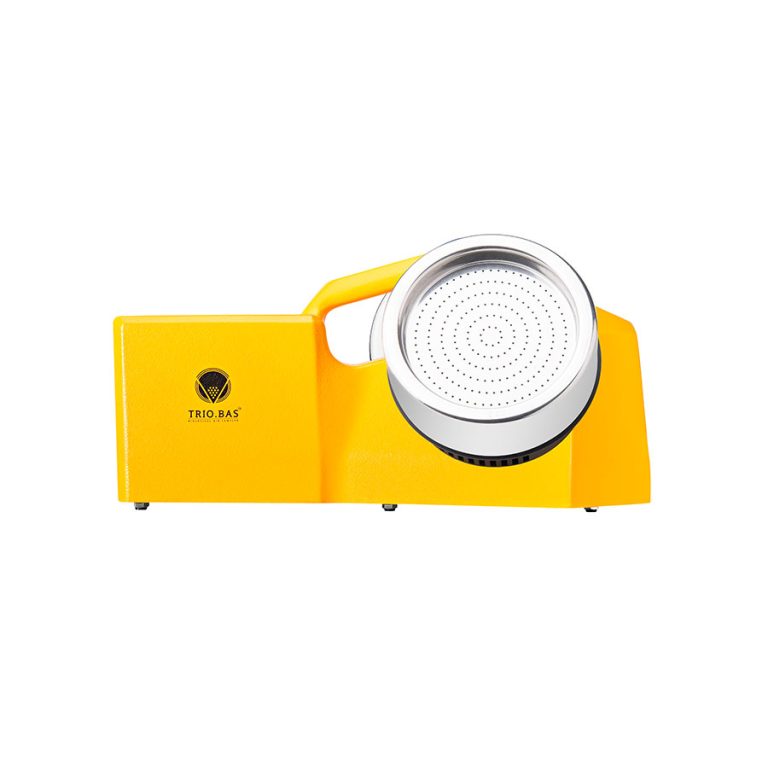

• Stable on a work surface in a vertical position without the use of any external support
• AISI 316 rated stainless steel aspirating head with quick bayonet closure and identification number
• Two aspirating heads reduce sampling time and allow the simultaneous use of different culture media.
• The possibility to use 2 different aspirating heads allows the use of 2 different culture media at the same time or the ability to sample BEFORE (at rest), DURING (in operation) and at the END of each processing cycle.
• Flexible monitoring organization: allows sampling BEFORE, DURING, and AFTER the production cycle, as well as implementing continuous microbial monitoring in accordance with regulatory requirements.
• Continuous/trending analysis according to the USP
• Barcode module with Bluetooth scanner automatically records the operator, place and plates used for sampling. The data collected by the barcode reader are transmitted directly to the instrument. This solution is useful for those who already use culture plates with barcode or 2-D barcode (QR Quick Response Code).
• Data Transfer: performed via Bluetooth (to Android devices and PCs) or via cable — relevant for organizations with restrictions on wireless communication.
• Manual and automatic passwords (cascade access levels)
• Automatic next calibration reminder

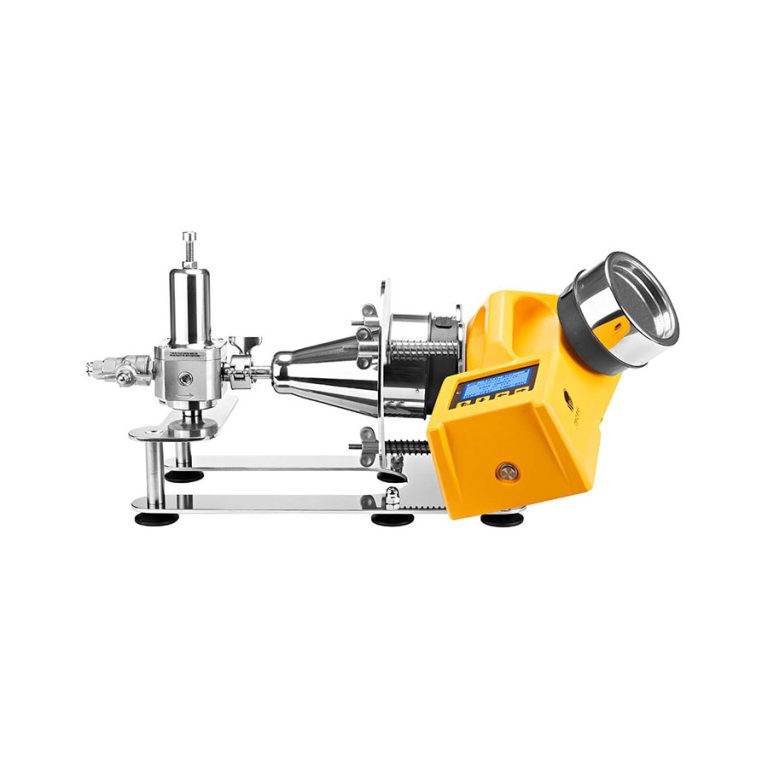

• Programmable for compressed gases/air
• Data integrity CFR 21 Part 11 and GAMP5 compliant
• Body Protection: complies with IP65 standard (dust and water protection).

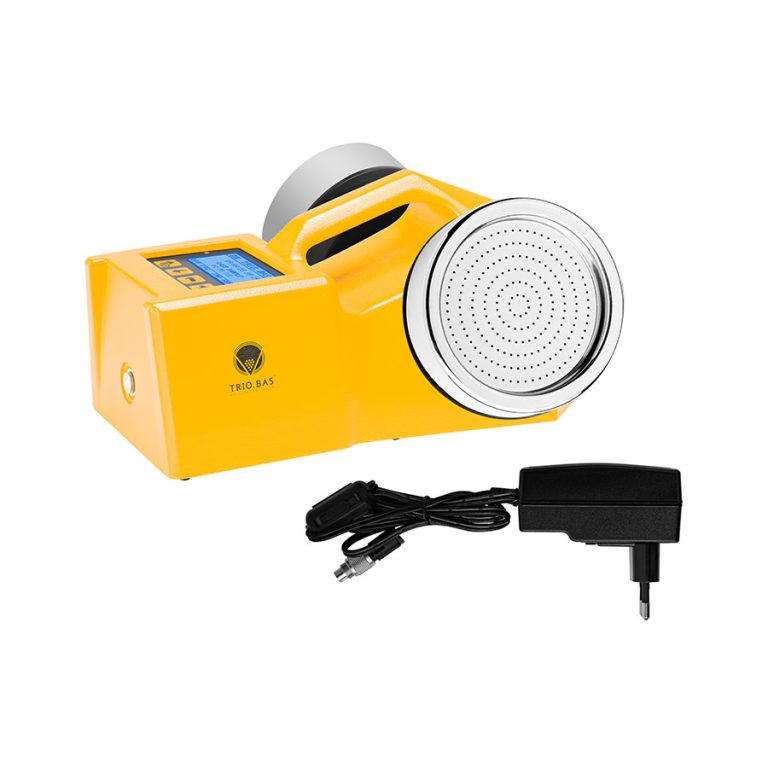

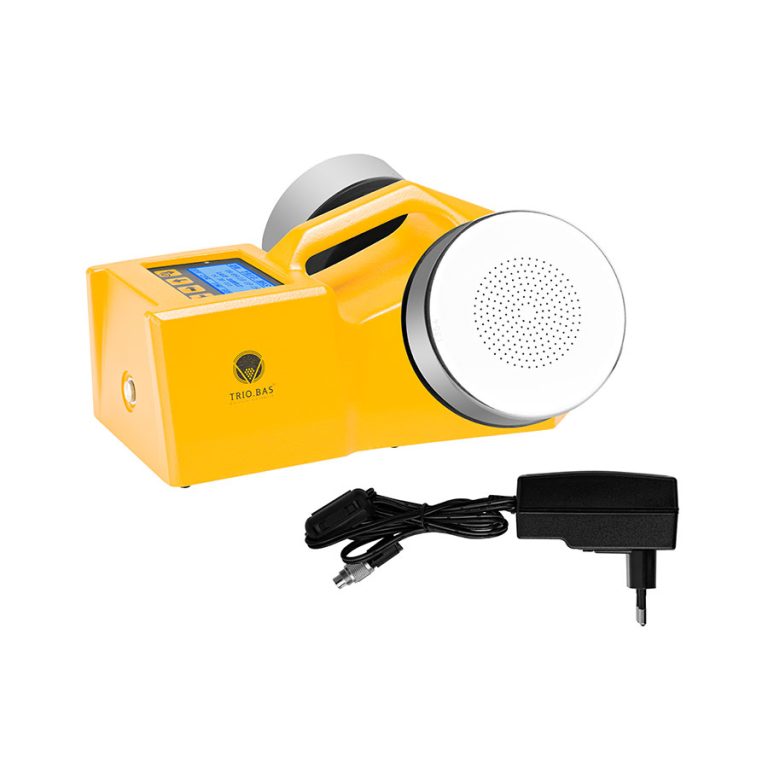

• Power Supply: internal battery with the ability to recharge directly from the power cable.
• Performance: 100 or 200 L/min air flow reduces sampling time and increases operational efficiency.
• Sterile disposable Daily Shift heads reduce the risk of cross-contamination and simplify staff work.
• The sampler features a light weight and ergonomic balanced design to facilitate handling with or without gloved hands.

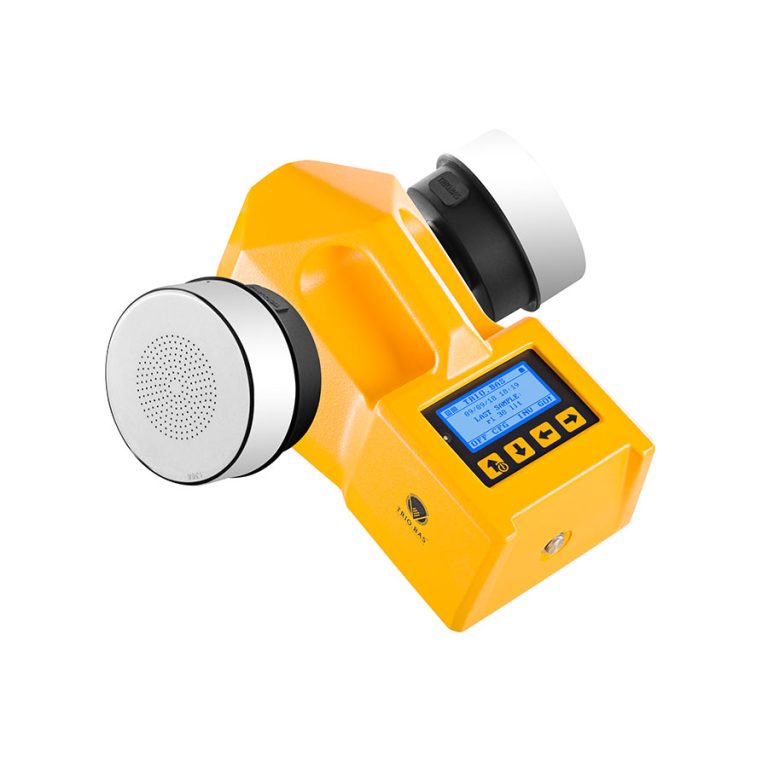

• LED status indication on the display (Waiting delay time, Sampling in progress, Sampling pause) simplifies real-time instrument status control.
• Production in ISO 9001 certified premises

Sampling Mode Options:

• SEQUENTIAL: launch of the second head immediately after the first completes.
• SIMULTANEOUS: both heads operate synchronously.
• INTERVAL: sampling with a set time interval.
• CONTINUOUS: automatic start of the next head without delay.

LED status indication on the display (delay, process, pause) simplifies real-time instrument status control.

Applications: Pharmaceuticals, cleanrooms, biotechnology, fermentation, medical device manufacturing, cell technologies, IVF clinics, operating theatres, hospital pharmacies, blood banks, microbiological and environmental labs, HVAC systems control, healthcare environmental monitoring, health authorities.

Technical specifications of TRIO.BAS DUO CABLE

Accessories for TRIO.BAS DUO CABLE

Photo	Model	Description
	376	MAXI stand holder. Made of durable high-density technopolymer. Allows for vertical installation of the sampler with one hand. Compatible with any work surface, tripods, and the MINI trolley. Allows for easy charging of the device and replacement of cups without removing them from the mount.
	521	Vertical stainless steel hook with handle — for mounting on a table, trolley, or floor stand. Compatible with MINI, MONO, DUO, and TRIO models. Dimensions: 12x15x25 cm (H*).

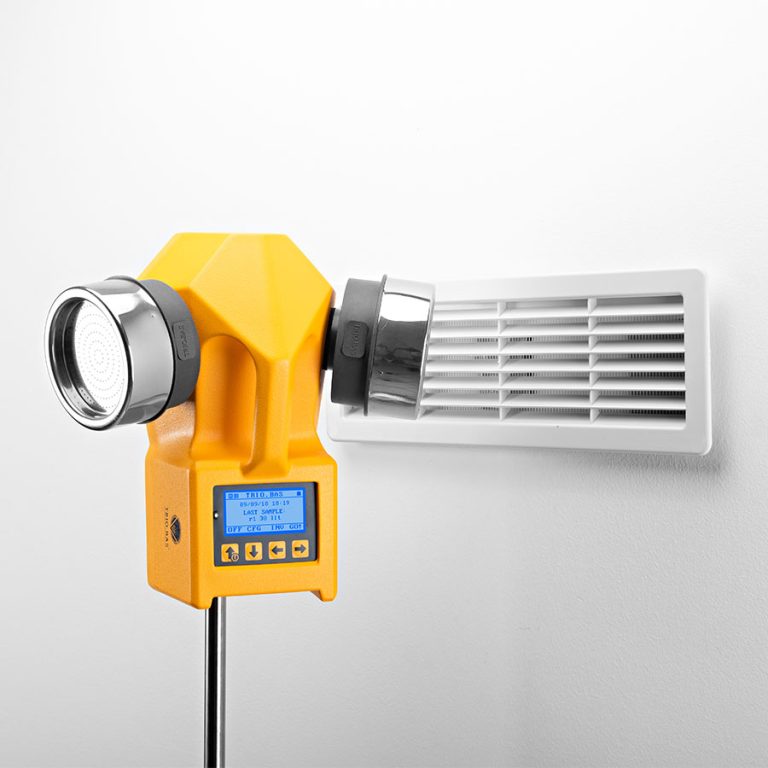

	530	Wall/desk mount. Can be placed on any work surface or mounted on a wall to hold the air sampler in the direction of the air flow coming out of the supply vent.
	371	Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use.
	372	MAXI cart with multifunctional holder — stainless steel cart on wheels, complete with table holder and vertical pull-out support with hook. Dimensions: 25x35x70 cm (H) (height adjustment range: 100 to 210 cm). Designed for MONO, DUO, and TRIO models.
	387	The floor tripod is designed for convenient and safe sampling at medium and high heights. Lightweight and height-adjustable up to 366 cm, it ensures a stable setup of the air sampler and facilitates operator activity with quick fixation without screwing. Ideal for mobile use in areas with hard-to-reach sampling points.
	523	Stainless steel floor stand. Adjustable height from 150 to 200 cm ensures convenient sampling at medium height. Supports direct attachment of the sampler or installation of a holder-stand (optional). A ball joint allows you to fix the device and adjust its position.
	381	Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room
	175	Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP.
	180	IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device’s aspiration heads.
	502	IQ (installation qualification) and OQ (operational qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO
	507	PQ (performance qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO

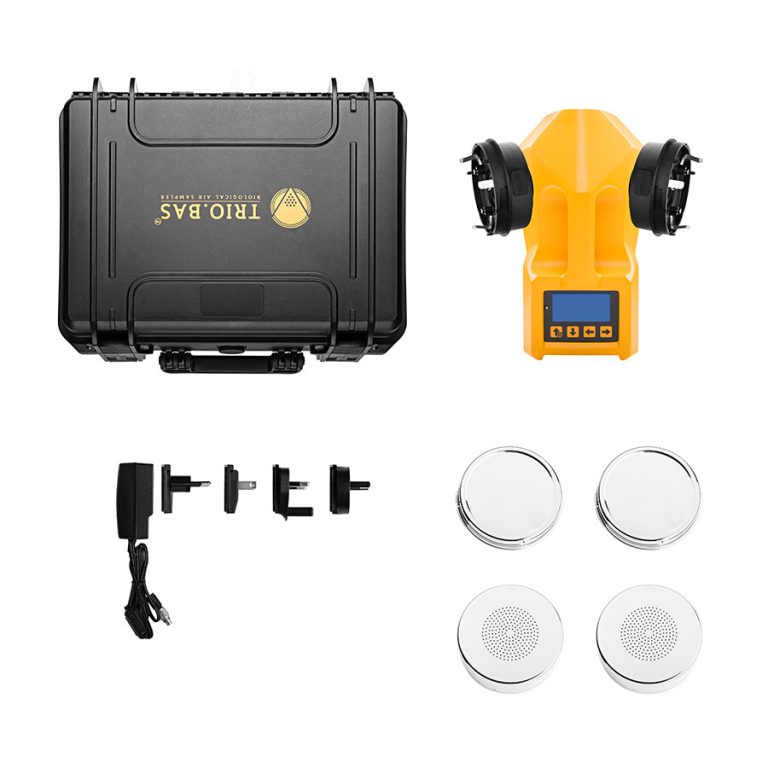

	395	These Carrying cases have very performing characteristics. They ensure the safe transport of the instruments.
	520	Ultra-lightweight and compact portable Bluetooth printer with high printing autonomy. Equipped with a paper end sensor and supports printing of the most common barcodes.
	421	TRIO printer paper roll, 57 mm (10 pcs/pack)
	423	Thermal paper rolls, size 57 mm (10 pcs/pack). Indelible thermal paper for TRIO printers.
	294	Bluetooth barcode scanner — dimensions 60x35x15 mm (H), weight 45 g. 1D/2D barcode scanner module (optional, for use in GMP/GLP)
	291	Barcode labels for identifying sampling locations, size 85×55 mm (10 pcs/pack)
	340	Daily Shift sterile replacement suction head for contact cups (55 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
	341	Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs

Expand Table
