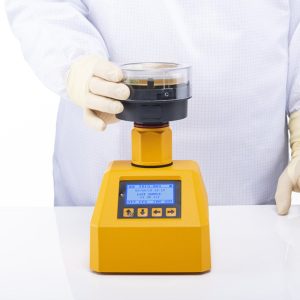

TRIO.BAS AIRBIO ONE CABLE Portable Microbial Active Air Sampler

Description of TRIO.BAS AIRBIO ONE CABLE

Portable Microbial Active Air Sampler with bluetooth traditional battery charger plug and transfer data cable.

Features:

• TRIO.BAS Airbio One Cable instrument housing is designed for stable placement of the sampler on surface and ensuring convenient information reading from keyboard.

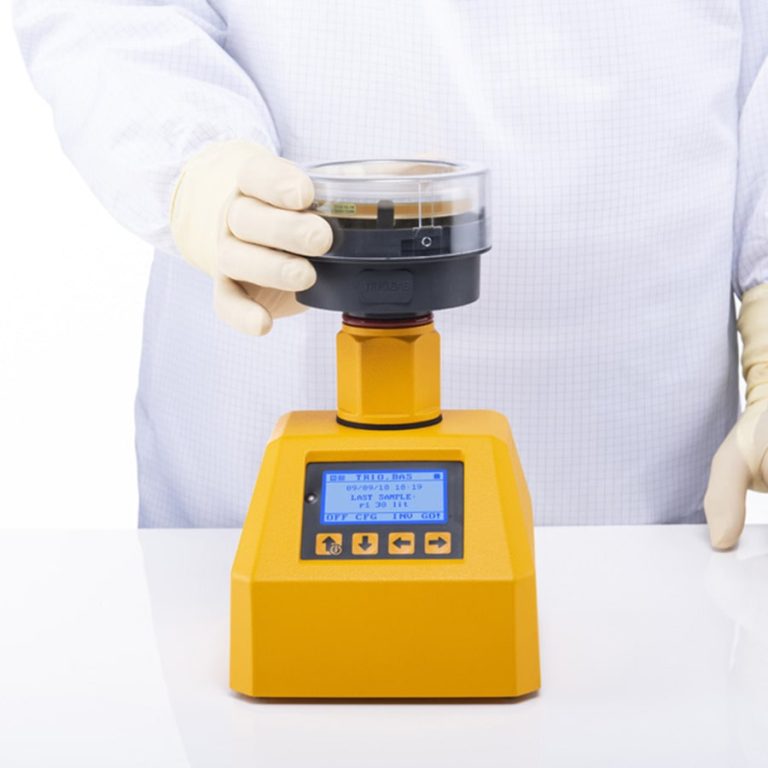

• Vertical orientation facilitates quick and accurate plate installation onto aspirating heads.
• Instrument is adapted for operation in conditions of intensive personnel flow and high volume of microbiological control, compliant with QM/GMP quality standards.
• Supports Automatic reminder for next calibration
• Both manual and automatic sampling modes are supported.
• Air flow 200 l/min ensures reduced sampling time and reduced operator workload.
• Doubling of aspirated air volume allows reducing sampling time.

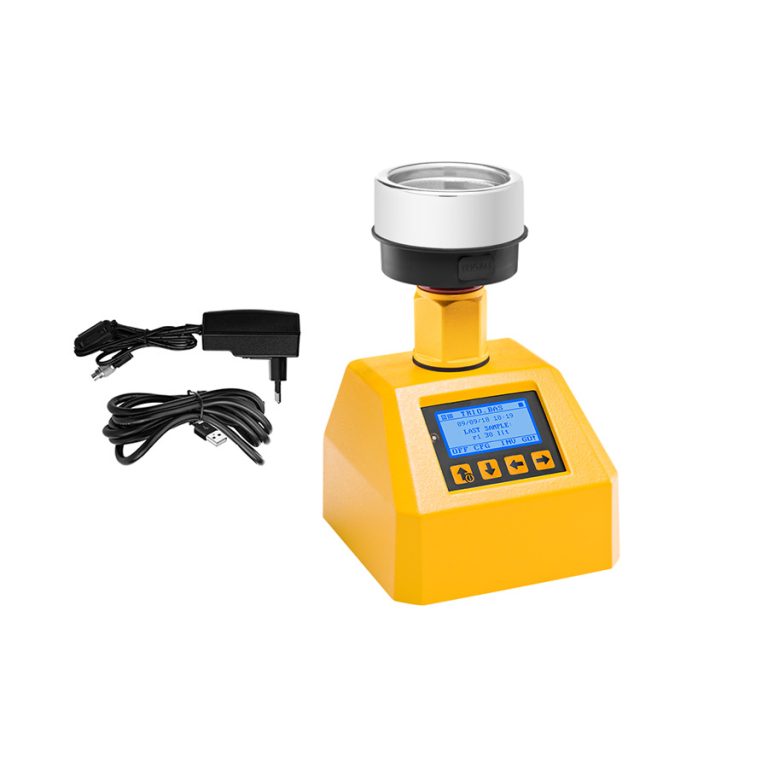

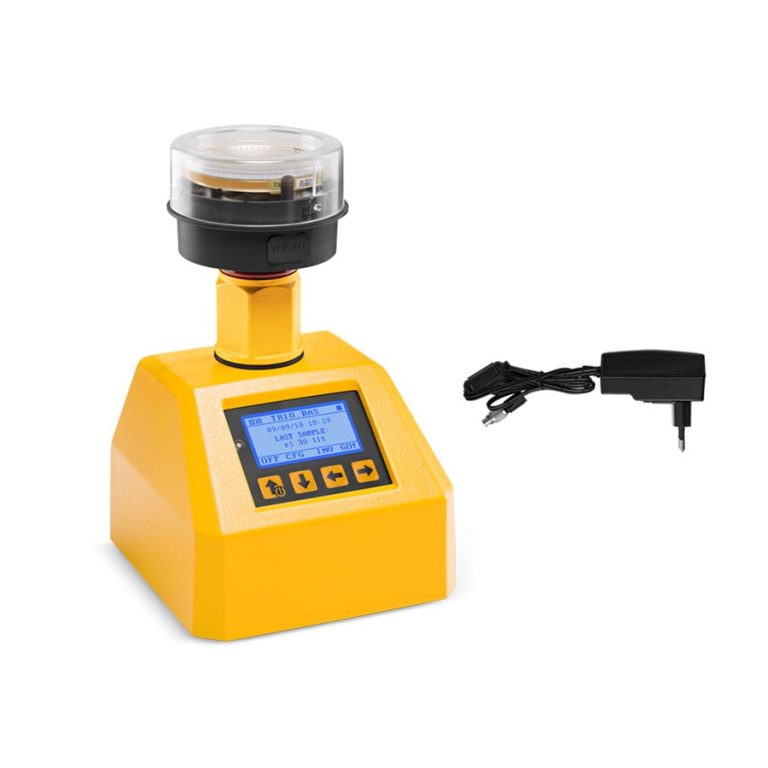

• Rechargeable built-in battery is charged via power cable connected directly to the instrument.
• LED indicator on the left side of display shows sampling status via different blinking frequency: delay wait, sampling in progress, sampling pause.
• Optional barcode module with Bluetooth scanner automatically registers operator, location and used plates. Data is transmitted directly to the instrument. Solution is convenient for users of plates with barcode or 2D-code (QR).
• Version with external HEPA filter for particle retention is available.

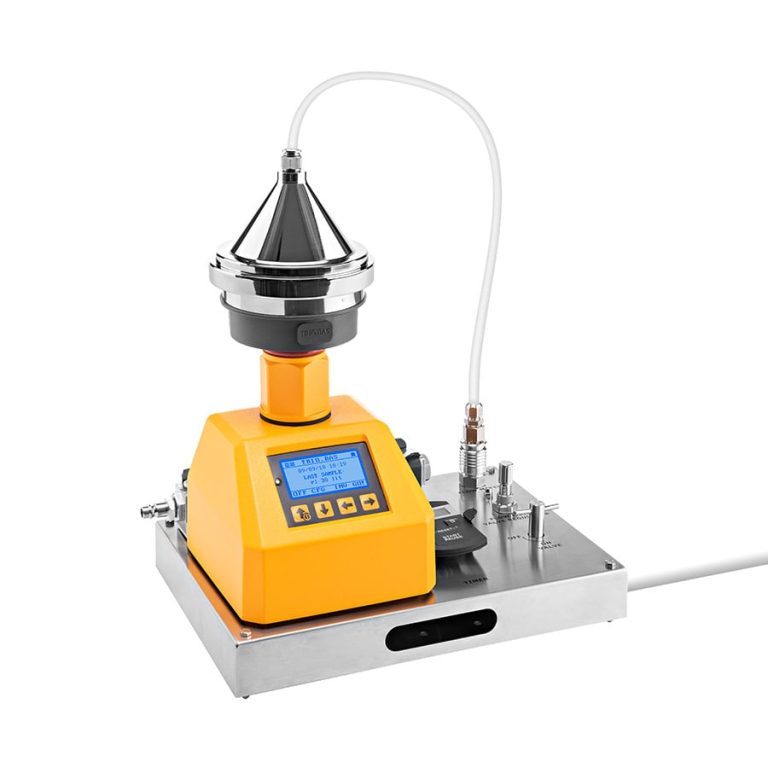

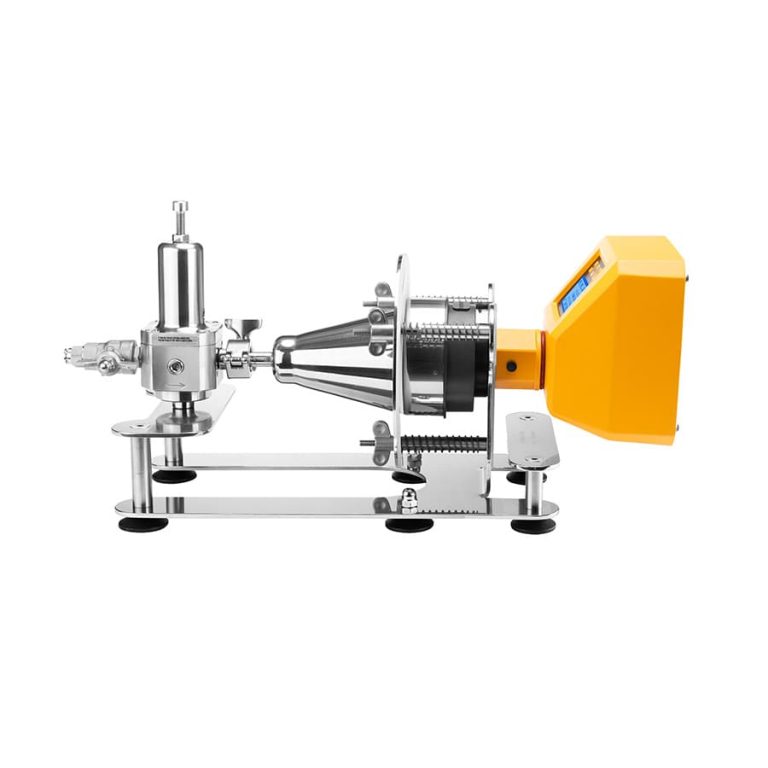

• Can be used for compressed gas testing complete with GAS SYSTEM (optional).
• Validated according to EN 17141.

Applications:

• Pharmaceutical aseptic filling suites
• Cleanrooms and biotechnology laboratories
• IVF clinics, operating theatres, hospitals, pharmacies
• Blood banks, clinical microbiological laboratories
• HVAC building monitoring
• Environmental labs

Data Transfer Features:

• Data transfer is performed via Bluetooth from sampler to Android device (smartphone/tablet), then to PC or laptop through specialized software.
• As an alternative, wired data transfer is possible, which is particularly important for facilities with restrictions on use of wireless communication channels.
• Password protection for manual and automatic modes.

Additional Capabilities: The use of sterile Daily Shift aspirating heads reduces the risk of cross-contamination when working in conditions with high frequency of staff shifts.

Technical specifications of TRIO.BAS AIRBIO ONE CABLE

Accessories for TRIO.BAS AIRBIO ONE CABLE

Photo	Model	Description
	520	Ultra-lightweight and compact portable Bluetooth printer with high printing autonomy. Equipped with a paper end sensor and supports printing of the most common barcodes.
	421	TRIO printer paper roll, 57 mm (10 pcs/pack)
	423	Thermal paper rolls, size 57 mm (10 pcs/pack). Indelible thermal paper for TRIO printers.
	294	Bluetooth barcode scanner — dimensions 60x35x15 mm (H), weight 45 g. 1D/2D barcode scanner module (optional, for use in GMP/GLP)
	291	Barcode labels for identifying sampling locations, size 85×55 mm (10 pcs/pack)
	340	Daily Shift sterile replacement suction head for contact cups (55 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
	341	Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs

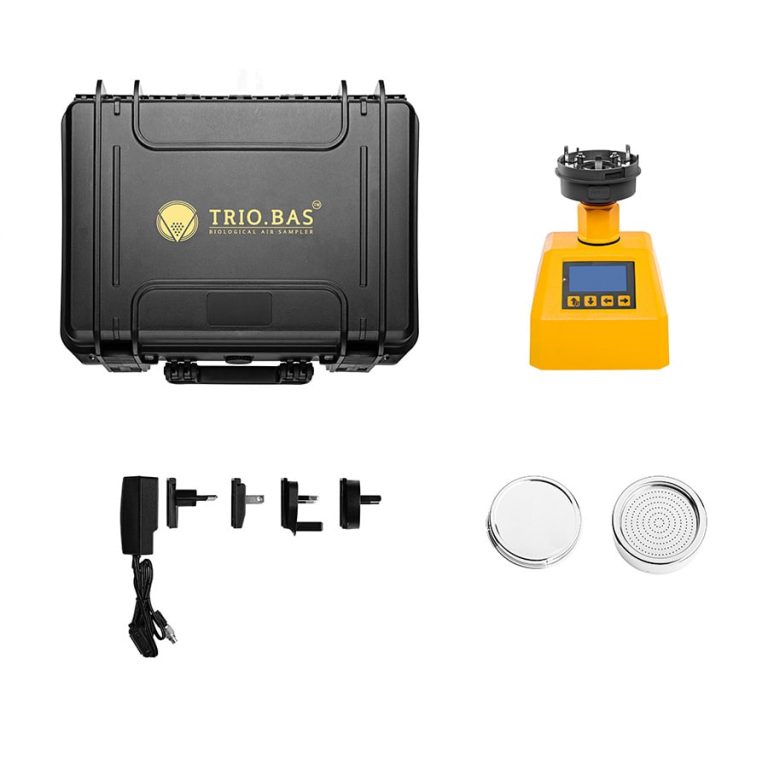

	401	These Carrying cases have very performing characteristics. They ensure the safe transport of the instruments.
	381	Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room
	175	Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP.
	180	IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device’s aspiration heads.
	371	Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use.
	372	MAXI cart with multifunctional holder — stainless steel cart on wheels, complete with table holder and vertical pull-out support with hook. Dimensions: 25x35x70 cm (H) (height adjustment range: 100 to 210 cm). Designed for MONO, DUO, and TRIO models.
	387	The floor tripod is designed for convenient and safe sampling at medium and high heights. Lightweight and height-adjustable up to 366 cm, it ensures a stable setup of the air sampler and facilitates operator activity with quick fixation without screwing. Ideal for mobile use in areas with hard-to-reach sampling points.
	523	Stainless steel floor stand. Adjustable height from 150 to 200 cm ensures convenient sampling at medium height. Supports direct attachment of the sampler or installation of a holder-stand (optional). A ball joint allows you to fix the device and adjust its position.
	521	Vertical stainless steel hook with handle — for mounting on a table, trolley, or floor stand. Compatible with MINI, MONO, DUO, and TRIO models. Dimensions: 12x15x25 cm (H*).
	376	MAXI stand holder. Made of durable high-density technopolymer. Allows for vertical installation of the sampler with one hand. Compatible with any work surface, tripods, and the MINI trolley. Allows for easy charging of the device and replacement of cups without removing them from the mount.
	502	IQ (installation qualification) and OQ (operational qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO
	507	PQ (performance qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO

Expand Table

Prices for TRIO.BAS AIRBIO ONE CABLE
