TRIO.BAS AIRBIO DUO CABLE Portable Microbial Active Air Sampler

Description of TRIO.BAS AIRBIO DUO CABLE

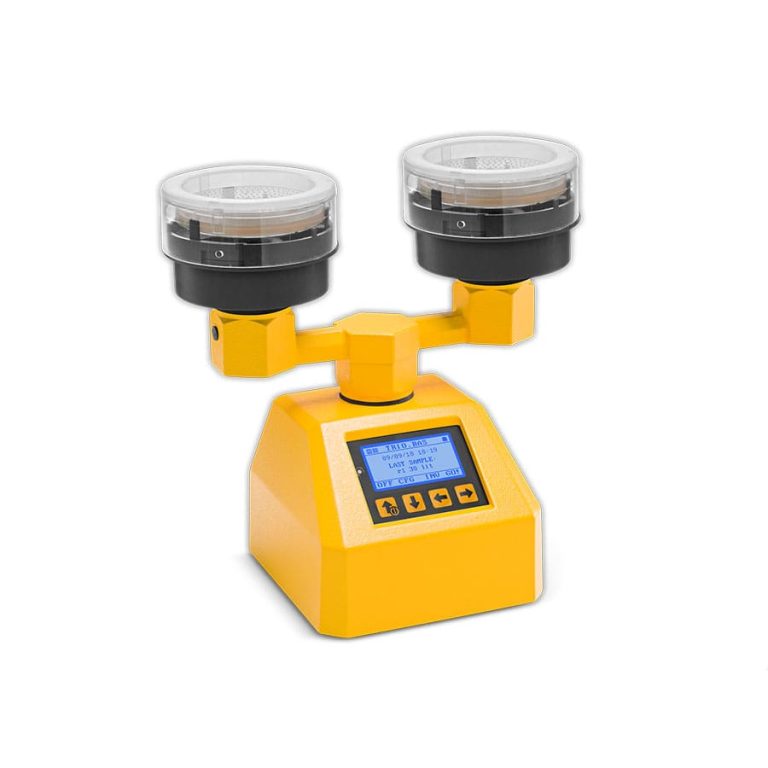

TRIO.BAS Airbio Duo Cable is a portable microbial active air sampler with two aspirating heads, designed for performing a large volume of microbial controls in various production and laboratory environments with high staff rotation and the need to comply with quality standards and QM/GMP. The instrument design ensures compliance with regulatory body requirements for continuous microbial environmental monitoring.

Features:

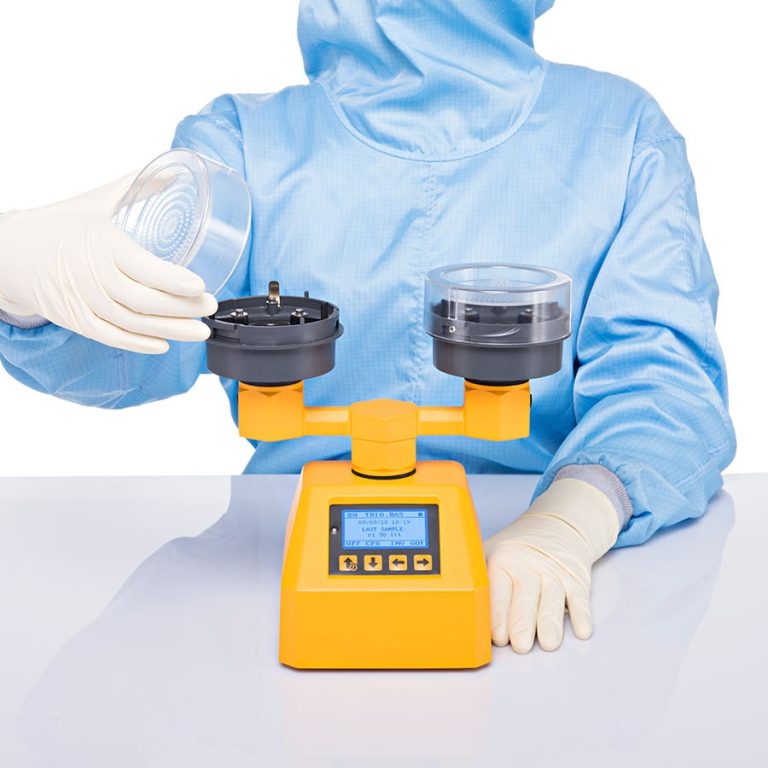

• Two aspirating heads allow simultaneous use of different culture media and significantly reduce total sampling time. Vertical orientation of aspirating heads facilitates plate installation and promotes laminar airflow preservation.
• Instrument housing has enhanced stability when placed on surface and ensures convenience of visual control and data entry thanks to ergonomic control panel inclination. Both manual and automatic mode operation is possible.
• Automatic reminder function for calibration necessity is supported.

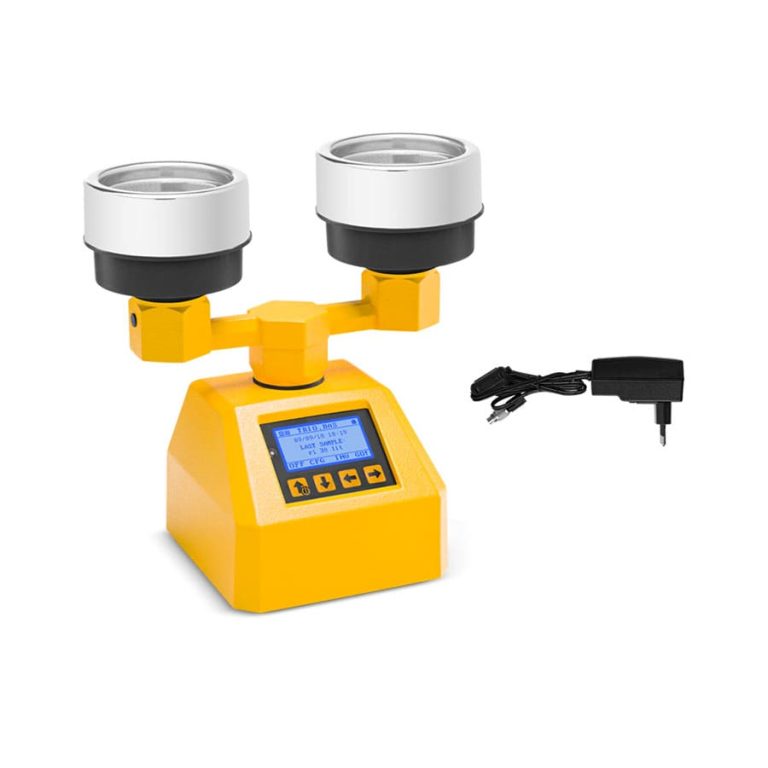

• Sampling data is transferred via Bluetooth to smartphone or tablet running Android, with subsequent transfer to PC/laptop through specialized software. Wired data transfer is also possible. Instrument battery is recharged via cable connected directly to the device.
• Air flow up to 200 l/min allows reducing operator workload and accelerating control process.
• Use of sterile disposable “Daily Shift” aspirating heads reduces cross-contamination risk and ensures availability of individual sterility certificate required for inspector verification.
• Barcode module with Bluetooth scanner automatically registers operator, location and used plates. Data is transmitted directly to the instrument. Solution is convenient for users of plates with barcode or 2D-code (QR).
• LED indicator on the left side of display shows sampling status via different blinking frequency: delay wait, sampling in progress, sampling pause.
• Validated according to EN 17141.

Applications: Pharmaceuticals, cleanrooms, biotechnology, fermentation, medical device manufacturing, food and dairy industries, beverage production, agriculture, catering, cosmetics, aerospace industry, cell technologies.

The ability to use 2 different heads allows:

• To use 2 culture media simultaneously
• To perform sampling BEFORE (at rest), DURING (in operation) and AFTER the work cycle.

Sampling Mode Programming:

• SEQUENTIAL (SEQUENTIAL): The second head starts after the first stops
• SIMULTANEOUS (SIMULTANEOUS): Both heads operate synchronously
• INTERVAL (INTERVAL): Sampling at set time intervals
• CONTINUOUS (CONTINUOUS): The second head starts immediately after the first stops

Technical specifications of TRIO.BAS AIRBIO DUO CABLE

Accessories for TRIO.BAS AIRBIO DUO CABLE

Photo	Model	Description
	520	Ultra-lightweight and compact portable Bluetooth printer with high printing autonomy. Equipped with a paper end sensor and supports printing of the most common barcodes.
	421	TRIO printer paper roll, 57 mm (10 pcs/pack)
	423	Thermal paper rolls, size 57 mm (10 pcs/pack). Indelible thermal paper for TRIO printers.
	294	Bluetooth barcode scanner — dimensions 60x35x15 mm (H), weight 45 g. 1D/2D barcode scanner module (optional, for use in GMP/GLP)
	291	Barcode labels for identifying sampling locations, size 85×55 mm (10 pcs/pack)
	340	Daily Shift sterile replacement suction head for contact cups (55 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs
	341	Daily Shift sterile replaceable aspiration head for Petri dishes (90 mm) — in double sterile packaging (20 pcs/pack), minimum order: 4 packs

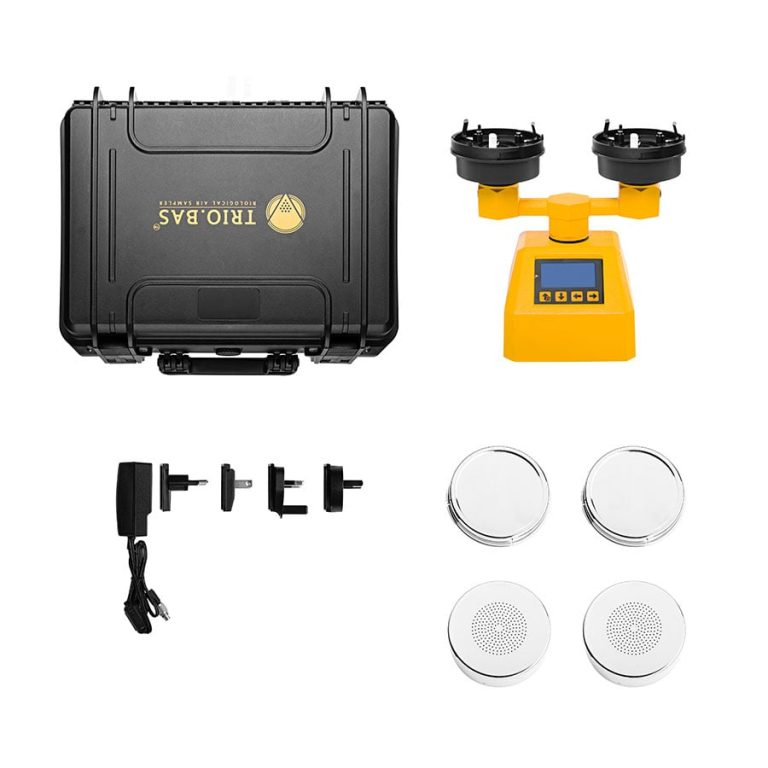

	401	These Carrying cases have very performing characteristics. They ensure the safe transport of the instruments.
	381	Sterile bags, ideal for safe storage and transport of Petri dishes, contact dishes, swabs, or other items outside the clean room
	175	Convenient GLP stainless steel cup holder for clean rooms with a guide for stacking, storing, and transporting culture cups (Petri or contact cups). Used to maintain distance inside the incubator in accordance with GLP.
	180	IN-REST holder. Temporary stand for cups with culture medium and/or their lids, as well as the device’s aspiration heads.
	371	Compact MINI mobile cart with multifunctional holder for clean rooms, convenient for installing a sampler at medium height. It has two shelves, is stable, and easy to use.
	372	MAXI cart with multifunctional holder — stainless steel cart on wheels, complete with table holder and vertical pull-out support with hook. Dimensions: 25x35x70 cm (H) (height adjustment range: 100 to 210 cm). Designed for MONO, DUO, and TRIO models.

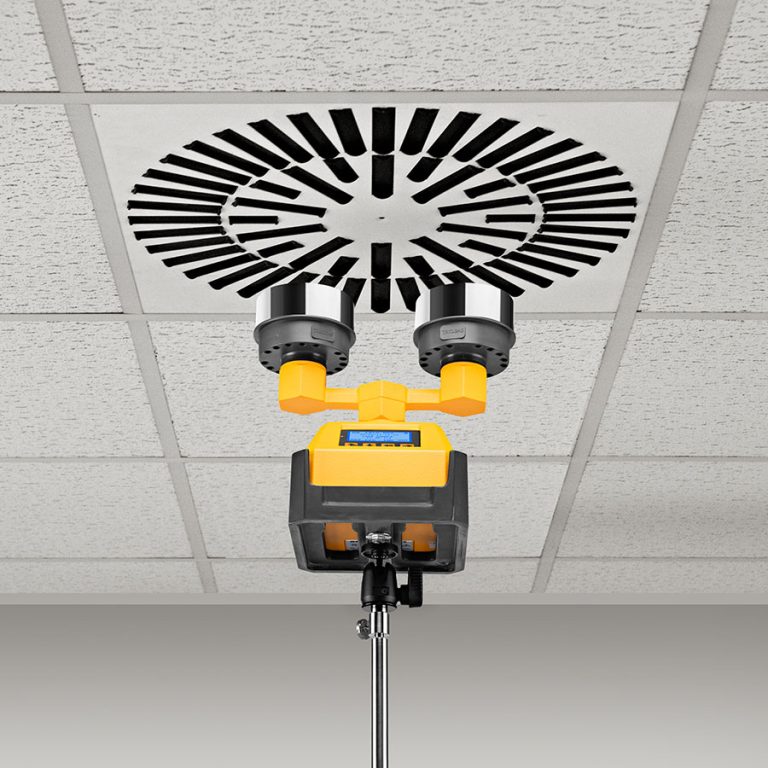

	387	The floor tripod is designed for convenient and safe sampling at medium and high heights. Lightweight and height-adjustable up to 366 cm, it ensures a stable setup of the air sampler and facilitates operator activity with quick fixation without screwing. Ideal for mobile use in areas with hard-to-reach sampling points.
	523	Stainless steel floor stand. Adjustable height from 150 to 200 cm ensures convenient sampling at medium height. Supports direct attachment of the sampler or installation of a holder-stand (optional). A ball joint allows you to fix the device and adjust its position.
	521	Vertical stainless steel hook with handle — for mounting on a table, trolley, or floor stand. Compatible with MINI, MONO, DUO, and TRIO models. Dimensions: 12x15x25 cm (H*).

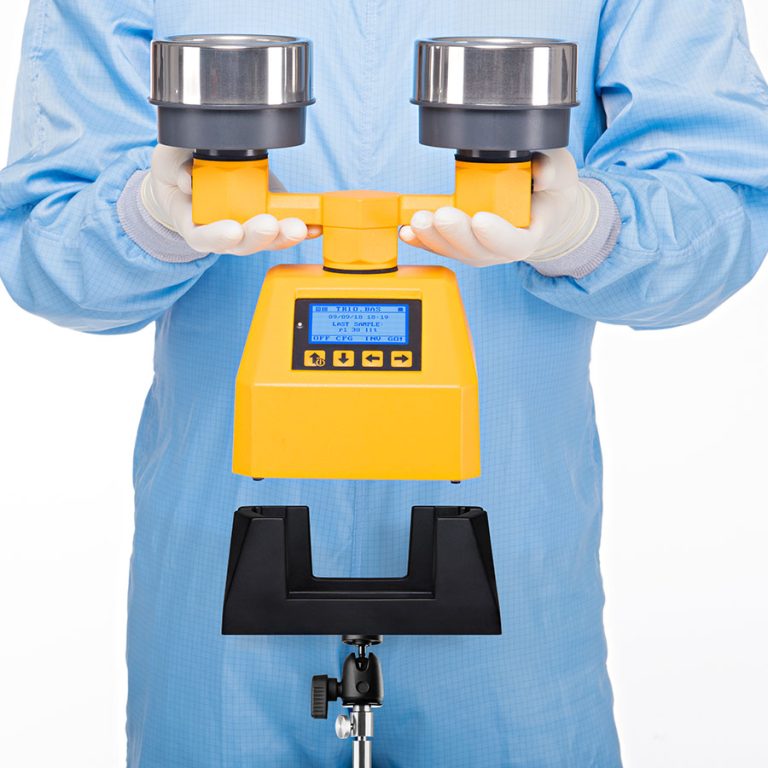

	376	MAXI stand holder. Made of durable high-density technopolymer. Allows for vertical installation of the sampler with one hand. Compatible with any work surface, tripods, and the MINI trolley. Allows for easy charging of the device and replacement of cups without removing them from the mount.
	502	IQ (installation qualification) and OQ (operational qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO
	507	PQ (performance qualification) documents for: DUO, TRIO, MULTISTATION/ISOLATOR, AIRBIO ONE, AIRBIO DUO

Expand Table

Prices for TRIO.BAS AIRBIO DUO CABLE
