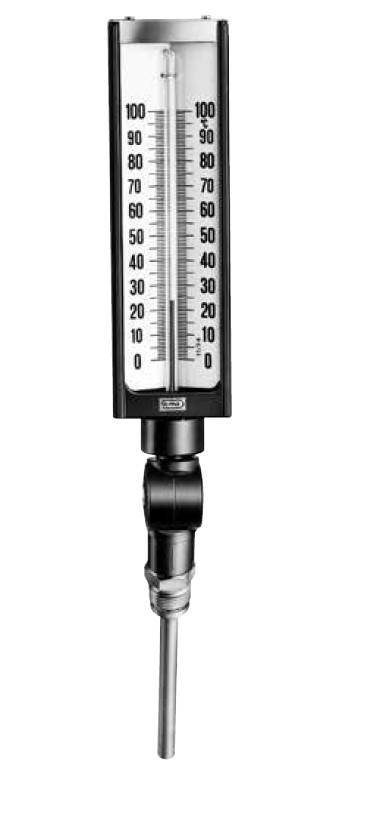

The glass temperature gauges series TV1000, are particularly indicated for those industrial applications (petrochemical, air conditioning, food industry, chemical, etc. ) where there are difficulties of location . The adjustable angle of the stem and the further rotation of the case, permit an infinite range of possible installation allowing to the user to optimize the possibility of reading .
Made in Italy. brand TE.MA., model TV1000
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Dimensions: | type 1001/V 180×55 mm – type 1002/V 250×55 mm |
| Case: | anodized aluminium coloured in blue or black |
| Cover: | glass screw fastener, bright stainless steel |
| Window: | glass or acrylic glass |
| Gasket: | neoprene |
| Dial: | aluminium with blak marking on white background |
| Ranges: | see table |
| Accuracy: | class 1 |
| Capillary material: | high quality glass, colored reflex for temperature up to 400°C , SUPREMAX glass with pressure up to 650 Bar |
| Bulb: | adjustable, stainless steel protected |
| Standard bulb dimensions (L): | 80-120-160-200-320-400 mm |
| Standard connection dimension: | 3/8” 1/2” 3/4” 1” NPT o BSP. |
Ranges
| Type 1002/V 250×55 | Type 1001/V 180×55 | |
| Division °C | Range, °C | Division °C |
| 1/1 | -30-70 | 1/1 |
| 1/1 | -20-80 | 1/1 |
| 1/1 | -20-140 | 2/1 |
| 1/1 | -10-50 | 1/1 |
| 1/1 | 0-80 | 1/1 |
| 1/1 | 0-100 | 1/1 |
| 1/1 | 0-120 | 2/1 |
| 1/1 | 0-160 | 2/1 |
| 2/1 | 0-250 | 5/1 |
Options and accessories
Barstock type or from pipe thermowell with threaded or flanged process connection.
How to order:
Specify: model, range, length L , connection, options if any.
Example: model TV1002/V, 250x55mm, 0/250°C, 110mm, ½”NPTM.
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. TV1000 using the special form.
You can buy TE.MA. TV1000 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. TE.MA. TV1000 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
