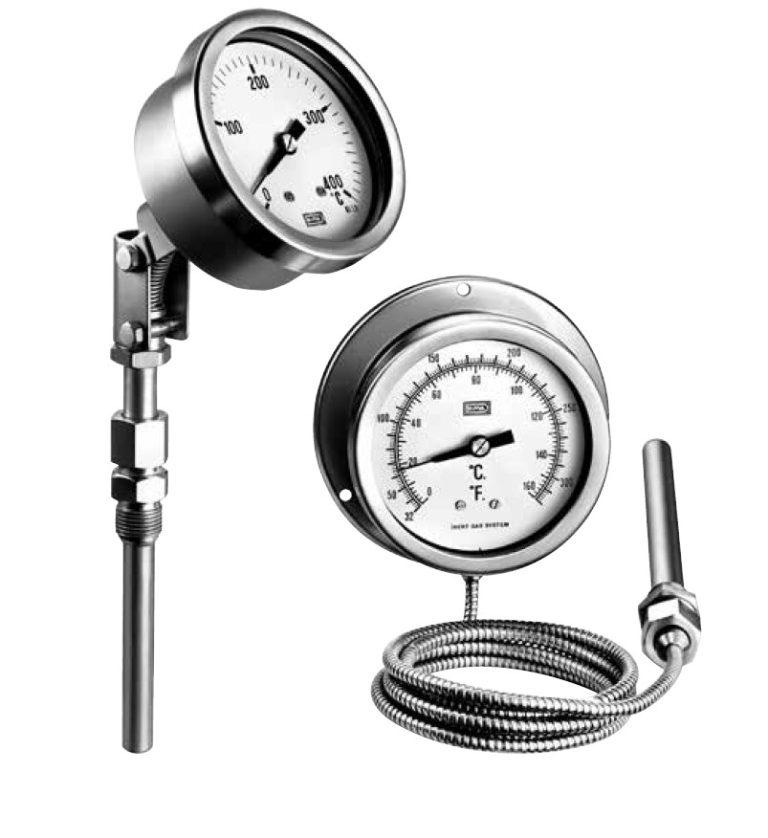

The gas expansion temperature gauges series TM800, may be installed on every chemical, petrochemical plants, onshore and offshore applications and machinery, food and pharmaceutical industry as for EN 13190
Made in Italy. brand TE.MA., model TM800
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Diameters | 63-80-100-125-150-200 mm |
| Case and ring | st. st. 304, bayonet type ring |
| Protection degree | IP55/IP65 (EN60529/IEC529) |
| Window | glass, thickness 4 mm, gasket in neoprene |
| Movement | st. st. |
| Dial | aluminium with black numerals on white background |
| Pointer | aluminium, black painted, micrometric adjustable |
| Filling plug | neoprene, upper |
| Sensing element | helical wound , Cr-Mo steel |
| Measuring principle | inert gas expansion (non toxic) |
| Capillary material | st. st. 316 |
| Bulb material | st. st. 316 |
| Bulb Diameters | Ø 8, 9, 10, 11, 12 mm |
| Welding | T.I.G. |
| Connection dimension | ¼”; ½”; ¾” NPTM o BSP |
| Mounting | direct, bottom lower stem type 801 direct, bottom stem at 45° type 802 direct, bottom stem at 90° type 803 direct, back stem type 804 direct, lower adjustable stem type 809 wall, rear flange remote mounting type 805 bracket for wall mounting , remote, type 806 panel, front flange rear central stem type 807 wall, rear flange rear central stem type 808 panel, “U” clamp, rear eccentric stem type 810 |
| Ranges | see table |
| Overrange | +25% F.S. |
| Accuracy | class 1 |
| Ambient temperature limit | -25/+65°C (-60/+60° C for filled version see options) |
| Temperature drift | 0,05%/°C in range 0/60°C with 3 meters capillary length |
| Construction acc. to ATEX directive 2014/34/EU | CE Ex II 2G Ex h IIC T6..T2 Gb X , II 2D Ex h IIIC T85°C..T450°C Db X. |
Ranges
| °C | -200÷400 | -200÷100 | -120÷40 | -80÷40 | -40÷80 | -40÷60 | -30÷50 | -20÷120 | -20÷60 | -20÷80 | -20÷40 | 0÷60 | 0÷100 |
| °C | 0÷120 | 0÷150 | 0÷160 | 0÷200 | 0÷250 | 0÷300 | 0÷400 | 0÷500 | 50÷450 | 100÷400 | 100÷500 | 200÷600 | 300÷700 |
Double scales and scales in °F available on request.

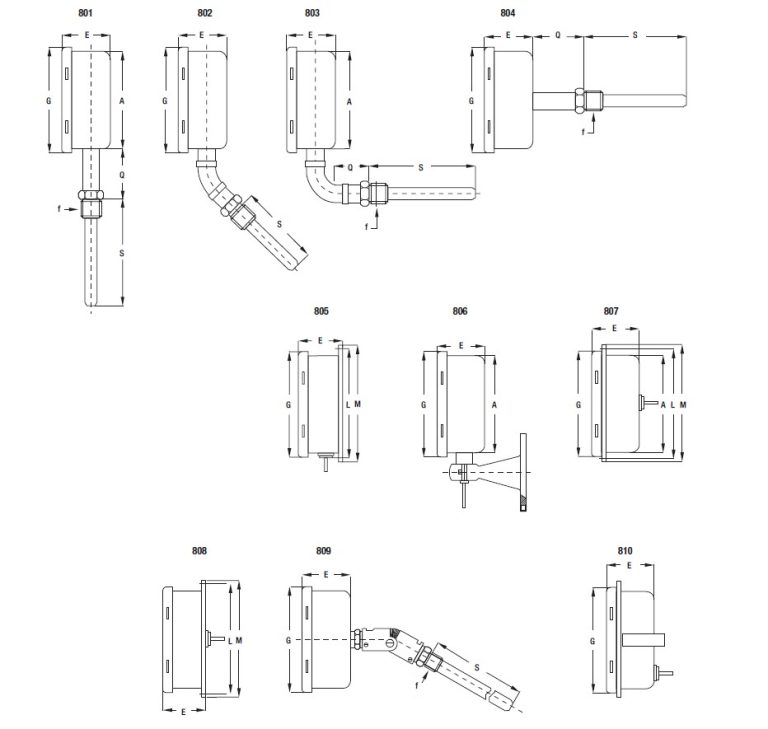

Mounting styles and dimensions
Direct stem
Type 801 bottom connection
Type 802 45° angle
Type 803 90° angle
Type 804 back connection
Type 809 every angle
Remote reading
Type 805 bottom outlet back flange for surface mounting
Type 806 bottom outlet wall mounting
Type 807 back outlet front flange for flush mounting
Type 808 back outlet back flange for surface mounting
Type 810 back outlet U-clamp for flush mounting
Bulbs size
| Ranges °C | -200 | -80 | 40 | 60 | 100 | 150 | 250 | 400 | 500 | 600 |
| S / mm for cylindrical bulb Ø 12 mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 130 |
| S / mm for propeller bulb Ø 18 mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 130 |
| Code | Capillary Tube |
| St. st. | Aisi 316 Stainless steel |
| Aq. | Carbon steel |
| Aq. Vi. | Stainless steel covered with polyvinil cloride |
| Aq. Np. | Stainless steel covered with polychloroprene |
| Aq. fl. Zn. | Carbon steel covered with galvanized steel armor |
| Aq. fl. st. st. | Carbon steel covered with stainless steel armor |
| St. st. fl. st. st. | Stainless steel covered with stainless steel armor |
Options and accessories
How to order:
Specify: model, case diameter, range, type and dimension capillary and bulb , connection, options if any.
Example: model TM804, DN100, 0/250°C, N, ½”NPTM.
