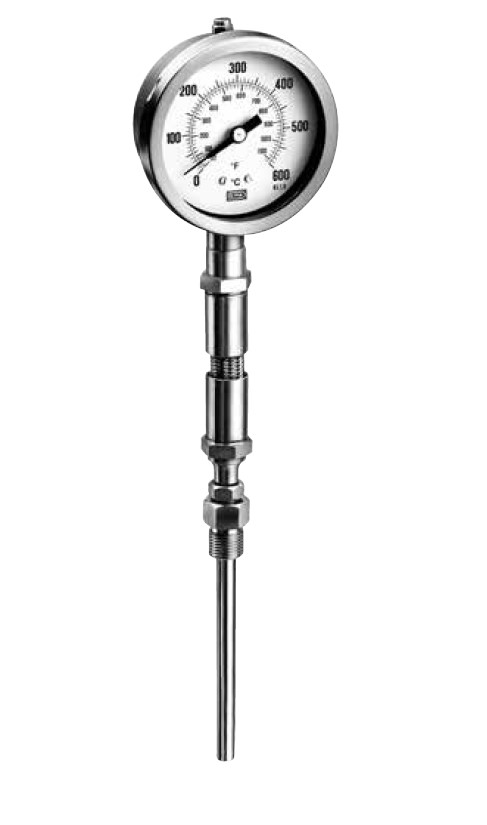

TE.MA. TM700 Thermometer anti-vibrating type

TE.MA. TM700 Thermometer anti-vibrating type
TE.MA. TM700 Thermometer anti-vibrating type

The gas expansion temperature gauges series TM700 are suitable to be installed on engine, machines, or plants in presence of strong vibrations as for EN 13190

			int(23765)
NULL

Made in Italy. brand TE.MA., model TM700

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. TM700

Diameters 100 mm
Case and ring st. st. 304, bayonet type ring
Protection degree IP65 (EN60529/IEC529)
Window glass, thickness 4 mm, gasket in neoprene
Movement st. st., reinforced
Dial aluminium with black numerals on white background
Pointer aluminium, black painted, micrometric adjustable
Filling plug neoprene, upper
Sensing element helical wound, Cr-Mo steel
Measuring principle inert gas expansion (non toxic)
Stem material carbon steel
Bulb material st. st. 316
Elastic support st. st. 304, dimensioned to absorb strong vibrations
Bulb Diameter Ø 12mm
Welding T.I.G.
Connection dimension ½”; ¾” NPTM o BSP
Mounting direct, radial lower stem type 701
Ranges see table
Overrange +25% F.S.
Accuracy class 1
Ambient temperature limit -25/+65°C (-60+60° C for filled version see options)
Temperature drift 0,05%/°C in range 0/60°C
Construction acc. to ATEX directive 2014/34/EU CE Ex II 2G Ex h IIC T6.. T2 Gb X , II 2D Ex h IIIC T85°C..T450°C Db X.
Expand Table

Ranges

°C 0-650 50-600
Expand Table

Double scales in °F available on request.

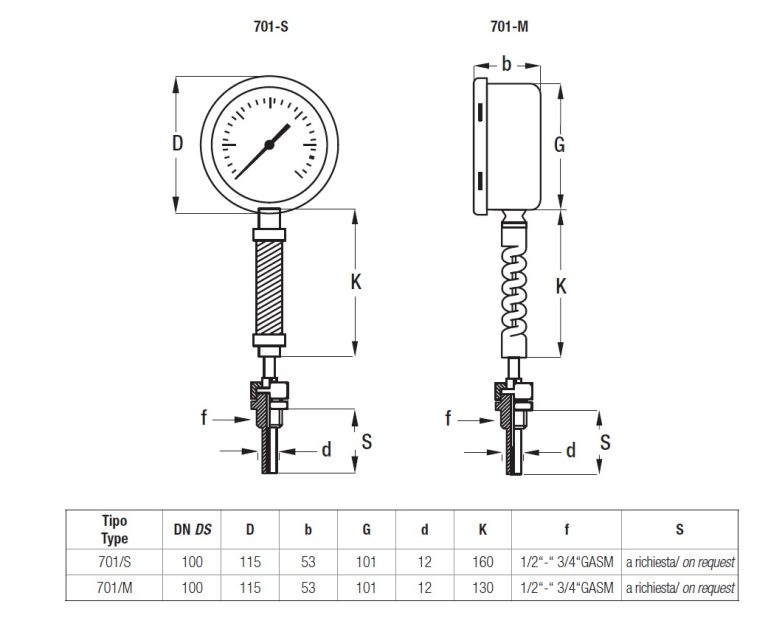

Model Chart TE.MA. TM700

Type DN D b G d K f S
701/S 100 115 53 101 12 160 1/2“-“ 3/4“GASM on request
701/M 100 115 53 101 12 130 1/2“-“ 3/4“GASM on request
Expand Table

Options

  • Special scale
  • Safety glass window thickness 4 mm
  • Glycerine filling 90% for amb.T. 0÷65°C
  • Glycerine filling 98% for amb.T.-15÷65°C
  • Silicon oil filling for amb.T. -50÷65°C
  • Filling with fluorinated oil suitable for use with oxygen and for ambient temperature -60÷60°C
  • Barstock type or built-up thermowell with threaded or flanged process connections.

How to order:

Specify: model, case diameter, range, ”S” length, connection, options if any.
Example: model TM701/S, DN100, 0/650°C, 130mm, ½”GM.
