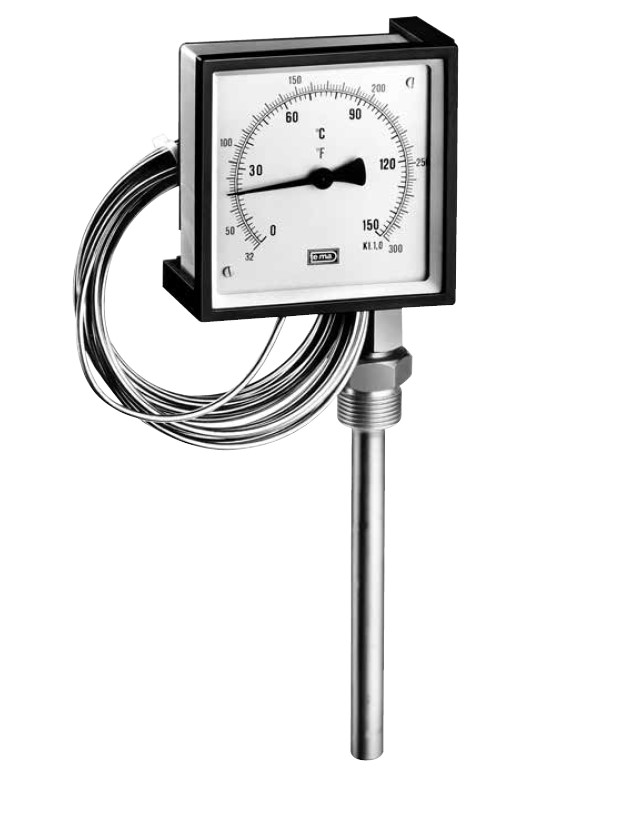

The gas expansion temperature gauges series TM400 are specific for panel mounting with standard case dimensions suitable for mounting in parallel with electric indicators.
Made in Italy. brand TE.MA., model TM400
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Diameters | 144×144; 144×72; 96×96 mm |
| Case and ring | black painted st. st. with ring in plastic |
| “U” type bracket | Zinc plated steel |
| Protection degree | IP55/IP65 (EN60529/IEC529) |
| Window | glass, thickness 4 mm, gasket in neoprene |
| Movement | st. st., reinforced |
| Dial | aluminium with black numerals on white background |
| Pointer | aluminium, black painted, micrometric adjustable |
| Sensing element | helical wound, Cr-Mo steel |
| Measuring principle | inert gas expansion (non toxic) |
| Capillary material | st. st. 316 |
| Bulb material | st. st. 316 |
| Buld Diameters | Ø 8, 9, 10, 11, 12 mm |
| Welding | T.I.G. |
| Connection dimension | ¼”; ½”; ¾” NPTM o BSP |
| Models | dimension 144×144 and 96×96 type 401 dimension 96×96 with dampening fluid type 402 dimension 144×72 type 403 |
| Ranges | see table |
| Overrange | +25% F.S. |
| Accuracy | class 1 |
| Ambient temperature limit | -25/+65°C |
| Temperature drift | 0,05%/°C in range 0/60°C with 3 meters capillary length |
| Construction acc. to ATEX directive 2014/34/EU | CE Ex II 2G Ex h IIC T6..T2 Gb X , II 2D Ex h IIIC T85°C..T450°C Db X |
Ranges
| °C | -200-400 | -200-100 | -120-40 | -80-40 | -40-80 | -40-60 | -30-50 | -20-120 | -20-60 | -20-80 | -20-40 | 0-60 | 0-100 |
| °C | 0-120 | 0-150 | 0-160 | 0-200 | 0-250 | 0-300 | 0-400 | 0-500 | 50-450 | 100-400 | 100-500 | 200-600 | 300-700 |
Double scales and scales in °F available on request.

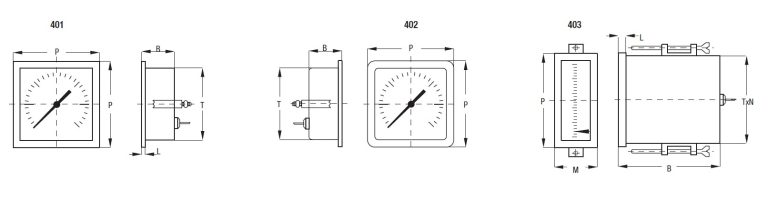

| Type | Dimensions | P | B | L | M | T | N |
| 401 | 144×144 | 144 | 51 | 8 | – | 135 | – |
| 401 | 96×96 | 98 | 49 | 8 | – | 90 | – |
| 402 | 96×96 | 98 | 49 | 8 | – | 90 | – |
| 403(1) | 144×72 | 146 | 144 | 8 | 72 | 120 | 120 |
(1)“V” = vertical mounting
”O”= horizontal mounting
AMPIEZZA Range °C
| S/mm for bulb Ø 12 mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 130 |
| S/mm for bulb Ø 18 mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 130 |
Options and accessories
How to order:
Specify: model, case dimensions, range, type and dimension capillary and bulb, connection, options if any.
Example: model TM403, 144×72, 0/250°C, N, ½”NPTM, Horizontal.
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. TM400 using the special form.
