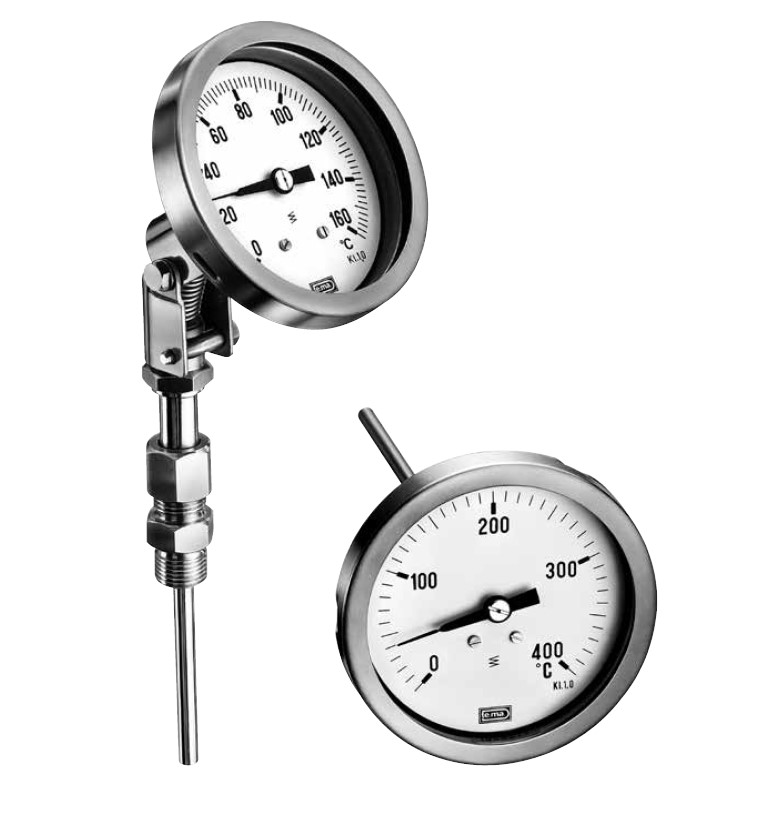

The bimetal type temperature gauge series TB900, are made of two cold welded metal strips with different thermal expansion coefficient . They may be installed on every chemical, petrochemical plants, onshore and offshore applications, machinery, food and pharmaceutical industry
Made in Italy. brand TE.MA., model TB900
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Diameters | 80-100-130-150 mm (3-4-5-6”) |
| Case and ring | st. st. series 300, bayonet type ring |
| Protection degree | IP56 (EN60529/IEC529) |
| Window | glass, thickness 4 mm, gasket in neoprene |
| Movements | st. st., reinforced |
| Dial | aluminium with black numerals on white background |
| Pointer | aluminium, black painted, micrometric adjustable |
| Sensing element | cold welded bimetal coil |
| Bulb material | st. st. 316 |
| Bulb diameter | Ø 6; 8; 9 mm |
| Welding | T.I.G. |
| Connection dimension | ¼”; ½”; ¾” NPTM o GASM |
| Mounting | direct, radial lower stem type 911 direct, back stem type 914 direct, back adjustable stem type 910 |
| Ranges | see table |
| Overrange | +30% F.S. |
| Accuracy | class 1 |
| Ambient temperature limit | -25/+65°C (-60/+60 °C for filled version see options) |
| Limit | can be used for continuos service up to 400°C and for intermittent service between 400 and 500°C |
| Construction ac. to ATEX 2014/34/EU | CE Ex II 2G Ex h IIC T6..T2 Gb X , II 2D Ex h IIIC T85°C..T450°C Db X. |
Ranges
| Scale°C | -50-50 | -20-40 | -20-80 | -10-50 | 0-40 | 0-50 | 0-60 | 0-80 | 0-100 | 0-120 | 0-150 | 0-200 | 0-250 | 0-300 | 0-400 | 0-500 | ||
| Limit dimensions “S” |
Ø 6 | min. | 110 | 200 | 110 | 200 | 300 | 300 | 200 | 150 | 110 | 100 | 100 | 150 | 150 | 150 | 150 | 150 |
| max | 600 | 350 | 600 | 350 | 350 | 350 | 350 | 350 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | ||
| Ø 8 | min. | 95 | 150 | 95 | 150 | 200 | 200 | 150 | 100 | 95 | 75 | 70 | 95 | 95 | 150 | 150 | 150 | |
| max | 600 | 350 | 600 | 350 | 350 | 350 | 350 | 350 | 600 | 600 | 600 | 1000 | 1000 | 1000 | 1000 | 1000 | ||
| Ø 9 | min. | 83 | 114 | 83 | 114 | 190 | 190 | 114 | 91 | 83 | 69 | 65 | 86 | 86 | 100 | 150 | 150 | |
| max | 600 | 350 | 600 | 350 | 350 | 350 | 350 | 350 | 600 | 600 | 600 | 1000 | 1000 | 1000 | 1000 | 1000 | ||
Double scales and scales in °F available on request.
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. TB900 using the special form.
You can buy TE.MA. TB900 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. TE.MA. TB900 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
