TE.MA. SEP538

Photo TE.MA. SEP538 Specifications TE.MA. SEP538 User Manual for TE.MA. SEP538 Related instruments to TE.MA. SEP538

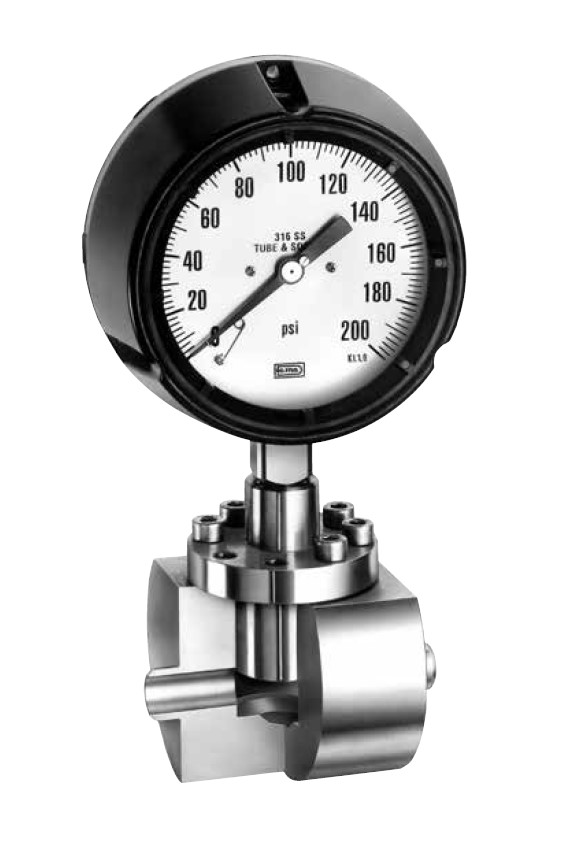

TE.MA. SEP538 Diaphragm seal in line

TE.MA. SEP538 Diaphragm seal in line
TE.MA. SEP538 Diaphragm seal in line
TE.MA. SEP538 Diaphragm seal in line
TE.MA. SEP538 Diaphragm seal in line
TE.MA. SEP538 Diaphragm seal in line
TE.MA. SEP538 Diaphragm seal in line

Suitable to be mounted directly on pipes and for ranges from -1 bar up to 250 bar.
The seal type SEP538SM gives the possibility of locating the diaphragm seal so that it can be welded in between a pipeline from up to 1 diameter ; the type SEP538TM is suitable for a pipe of 1 up to 4″ diameter and the type SEP538LF is for fitting the diaphragm seal for pipe 1 ” up to 4″diameter.

Further more there is a type LP specially designed for low pressure from -1 up to 6 bar.

			int(23715)
NULL

Made in Italy. brand TE.MA., model SEP538

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. SEP538

Model Chart

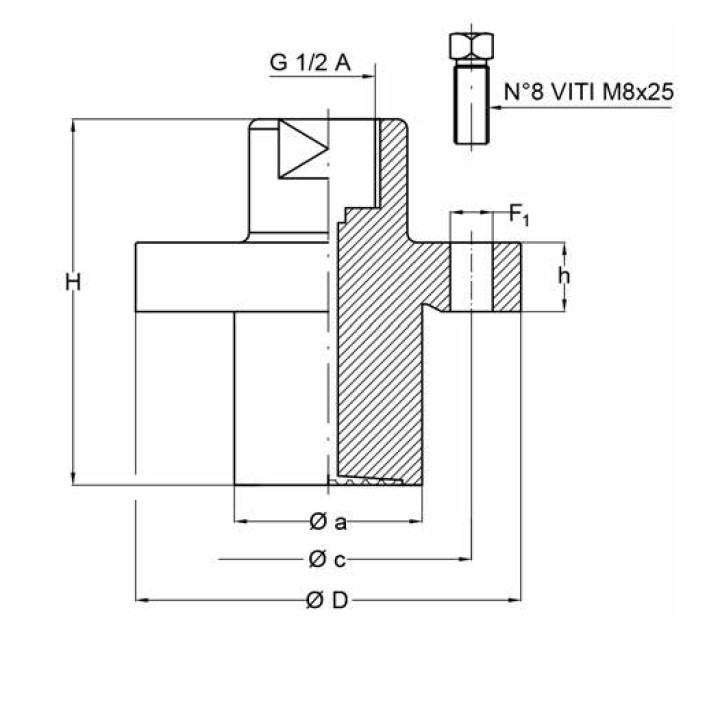

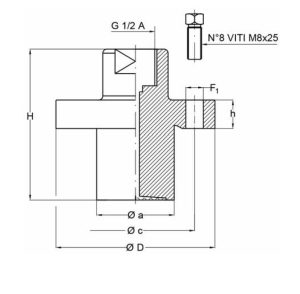

1) SEP538IL – In line diaphragm seal

Seals jointed and fixed at the instruments by welding. In remote mounting if seal and instrument not to be on equal level, is necessary to reset the instrument in field.
Remote reading.
Type cappillary max L = 6 m.

Type h H a c D F1
SEP538IL 15 75 38 58 78 8,5
Expand Table
Type capillary Code
Uncoated (AISI 316) St.st.
With braiding (AISI 316 + AISI 304) St.st. FL St.st.
With braiding + PVC (AISI 316 + AISI 304) St.st. FL Vi
Expand Table

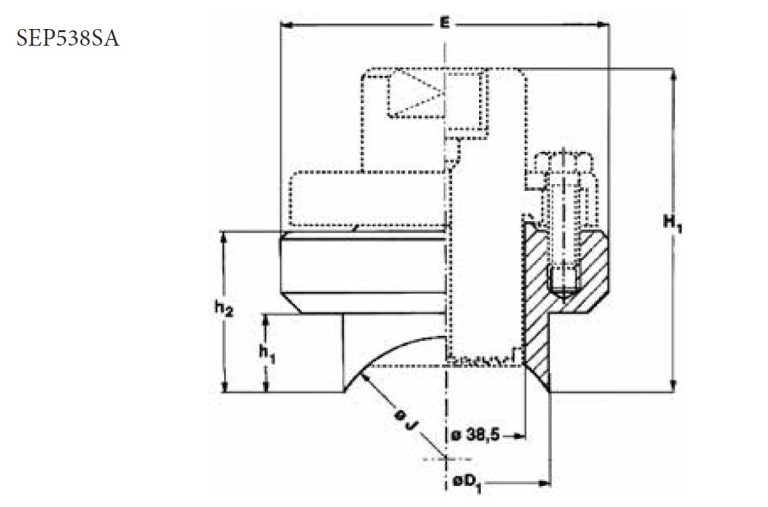

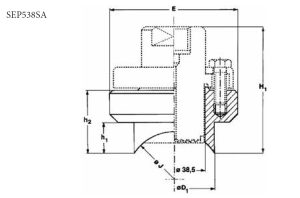

2) SEP538SA – Saddle types flanges to be welded on pipe wall

Welding connection on pipe DN 2” – 4”
PN: 250 Bar max, suitable on pipe
Process connection: suitable to be welded on the pipe wall
DN 2” – 3” – 4”
Body: st. st. 316.

DN h1 h2 H1 D1 E J
2” (50) 28,5 48,5 87,5 55 80 60,3
3” (80) 23,5 43,5 82,5 65 80 88,9
4” (100) 23 43 82 75 80 114,3
Expand Table

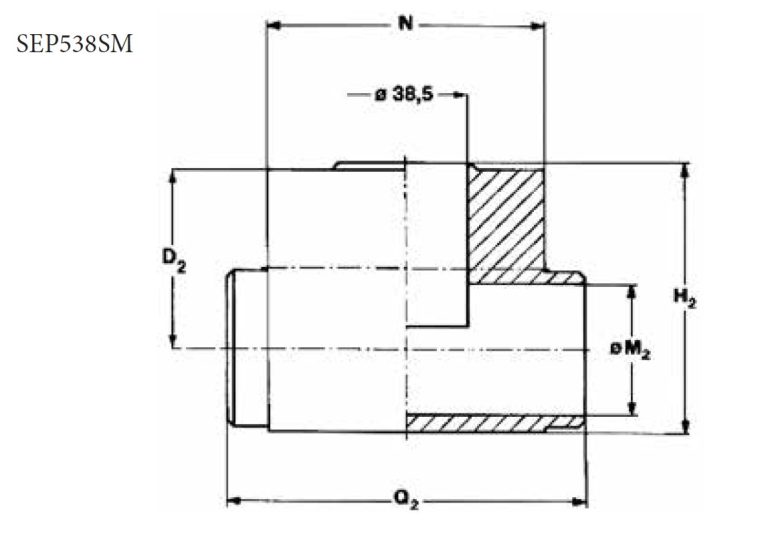

3) SEP538SM

PN: 250 Bar max, suitable on pipe
Process connection: welding connection on pipe DN 1/2” ¾” 1”
Body: st. st. 316.

DN H2 Q2 N D2 M2*
1/2” (15) 83 110 80 43 15,8
3/4” (20) 83 110 80 45,5 20,9
1” (25) 83 110 80 48,5 26,6
Expand Table

* pipe dimensions according to ANSI B31.1 SCH 40S

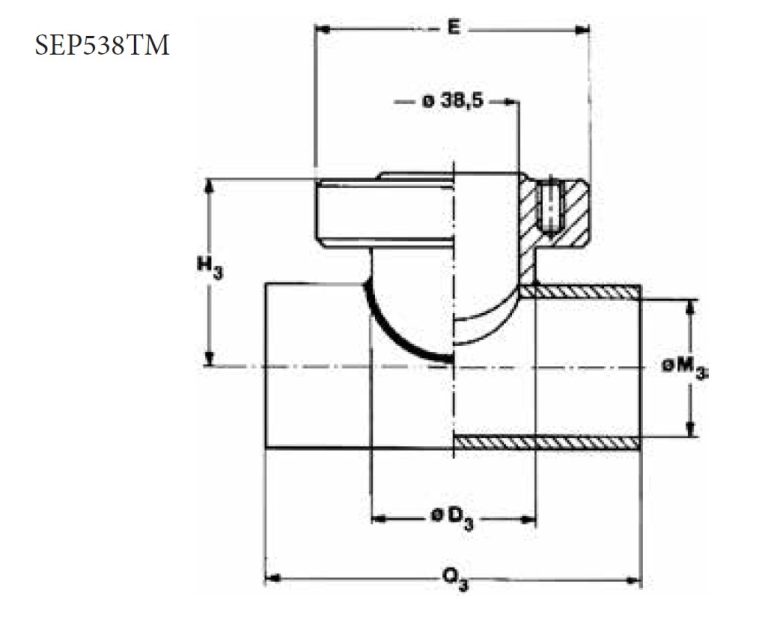

4) SEP538TM

PN: 250 Bar max, suitable on pipe
Process connection: welding connection on pipe DN 1 1/2” 2” 3” 4”
Body: st. st. 316.

DN H3 Q3 E D3 M3
1 1/2” (40) 55,5 110 80 448 40,9
2” (50) 61 110 80 55 52,5
3” (80) 74 110 80 65 77,9
4” (100) 86 110 80 75 102,3
Expand Table

* pipe dimensions according to ANSI B31.1 SCH 40S

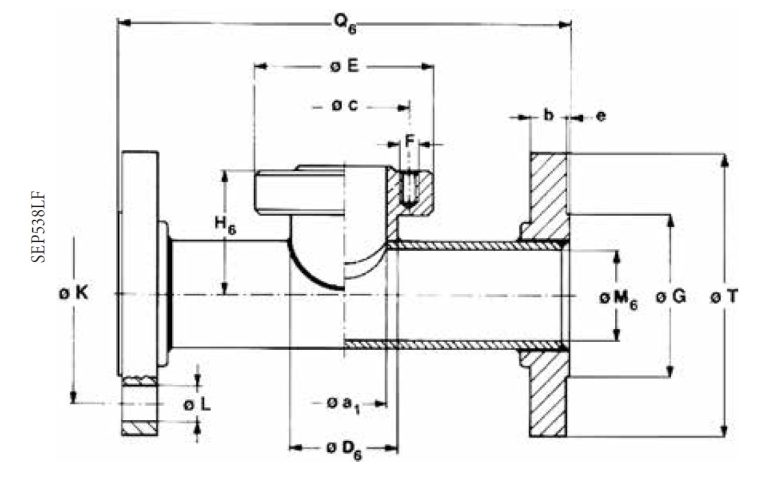

5) SEP538LF

PN: 100 Bar max, suitable on the flanges used
Process connection: UNI – DIN DN 40 – 50 PN 10 – 100; 1 1/2” 2” class 150 – 900 RF according to ANSI B16,5
Body, pipe and flanges: st. st. 316.

E c a1 F F (n° )
80 58 38,5 M8 8
Expand Table

DIN FLANGES CONNECTIONS UNI – DIN SPECIFICATIONS (in parentheses dimensions according to DIN)

DN PN-Bar (1) T G M6(3) K L b e H6 D6 N (2) Q6
40 10-16 150 88 40,9 110 18 13 3 55,5 48 4 220
40 25-40 150 88 40,9 110 18 15 3 55,5 48 4 230
40 64-100 170 85 (88) 40,9 125 22 23 3 55,5 48 4 270
50 10-16 165 102 52,5 125 18 15 3 61 55 4 255
50 25-40 165 102 52,5 125 18 17 3 61 55 4 260
50 64 180 95 (102) 52,5 135 22 23 3 61 55 4 290
50 100 195 95 (102) 52,5 145 26 25 3 61 55 4 300
Expand Table

FLANGES CONNECTIONS ANSI SPECIFICATIONS

DN PN-PSI T G M6 K L b e H6 D6 N Q6
1 1/2″ 150 127 73 40,9 98,4 16 15,9 1,6 55,5 48 4 205
1 1/2″ 300 155,5 73 40,9 114,3 22 19 1,6 55,5 48 4 220
1 1/2″ 600 155,5 73 40,9 114,3 22 22,5 6,3 55,5 48 4 230
1 1/2″ 900 178 73 52,5 123,8 29 32 6,3 61 55 4 300
2″ 150 152,5 92,1 52,5 120,6 19 17,5 1,6 61 55 4 230
2″ 300 165 92,1 52,5 127 19 20,9 1,6 61 55 8 250
2″ 600 165 92,1 52,5 127 19 25,5 6,3 61 55 8 260
2″ 900 216 92,1 52,5 165,1 26 38,2 6,3 61 55 8 320
Expand Table

(1) Pressure must not exceed 1,5 times flange’s rating from 20-30°C and 1 time rating 340°C
(2) N° trough holes
(3) Pipe dimensions according to ANSI B31.1 SCH 40S

Flanges for type LF are manufactured according to ANSI or DIN specifications.
Dimension Q in the drawings can be changed according to process requirements. The accuracy of the seal at 20°C, when directly mounted is ±0,5% and when indirectly mounted (through a capillary) is ±1%

Options

  • Upper part: hastelloy-C, titanium, monel, tantalum
  • Diaphragm: hastelloy-C, titanium, monel, tantalum, nickel
  • Filling fluid: fluorate fluid
  • Temperature: max 350°C
  • Lower part: PTFE, PFA FEP PVDF.

How to order: Please specify: code and dimensions, range, process temperature, materials, options if any.
Example: model SEP 538TM 2” – 0/16Bar – 200°C – st.st. 316L
