TE.MA. SEP536/S

Photo TE.MA. SEP536/S Specifications TE.MA. SEP536/S Model Chart TE.MA. SEP536/S User Manual for TE.MA. SEP536/S Related instruments to TE.MA. SEP536/S

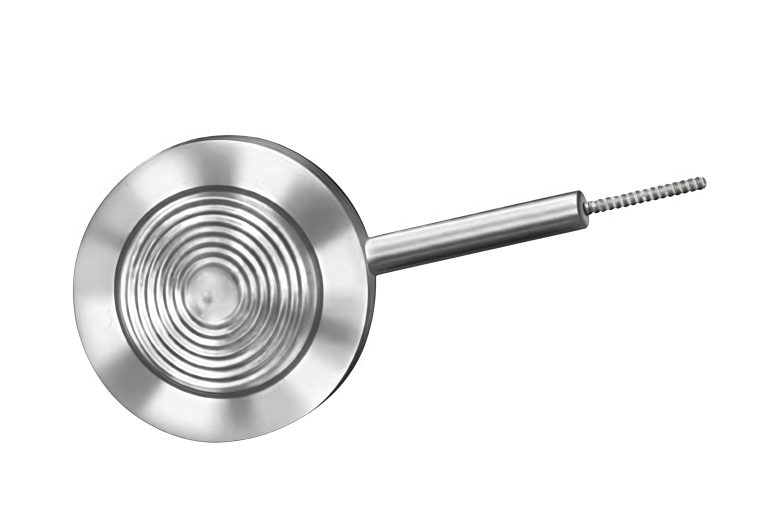

TE.MA. SEP536/S Cell-type (sandwich) diaphragm seal

TE.MA. SEP536/S Cell-type (sandwich) diaphragm seal
Chemical seal with welded diaphragm suitable for mounting between flanges
			int(23704)
NULL

Made in Italy. brand TE.MA., model SEP536/S

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. SEP536/S

Cell standard material: st. st. 316, others upon customer request
Flanged: DIN ANSI, ASME or JIS specifications
Diaphragm: material standard st. st. 316L. St. st. 316 Ti, titanium, monel, hastelloy-C, tantalum diaphragm are also available
Temperature limits: -30 to +250°C
Accuracy: at 20°C or at temperature stated when ordering: ±1% capillary length max 6 m
Expand Table

Model Chart TE.MA. SEP536/S

DIN 2512 – FORM N (dimensions in mm)

DN PN d K b
50 16….40 60 102 18
80 16….40 75,4 138 18
100 16….40 90 162 18
125 16….40 124 188 18
Expand Table

DIN ANSI B 16.5 RTJ (dimensions in mm)

DN Pressure class dD d4 b P E F
2″ 150 63 102 24 82⁵ 6⁴ 8⁷
300/600 63 108 24 82⁵ 7⁹ 11⁹
900/1500 63 124 24 95² 7⁹ 11⁹
2500 63 133 24 101⁶ 7⁹ 11⁹
3″ 150 63 133 24 114³ 6⁴ 8⁷
300/600 63 146 24 123⁸ 7⁹ 11⁹
900 63 156 24 123⁸ 7⁹ 11⁹
1500 63 168 24 136⁵ 7⁹ 11⁹
2500 63 168 24 127 9⁵ 13⁵
Expand Table

DIN 2514 – FORM V (dimensions in mm)

DN PN dD d₄ b d₄₁ f₂ d₄₄ f₃ a
50 16…40 63 102 20 72 2 88 4 41
80 16…40 63 136 20 105 2 121 4 41
100 16…40 63 162 20 128 2,5 150 4,5 32
125 16…40 63 188 22 154 2,5 176 4,5 32
Expand Table

DIN 2513 – FORM V13 (dimensions in mm)

DN PN dD d₄ b d₄₃ f₁
50 16…40 63 102 22 87 4
80 16…40 63 136 22 120 4
100 16…40 63 162 23 149 4,5
125 16…40 63 188 23 175 4,5
Expand Table

How to order: Please specify: code and dimensions, range, process temperature, materials, options if any.
Example: model SEP 536 S – 3” – 0/16Bar – 200°C – AISI 316L – PTFE

User Guide and Instruction manual for TE.MA. SEP536/S

You can request the necessary certificates, documentation, instructions and user guide for TE.MA. SEP536/S using the special form.

You can buy TE.MA. SEP536/S in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email . TE.MA. SEP536/S price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
