TE.MA. SEP536/N/T/U

Photo TE.MA. SEP536/N/T/U Specifications TE.MA. SEP536/N/T/U Model Chart TE.MA. SEP536/N/T/U User Manual for TE.MA. SEP536/N/T/U Related instruments to TE.MA. SEP536/N/T/U

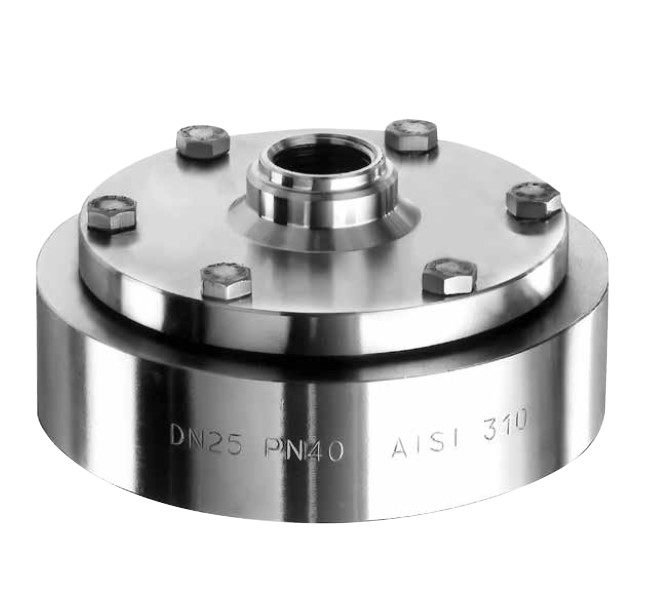

TE.MA. SEP536/N/T/U Chemical diaphragm seal

TE.MA. SEP536/N/T/U Chemical diaphragm seal
TE.MA. SEP536/N/T/U Chemical diaphragm seal
Compact chemical seal with flanged process connection ASA or DIN, internal welded diaphragm suitable for dismounting and internal washing of the chemical seal
			int(23699)
NULL

Made in Italy. brand TE.MA., model SEP536/N/T/U

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. SEP536/N/T/U

Diaphragm: st. st. 316L
Sealing ring: Viton x T. max 250°C, Inconel / silver x T. max 400°C
Welding: T.I.G.
Top Housing: st. st. 316
Bottom housing: st. st. 316 flanged UNI DIN or ASME ANSI B 16,5
Ranges: -1/0 – 0/60 Bar
Temperature limits: -40 to +200°C
Accuracy: at 20°C or at temperature stated when ordering: ±0,5% for direct line, ±1 % for flexible line.
Expand Table

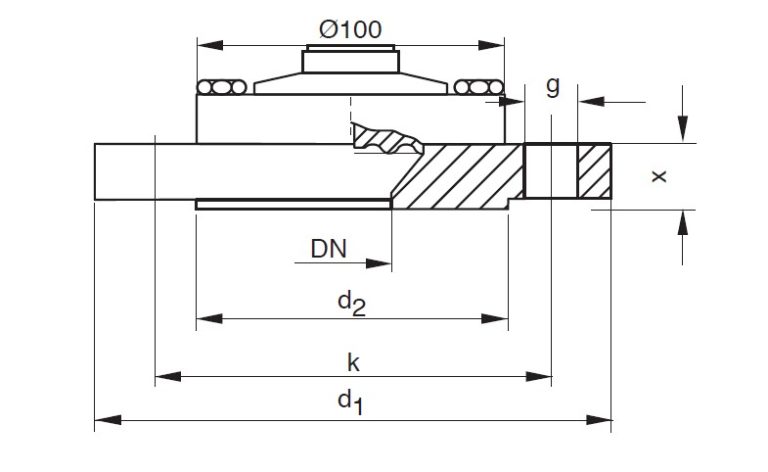

Model Chart TE.MA. SEP536/N/T/U

Type DN PM d₂ K d₁ g b Weight
kg
N 50 40 Bar 102,0 125,0 165,0 4 x M18 20,0 4,2
T 2″ 150 lbs 92,1 121,0 152,0 4 x 5/8 – 18UNF-2B 19,1 4,4
R 2″ 600 lbs 92,1 127,0 165,0 8 x Ø19 32,0 4,8
Expand Table

Flanges with other dimensions are available upon customer request.

Options

  • Diaphragm: st. st. 316 L + PTFE, hastelloy-C, st. st. 316 Ti, titanium, monel, tantalum, nickel
  • Bottom housing: Aq50 + PTFE, hastelloy-C
  • Capillary tube: st. st. 316 or covered st. st. flexible max length 6 m.

How to order: Please specify: code and dimensions, range, process temperature, materials, options if any.
Example: model SEP 536 N – 0/16Bar – 200°C – AISI 316L – PTFE

User Guide and Instruction manual for TE.MA. SEP536/N/T/U

You can request the necessary certificates, documentation, instructions and user guide for TE.MA. SEP536/N/T/U using the special form.

You can buy TE.MA. SEP536/N/T/U in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email . TE.MA. SEP536/N/T/U price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.

See also: Diaphragm Seals
