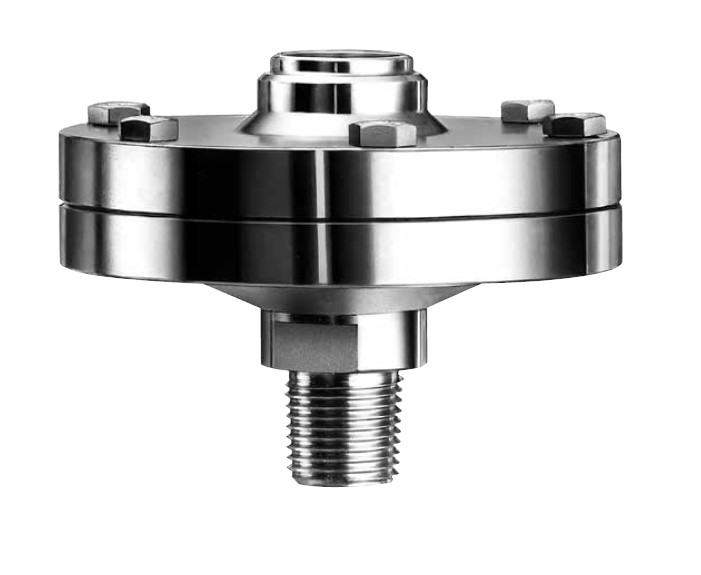

TE.MA. SEP536/F Diaphragm seal with thread connection

TE.MA. SEP536/F Diaphragm seal with thread connection
TE.MA. SEP536/F Diaphragm seal with thread connection
Compact chemical seal with threaded process connection and internal welded diaphragm suitable for dismounting and internal washing of the chemical seal .
			int(23689)
NULL

Made in Italy. brand TE.MA., model SEP536/F

Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.

price by request

Available

Available

Advantages

Official distributor in Latvia

Time-tested American, European and Asian brands of control and measurent instruments

Advantages

Special price list for organisations

We offer a significant discount for trade organisations and manufacturing companies

Advantages

Worldwide shipping on request

We take care of all logistics and customs clearance. Fast delivery to Baltic countries

Advantages

After-sales service and support

Warranty service and repair, expert assistance in the operation of the instruments

Technical specifications of TE.MA. SEP536/F

Seal: st. st. 316
Sealing ring: Viton x T. max 250°C, Inconel / silver x T. max 400°C
Welding diaphragm: st. st. 316L
Welding: T.I.G.
Ranges: -1/0 – 0/60 Bar
Temperature limits: -40 to +250°C
Accuracy: at 20°C or at temperature stated when ordering: ±0,5% for direct line, ±1 % for flexible line

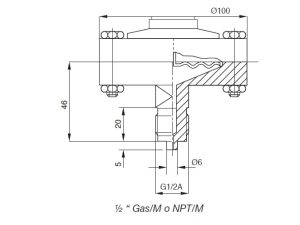

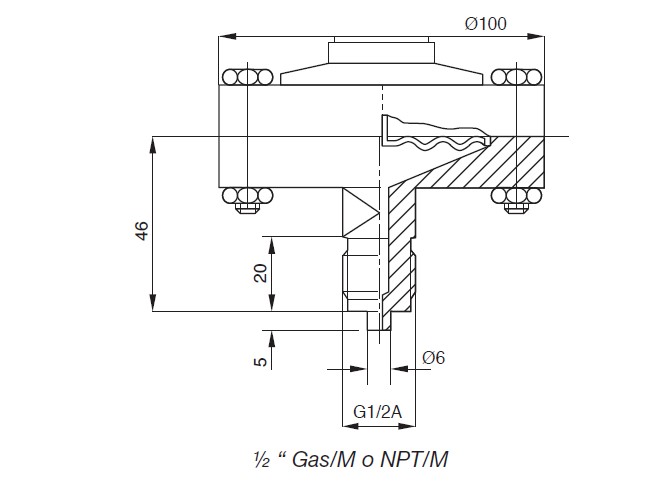

Process connection: 1/2” threaded Gas or NPT-M
Flushing connection: 1/8” NTP upon request.
Expand Table

Options

  • Diaphragm material: st. st. 316 Ti, titanium, monel, hastelloy-C, tantalum, nickel
  • Bottom housing: st. st. 316 covered PTFE, PVC, monel, hastelloy-C, PVDF
  • Capillary tube: st. st. 316 or covered st. st. flexible max length 6 m
  • Ranges: 0/400Bar mod. SEP536/HP
  • Manufacture on request.

How to order: Please specify: code, range, options and accessories, options if any.
Example: model SEP 536 F 0/16Bar – 200°C – AISI316L – PTFE
