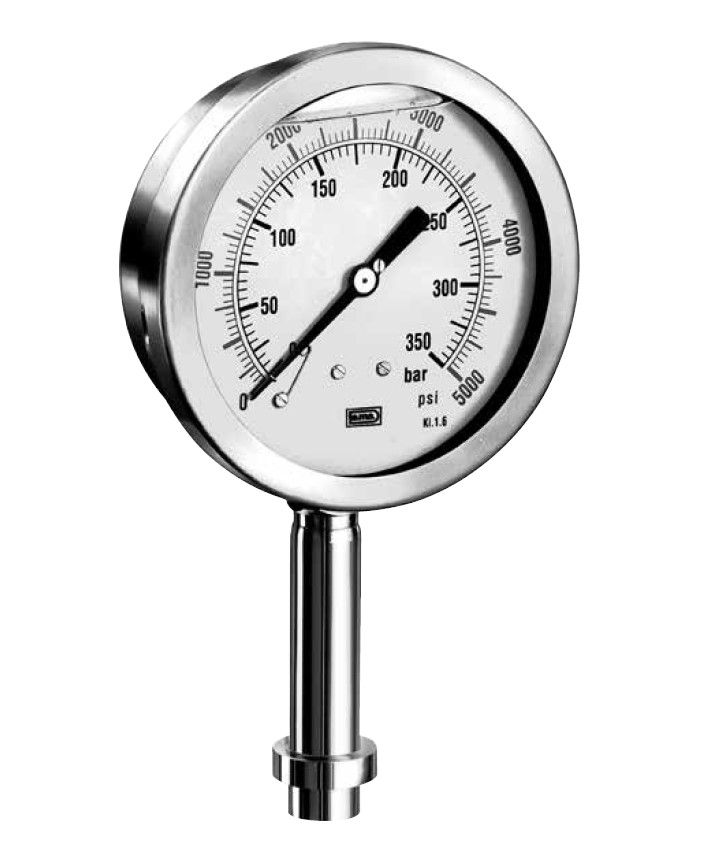

Made in Italy. brand TE.MA., model SEP533
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Design | EN837-2 SI |
| Case and bayonet ring | st. st. 304 |
| Case filling liquid | glycerine 99,5% (USP, E.P. and F.U.) for food service |
| Protection | IP67 |
| Window | safety-glass |
| Pointer | aluminium black anodized |
| Dial | aluminium, white with black markings |
| Ranges | from 0/160Bar up to 0/1600Bar (or equivalent units) |
| Accuracy | class 1,6 for EN 837-1 |
| Ambient temperature | -25 / +65°C |
| Process temperature | -20 / +120°C, for 1 hour during cleaning stage (C.I.P) and sterilization (S.I.P) |
| Working pressure | max75% fsv |
| Over pressure limit | not available |
| Seal fill | oil for food service |
| Process connection | st. st. 316L with Ra ≤0,8μm-32μin (150Grit) finishing |
| Diaphragm | st. st. 316L |
| Welding | TIG. |
Option – Window safety glass, output 4 / 20mA.
How to order: Please specify: code, range, options and accessoriesy.
Example: model SEP533 – 0/250Bar – 50°C
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. SEP533 using the special form.
You can buy TE.MA. SEP533 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. TE.MA. SEP533 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
See also: Diaphragm Seals
