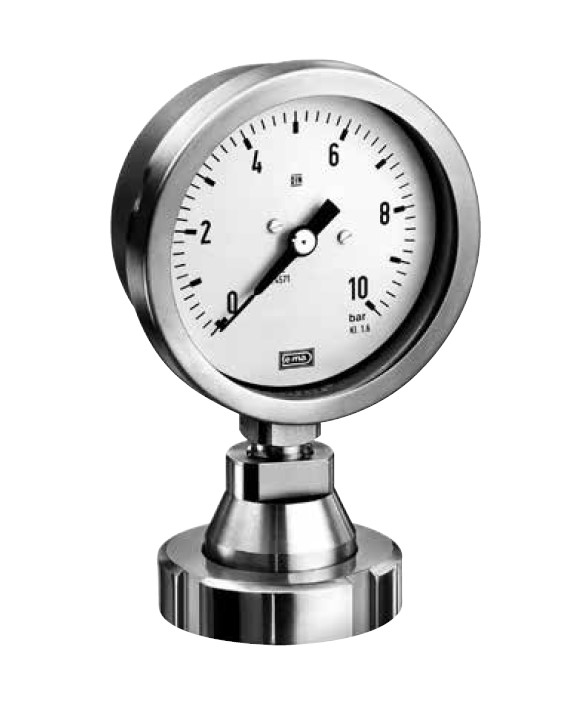

Made in Italy. brand TE.MA., model SEP531
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
| Process connection | electro polished st. st. 316 st. st. with following fitting: DN 25, 32, 40, 50, 65, 80 |
| Diaphragm | electro polished st. st. 316L st. st. TIG welded |
| Suitable pressure ranges | -1…0 a 0…40 Bar |
| Seal fill | non toxic oil for food service FDA approved |
| Ambient temperature | -25 / +65°C (+15 / +65°C for liquid filled types) |
| Process temperature | -20°C…+100°C; Max 140 °C for 30 minutes during cleaning stage (C.I.P.) 1 and sterilization (S.I.P)2. |
| Accuracy | at 20°C of process fluid temperature, or to specify on order (to added at the instrument accuracy): ±0,5% for direct mounting. |
| Finishing | Ra ≤ 0,80 μm |
| Note | Manufacture on request. |
1) C.I.P. = Cleaned In Place
2) S.I.P. = Steamed In Place – available for ranges > 1Bar when steam pressure does not exceed the max admissible pressure on the connected instrument

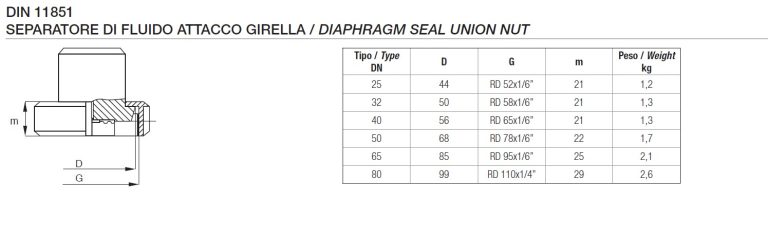

DIN 11851
Diaphragm seal union nut
| Type DN |
D | G | m | Weight kg |
| 25 | 44 | RD 52×1/6” | 21 | 1,2 |
| 32 | 50 | RD 58×1/6” | 21 | 1,3 |
| 40 | 56 | RD 65×1/6” | 21 | 1,3 |
| 50 | 68 | RD 78×1/6” | 22 | 1,7 |
| 65 | 85 | RD 95×1/6” | 25 | 2,1 |
| 80 | 99 | RD 110×1/4” | 29 | 2,6 |

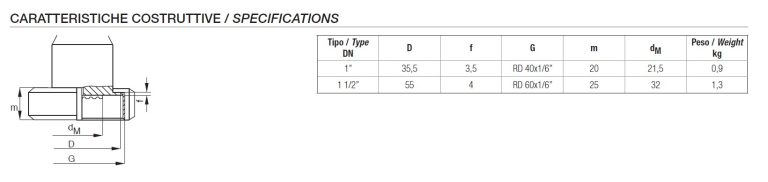

| DN | Weight, kg |
| 1” | 0,9 |
| 1 1/2” | 1,3 |

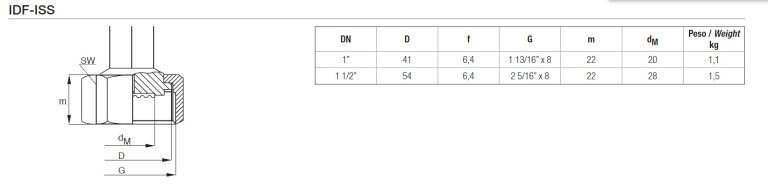

IDF-ISS
| DN | Weight, kg |
| 1” | 1,1 |
| 1 1/2” | 1,5 |

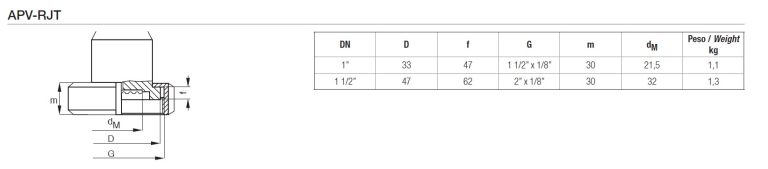

APV-RJT
| DN | Weight, kg |
| 1” | 1,1 |
| 1 1/2” | 1,3 |

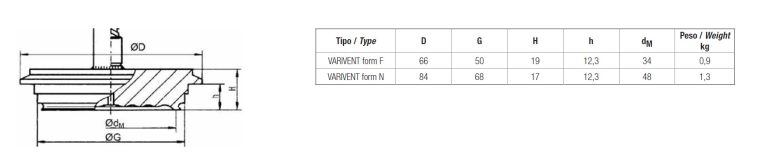

VARIVENT
| Type | Weight, kg |
| VARIVENT form F | 0,9 |
| VARIVENT form F | 1,3 |
How to order: Please specify: code, range, options and accessoriesy.
Example: model SMS 681 1” – 0/16Bar – 50°C
You can request the necessary certificates, documentation, instructions and user guide for TE.MA. SEP531 using the special form.
You can buy TE.MA. SEP531 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. TE.MA. SEP531 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
See also: Diaphragm Seals
