The S605 Portable Breathing Air Analyzer offers a cutting-edge solution designed to ensure the highest standards of safety and quality in breathing air filling stations and breathing air systems. This state-of-the-art analyzer combines advanced technology with exceptional portability, making it the ideal choice for a wide range of industries and applications. The software-guided measurement makes it easy to use and minimizes the risk of error.
Made in Germany. brand SUTO, model S605
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
Monitoring of the Relevant Parameters
Equipped with advanced sensors, the S605 measures all essential parameters such as oxygen (O₂) levels, carbon dioxide (CO₂) levels, carbon monoxide (CO) concentration, dew point and oil vapor. The high precision of the sensors ensures accurate readings, empowering operators to maintain optimal air quality and prevent potential health risks.
Following All International Standards
The S605 Breathing Air Analyzer follows all relevant standards, such as EN 12021. The product pre-sets the threshold for different international standards. The user only needs to select and confirm the underlying standard.
Ultraportable and flexible
One of the key features of the S605 is its compact and lightweight design, allowing for easy transport and operation in various settings. Whether you’re in the field, on a job site, or conducting inspections, this portable analyzer provides instant access to crucial information about the air you breathe.
Remote Connection
By integrating a USB port for 4G dongle connection, the S605 can be easily connected to the S4A Software and monitored remotely. This eliminates the need for a Wi-Fi connection. The USB 4G dongle is an optional feature and can be ordered together with the S605 or upgraded later. To use the new feature, a SIM card is required. Get additional information from our instruction video.
Data Logger with Reporting Function
The integrated data logger allows users to log all measurement data for later export and analysis. This data can be used to create powerful PDF reports directly at the point of use. Besides showing the measurement results, sampling point information, customer and service provider information, the report also evaluates the measurement results according to the selected standard and provides an assessment of the breathing air quality.
This integrated PDF generator makes it ideal for audits and spot checks in breathing air applications.
With its unique compactness, plug and play capability and software-guided measurements, the S605 is the most advanced mobile instrument on the market for getting your breathing air processes under control.
Operators of breathing air systems are required to fill respiratory air in line with international standards such as EN 12021 or CFSR 1910.134(d). Regular checks with the Breathing Air Quality Analyzer S605 are an indispensable part for a safe operation in Fire Departments, Diving, Offshore, Paint Spraying, Welding, Hazardous chemical
MEASUREMENT |
|
| Oxygen O2 | |
| Accuracy | ± 1 % of reading ± 0.05 % |
| Measuring range | 0 … 25 % |
| Resolution | 0.1 % |
| Sensor | Optical oxygen senor |
| Carbon Dioxide CO2 | |
| Accuracy | ± 1 % of reading ± 25 ppm |
| Measuring range | 0 … 1000 ppm |
| Resolution | 1 ppm |
| Sensor | NDIR sensor |
| Carbon Monoxide CO | |
| Accuracy | ± 5 % of reading ± 1 ppm |
| Measuring range | 0 … 20 ppm |
| Resolution | 0.1 ppm |
| Sensor | Electrochemical sensor |
| Humidity H2O | |
| Accuracy | ± 2 °C Td |
| Measuring range | – 100 … + 20 °C Td / 0 … 17458.6 mg/m³ |
| Resolution | 0,1 mg/m3 |
| Sensor | QCM + Polymer |
| Oil Vapor | |
| Accuracy | 5 % of reading ± 0.003 mg/m³ |
| Measuring range | 0.001 … 5.000 mg/m³ (Based on 1000 hPa(a), 20 °C, 0 % relative humidity) |
| Resolution | 0,001 mg/m³ |
| Sensor | Photo ionization detector |
| Oil Mist and Particlel | |
| Accuracy | 15 % of reading ± 0.1 mg/m³ |
| Measuring range | 0.0 … 5.0 mg/m³ (Based on 1000 hPa(a), 20 °C, 0 % relative humidity) |
| Resolution | 0,1 mg/m³ |
| Sensor | Oil mist and particle sensor |
| Pressure | |
| Accuracy | 0.5 % FS |
| Measuring range | 0 … 16 bar(g) |
| Resolution | 0.01 bar |
| Sensor | Piezo resistive pressure sensor |
SIGNAL INTERFACE & SUPPLY |
|
| Fieldbus | |
| Protocol | Modbus/RTU (RS485) Modbus/TCP (Ethernet) |
| Update rate | 1 / sec. |
| Power supply | |
| Voltage supply | 18-32 VDC, 20 W Battery |
| Current consumption | 1.4 A |
| Interface | |
| USB | USB Micro with OTG support |
| 4G/LTE USB | USB Port for 4G/LTE Modem |
GENERAL DATA |
|
| Configuration | |
| Others | Device comes pre-configured Configuration can be done via on-screen touch |
| Display | |
| Integrated | 5” color touch screen |
| Data Logger | |
| Storage | Up to 3 million recorded data sets (10 channels each) |
| Report | Integrated report generator for PDF export |
| Material | |
| Process connection | 6 mm quick connector |
| Housing | PC, Al alloy |
| Miscellaneous | |
| Electrical connection | M12, USB-C, RJ45 |
| Protection class | IP54 |
| Water Inlet | 6 mm connector |

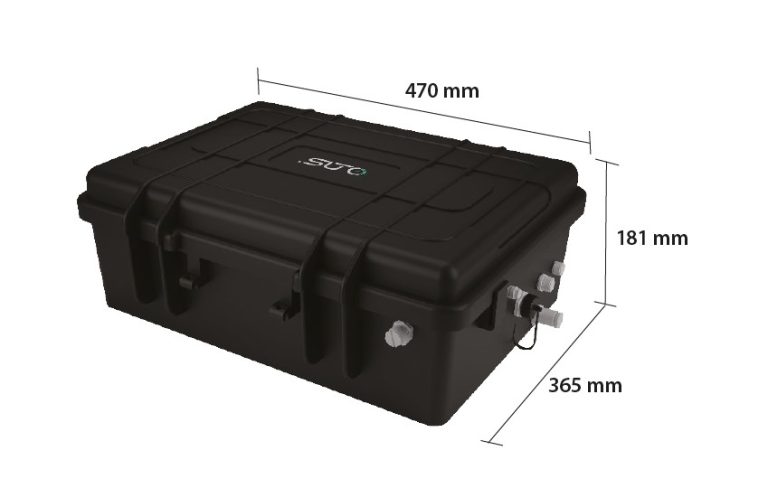

| Dimensions | 470 x 365 x 181 mm |
| Weight | 11 kg |
| Approvals | |
| EMC | FCC, CE |
| Operating conditions | |
| Measuring Medium | Compressed breathing air |
| Sample Flow Rate | 6 LPM@4 MPa(g), depends on input pressure |
| Sample rate | 1 sample/sec |
| Medium temperature | 0 … +45 °C |
| Medium humidity | Medium humidity < 40 % rH, no condensation |
| Inlet Pressure | 0.4 … 1.5 MPa(g), External pressure reducer allow up to 35 MPa process pressure |
| Ambient temperature | 0 … +50 °C |
| Ambient humidity | 0 … 90 % rH |
| Storage temperature | -10 … +50 °C |
| Transport temperature | -10 … +50 °C |
You can request the necessary certificates, documentation, instructions and user guide for SUTO S605 using the special form.
