The S600 Portable Compressed Air Purity Analyzer provides an all-in-one solution to measure dew point, particle and oil vapor as specified in the ISO 8573-1 standards. It combines the latest sensor technology, software-guided measurements and a time-saving setup into one portable, touchscreen controlled multi-tool. With our S600, compressed air quality measurement audits can be finished in minimal time compared to traditional methods.
Made in Germany. brand SUTO, model S600
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
Compressed Air Quality Measurements According to ISO 8573-1
Many industries like the pharmaceutical and food industry require high-quality compressed air. Process and product safety can be ensured by frequent measuring of compressed air quality, while meeting the ISO 8573-1 standard requirements. At the same time, monitoring the compressed air quality can avoid production downtime and improve system reliability.

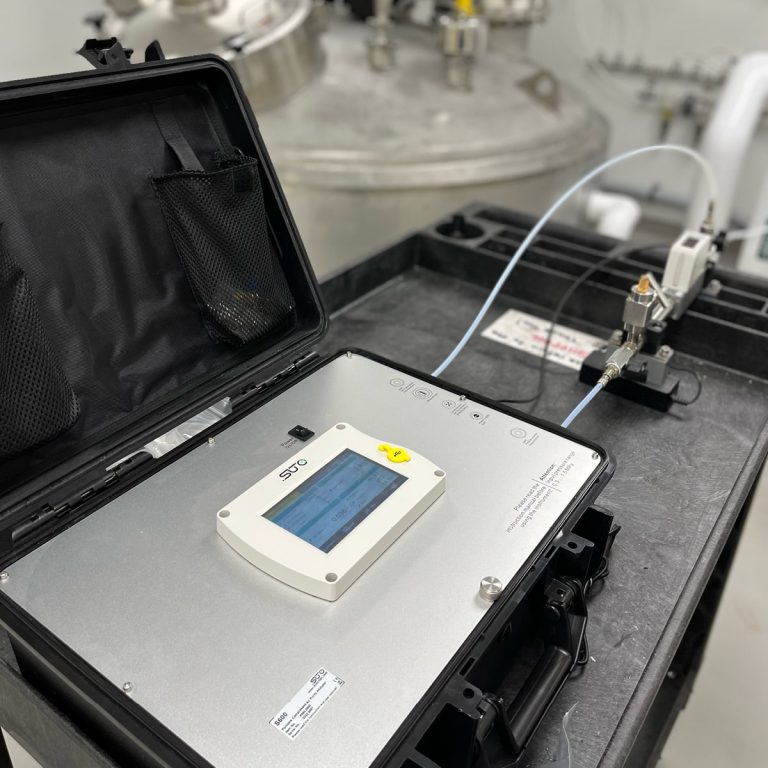

On-Site Measurements for Great Flexibility

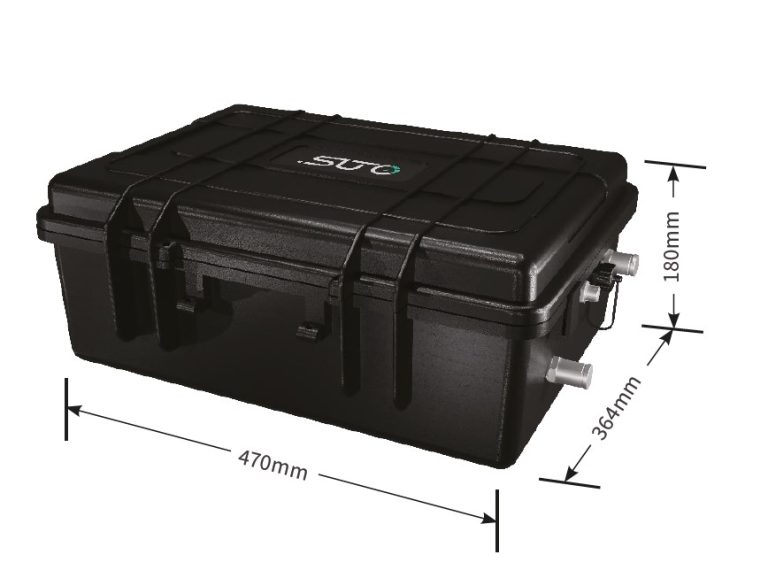

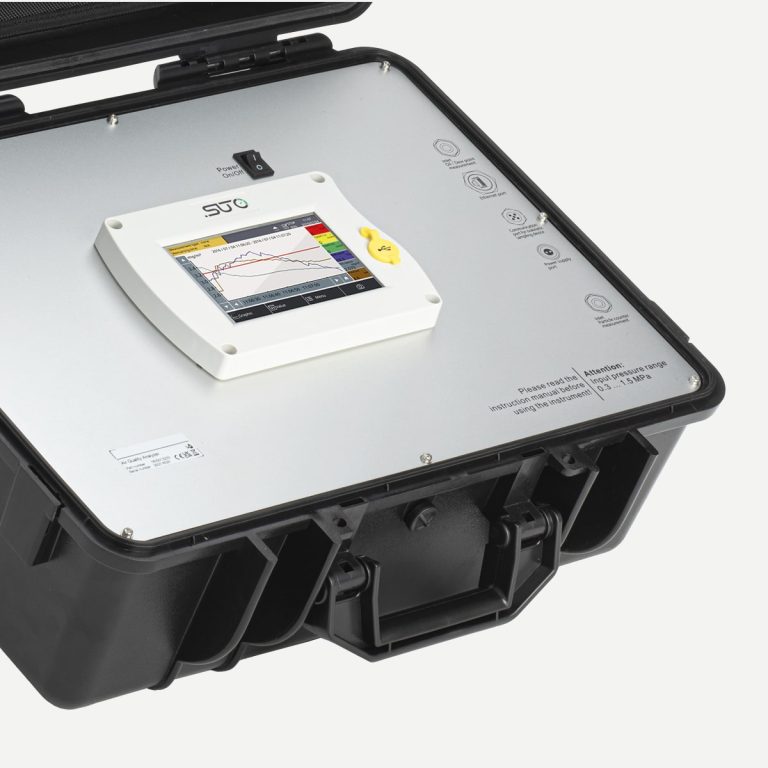

Forget the old methods of compressed air quality and purity monitoring. The S600 monitoring solution uses software-driven measurements to ensure a peak level of flexibility and accuracy. With a vibrant 5-inch touch screen, you can control and monitor all the data directly at the measurement location. You get the whole package in one easy to carry case. This can be taken with you anywhere with ease. The S600 case is 45 x 38,1 x 19,05 cm in size.
5 in 1 Measuring Device
The S600 Portable Compressed Air Purity Analyzer measures dew point/humidity, particle counts, temperature, pressure, and oil vapor with high accuracy in one device. With an integrated data logger, the data recording of these parameters for further data analysis has never been easier.
ISO 8573-4 Isokinetic Sampling Device
For particle measurements according to ISO 8573 an isokinetic sampling tube has been designed. This optional equipment enables you to monitor and adjust the air flow of the particle measurement to ensure the correct isokinetic sampling.
Create Powerful Reports for Compressed Air Audits
The S600 enables users to create powerful PDF reports directly on site. The reports are following the recommendations stated in the ISO 8573. Customer related data as well as service provider details can be entered on-screen, making it even easier to perform audits and to create meaningful reports. PDF reports can be created from any recordings on the device and are copied on the fly to a connected USB drive for direct print-outs.
Optional 4G/LTE Remote Connection
By integrating a USB port for 4G dongle connection outside the S600 casing, the portable devices can be easily connected to the S4A Software and monitored remotely. This eliminates the need of a WiFi connection. The USB 4G dongle is an optional feature and can be ordered together with S600, but also upgrade later. To use the new feature, a SIM card is required. Get additional information from our instruction video.
SUTO Exchange Service
The exchange calibration service eliminates downtime and enables users to have a seamless record of their dew point measurements. We are happy to advise you and find the best possible configuration for your application. Please contact us here for further questions and information.
Application
| MEASUREMENT | |
| Particle concentration | |
| Accuracy | Counting Efficiency according ISO 21501-4 30 … 70 % of d > 0.1 μm 90 … 110 % of d ≥ 0.3 μm |
| Selectable units | cn/m³, cn/ft³ |
| Measuring range | 0.1 < d ≤ 0.5 μm 0.5 < d ≤ 1.0 μm 1.0 < d ≤ 5.0 μm 5.0 μm < d |
| Sensor | Laser optical particle counter |
| Sampling rate | 1 min. |
| Flow rate | 2.83 l/min |
| Pressure Dew Point | |
| Accuracy | ± 1 °C Td (0 … 20 °C Td) ± 2 °C Td (-70 … 0 °C Td) ± 3 °C Td (-100 … -70 °C Td) |
| Selectable units | °C, °F |
| Measuring range | -100 … +20 °C Td |
| Sensor | QCM + Polymer |
| Response time (t90) | -20 °C Td -> -60 °C Td = < 240 sec -60 °C Td -> -20°C Td = < 30 sec @ 4 l/min |
| Oil vapor | |
| Accuracy | 5 % of value +/- 0.003 mg/m³ |
| Detection limit | 0.003 mg/m³ |
| Resolution | 0.001 mg/m³ |
| Selectable units | mg/m³ |
| Measuring range | 0.001 … 5.000 mg/m³ |
| Sensor | PID (Photoionisation detector) |
| UV lamp lifetime | 1 year or 6000 working hours, whichever comes first |
| Sampling rate | 1 sec. |
| Pressure | |
| Accuracy | 0.5 % FS |
| Measuring range | 0.1 … 1.6 MPa(g) |
| Sensor | Piezo resistive sensor |
| Temperature | |
| Accuracy | ± 0.3 °C |
| Measuring range | -30 … +70 °C |
| Sensor | Pt100 |
| Reference conditions | |
| Wählbare Bedingungen | ISO1217 20 °C 1000 mbar |
| SIGNAL INTERFACE & SUPPLY | |
| Fieldbus | |
| Protocol | Modbus/TCP |
| Update rate | 1 / sec. |
| Power Supply | |
| Voltage supply | Mains supply adapter (AC/DC) Input: 100 … 240 VAC, 50/60 Hz, 1.4 A Output: 24 VDC, 2.5 A, 60 W max. |
| Current consumption | 1.4 A |
| Interface | |
| USB | USB Micro with OTG support |
| LTE/4G USB | USB Port for 4G/LTE Modem |
| GENERAL DATA | |
| Configuration | |
| Others | Device comes pre-configured Configuration can be done via on-screen touch |
| Display | |
| Integrated | Touchscreen, Size: 5“, Resolution: 800 x 480 px |
| Data Logger | |
| Storage | Up to 3 million recorded data sets (10 channels each) |
| Report | Integrated report generator for PDF export |
| Material | |
| Process connection | Brass nickel-plated, FKM |
| Housing | PC + ABS, Al alloy |
| Miscellaneous | |
| Electrical connection | 2-Pin, push-pull socket |
| Protection class | IP54 (cover lid closed) |
| Approvals | IEC 61326-1 |
| Process connection | Micro quick connector, full passthrough, male (1.5 m hose with coupling included) |
| Weight | 9.8 kg |
| Operating conditions | |
| Medium | Compressed Air, Nitrogen N2, Carbon dioxide CO₂ (software setting) |
| Medium quality | ISO 8573-1: 4.4.4 or better |
| Medium temperature | 0 … + 40 °C |
| Medium humidity | Medium humidity < 40 % rH, |
| no condensation | -30 … 70 °C |
| Operating pressure | 0.3 … 1.5 MPa(g) |
| Ambient temperature | 0 … +50 °C |
| Ambient humidity | 0 … 90 % rH |
| Storage temperature | -10 … + 70 °C |
| Transport temperature | -10 … + 70 °C |
| MEASUREMENT | |
| Measuring unit | Measuring unit Sampling pipe with integrated isokinetic sampling tube, flow regulation and control by integrated flow sensor, to be used for particle measurements according to ISO 8573-4 |
| Flow meter unit | Thermal mass flow meter (only for isokinetic flow setup, no system flow measurement) |
| Sensor | Thermal mass flow sensor |
| Accuracy | 3 % o. RDG |
| SIGNAL INTERFACE & SUPPLY | |
| Connection | Communication to S600 (cable included) |
| Update rate | 1 / sec. |
