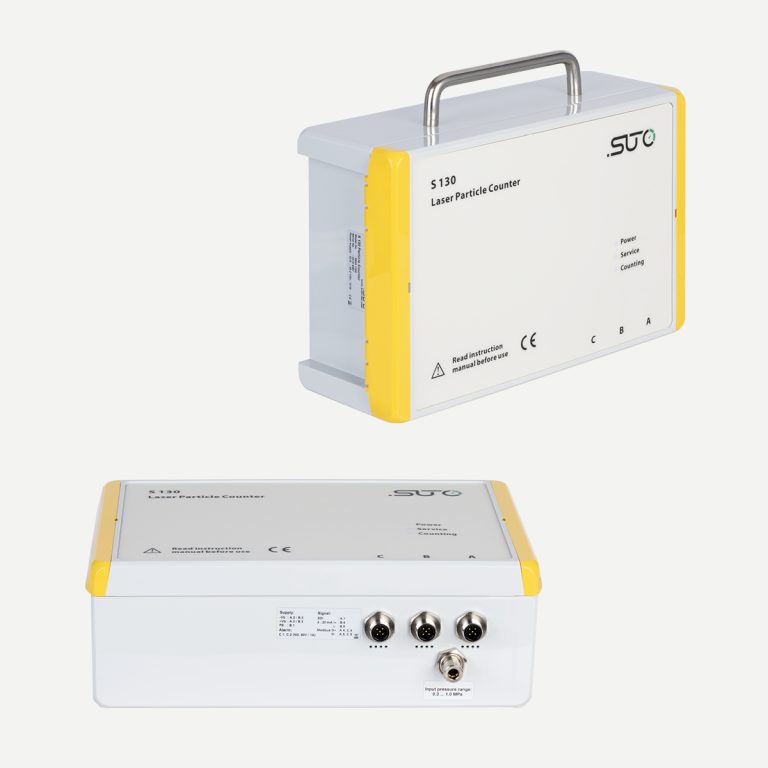

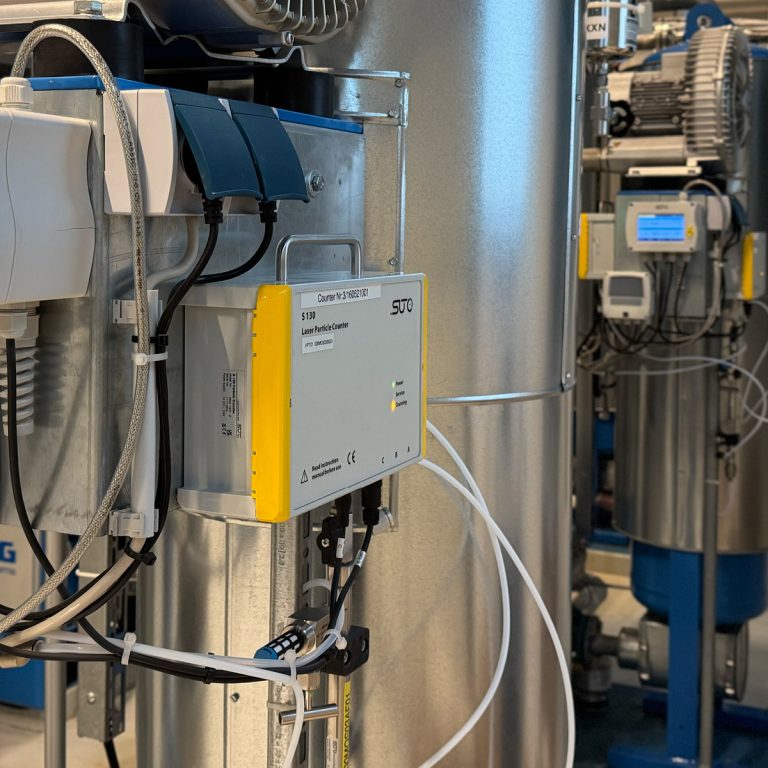

The S130 / S132 is a new generation laser particle counter optimized for applications in compressed air or compressed gases. With quality in mind and with the knowledge of customer needs, this instrument is designed for continuous operation 24 hours, 7 days a week. This helps to ensure the compressed air quality while helping to avoid particle contamination of processes and products.
Made in Germany. brand SUTO, model S130 / S132
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
Particle sizes from 0.1 < d ≤ 5.0 μm
Integrated Pressure Diffuser
Unlike its competition, the SUTO Laser Particle Counters come with integrated pressure diffusers to reduce the line pressure inside the instrument. This enables users to use the laser particle counters directly from the compressed air system, without installing pressure reducers and therefore being in compliance with the ISO 8573-4 standard.

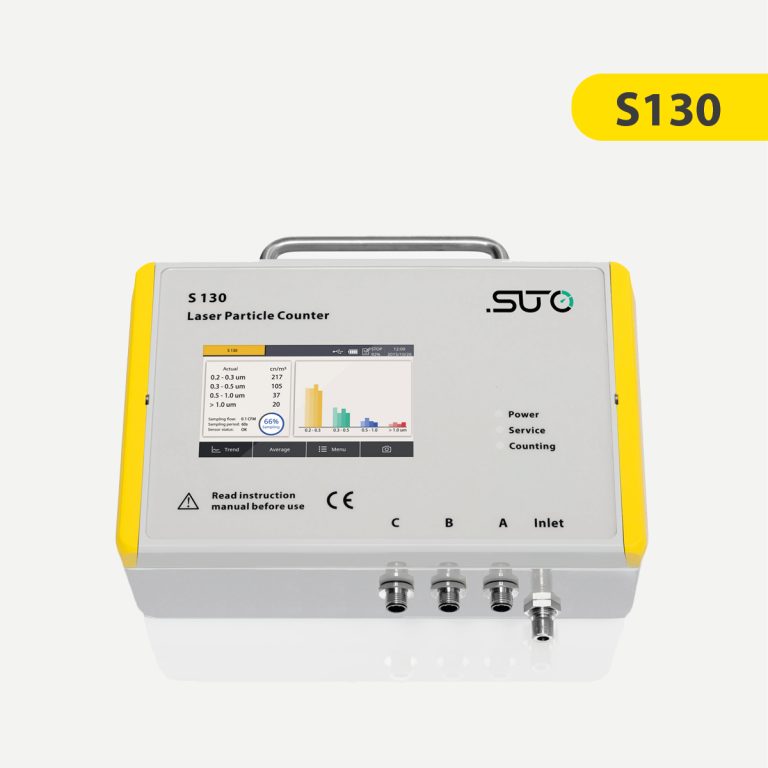

Integrated Display

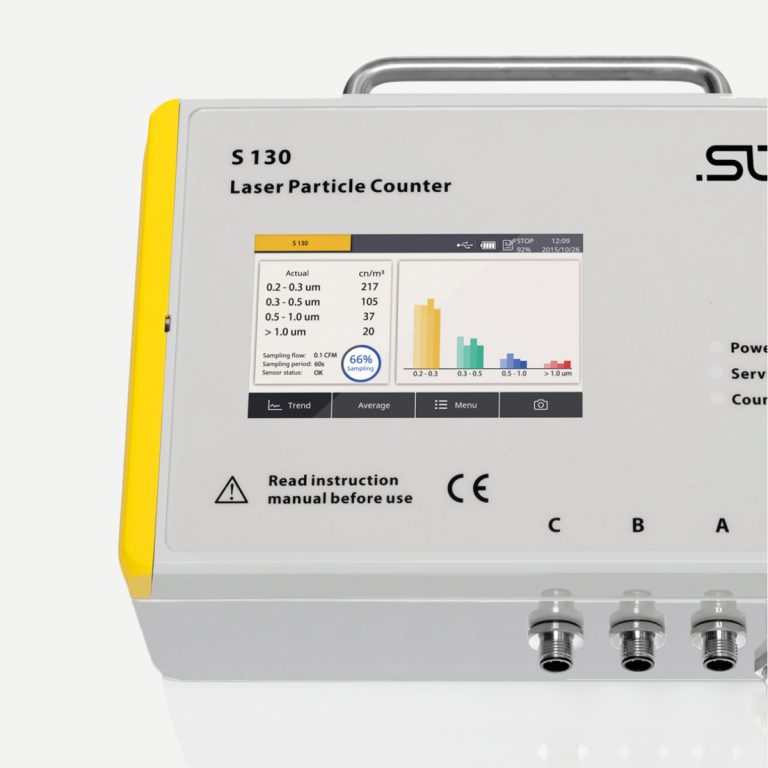

The integrated 5” touch screen display offers live readings for all channels, signal output settings as well as an integrated data logger. This allows storage of the measurement data on the device. Measurement values represent the particle counts per ft³, l or m³, or alternatively in μg/m³.
Air Quality Monitoring According ISO 8573-1
The ISO 8573-1 defines the compressed air purity classes for particulates in a compressed air system by providing the limit values for each channel. The S132 Laser Particle Counter measures the channels as defined by the ISO 8573-1:
For these 3 channels, the limit values are defined and divided into classes. But furthermore, as stated in the ISO 8573 standard, the fourth channel must be measured as well, d > 5.0 μm. This channel value must be 0 for the classes 0 to 5, otherwise the classification falls into class 6 or worse, where a mass concentration is defined as limit values.
Connections for Data Analysis
The user-friendly signal outputs (Modbus/RTU (RS485), Alarm relay (NO, 40VDC, 0,2A) and USB) make it easy to connect the S130/S132 to SUTO Displays and Data Logger as well as third-party displays and control units.
SUTO Exchange Service
The exchange calibration service eliminates downtime and enables users to have a seamless record of their dew point measurements.
| MESSUNG | |
| Particle | |
| Measuring range | S130: 0.3 < d ≤ 5.0 μm S132: 0.1 < d ≤ 5.0 μm |
| Measuring channels | S130: CH1: 0.3 < d ≤ 0.5 μm CH2: 0.5 < d ≤ 1.0 μm CH3: 1.0 < d ≤ 5.0 μm CH4: 5.0 μm < d (konfigurierbar) S132: CH1: 0.1 < d ≤ 0.5 μm CH2: 0.5 < d ≤ 1.0 μm CH3: 1.0 < d ≤ 5.0 μm CH4: 5.0 μm < d (konfigurierbar) |
| Counting Efficiency according ISO 21501-4 | 30 … 70 % of d > 0.1 um, 90 … 110 % of d >= 0.3 um |
| Principle of measurement | Laser detection |
| Sensor | LED-laser |
| Consumption | |
| Selectable units | cn/m³, cn/ft³ |
| SIGNAL INTERFACE & SUPPLY | |
| Analog output | |
| Signal | 4 … 20 mA (2-wire) |
| Alarm | Switch output, normally open, max. 40 VDC, 200 mA |
| Fieldbus | |
| Protocol | Modbus/RTU, Modbus/TCP (with Display version) |
| Supply | |
| Voltage supply | 24 VDC / 10 W (ohne Display) 24 VDC / 20 W (mit Display) |
| Current consumption | 420 mA (ohne Display) 840 mA (mit Display) |
| Data interface | |
| USB | USB Micro with OTG support |
| GENERAL DATA | |
| Configuration | |
| Others | Device comes pre-configured Configuration can be done via on-screen touch |
| Display | |
| Integrated | 5” color touch screen |
| Data Logger | |
| Storage | 30 million measurement values (optional) |
| Miscellaneous | |
| Electrical connection | 3X M12 |
| Protection class | IP65 |
| Process connection | 6 mm quick connect (pressurized version), barb connection (ambient version) |
| Material | PC, Al alloy |
| Weight | S130: 1.9 kg S132: 3.2 kg |

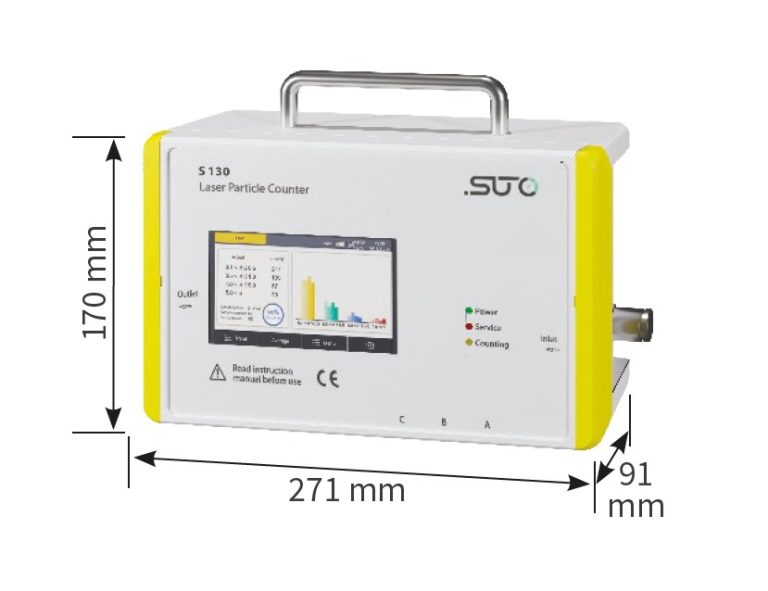

| Dimensions | S130: 271 x 205 x 91 mm S132: 300 x 240 x 120 mm |
| Operating conditions | |
| Medium | Compressed air and gases free of corrosive, aggressive, caustic and flammable constituents |
| Flow rate | 2.83 l/min |
| Sample rate | One sample per minute |
| Medium quality | ISO 8573-4 |
| Medium temperature | 0 … +40 °C |
| Medium humidity | < 90 %, no condensation |
| Operating pressure | 0.3 … 1.5 MPa |
| Ambient temperature | +10 … +40 °C |
| Ambient humidity | 0 … 90 % rH |
| Storage temperature | -10 … +50 °C |
| Storage humidity | < 90 % with no condensation |
| Transport temperature | -30 … +70 °C Without display -10 … +60 °C with display |
You can request the necessary certificates, documentation, instructions and user guide for SUTO S130 / S132 using the special form.
