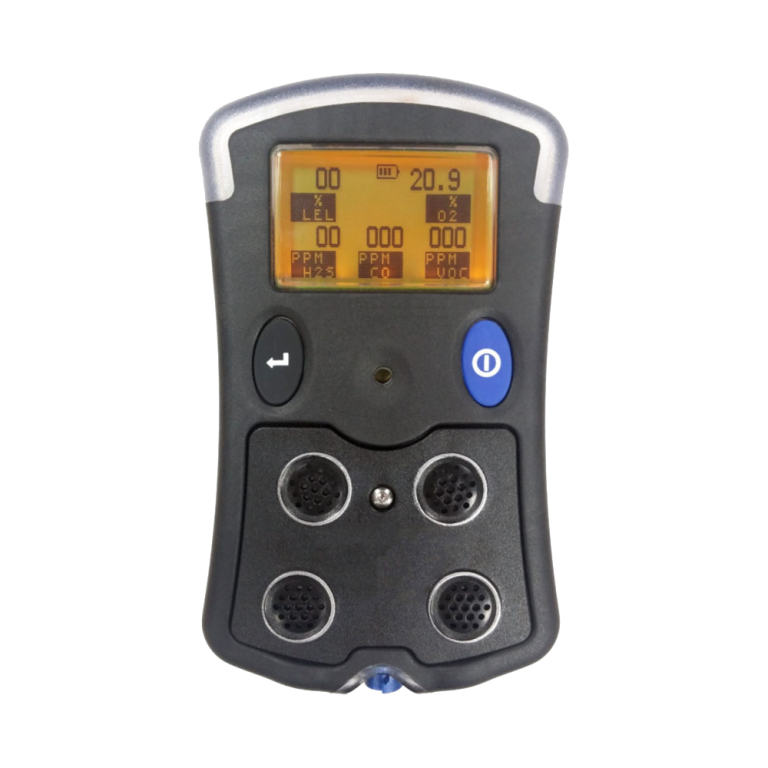

The Marine 5 is your industry leader MED approved solution to multiple gas detection. This robust and accurate gas detector provides unrivalled protection in confined spaces, able to offer exotic gas detection.
Made in United Kingdom. brand Martek Marine, model Marine 5
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The detector allows you to test for the standard four gases (Flam, H2, CO, and O2), while a dual sensor also enables you to switch on a test for further bespoke gas. Testing up to five gases, the Marine 5 brings improved safety and efficiency on-board while reducing operating costs.
The Marine 5 can be tailored to detect up to five gases with its toxic and catalytic sensors, photo ionisation detectors, and infrared capabilities. “Plug and Play” option allows the customer to “plug in” a new board with a different gas range. The Marine 5 is particularly useful in noisy environments, featuring a very loud (95dBA) penetrating and distinctive audible alarm together with high visibility large area visual alarm. Pump, diffusion or both together, allowing pumped sample for pre-entry checking and diffusion in confined space working, thus maximising battery life. A robust, moulded, rubberised casing guaranteeing HiImpact resistance, the Marine 5 can be used in the most demanding industrial environments.
The Benefits
| Size | 140 x 85 x 45 mm / 5.5″ x 3.3″ x 1.7″ |
| Weight | 0.4 kg / 14 oz. |
| Alarms | Visual 360° full light bar, piercing 95db audible 4 gas alarms per gas user programmable TWA/STEL alarms visual and audible Low flow visual and audible Low battery alarm Up to 4 alarms per toxic gas, user programmable 3 alarms for O₂, 2 alarms for LEL |
| Display | LCD backlight display |
| Datalogging | Timed: 24 hours of timed logs at 1 log per minute Session: Minimum of 180 logs Calibration: Minimum of 8 calibration logs |
| Battery | NiMH rechargeable battery – 12 hr. minimum with pump Alkaline battery pack (3 AA) – 12 hr. minimum with pump |
| Enclosure | High impact rubberised polycarbonate case |
| Drop Test | 3m (10ft) |
| IP Rating | IP65 (Dust tight and water resistant) |
| Approvals | UL 913 Class I, Div 1 Groups A, B, C, D MED Approved (0038) – Module B & E CE0518 ATEX II 2 G EEx iad IIC T3 /T4 IECEx: EEx iad IIC T3/T4 |
| Recommended Accessories/Spare Parts | 66485 Hydrophobic filter – external inline 66702 Alkaline battery pack (3 AA batteries) 66136 3m sample line (Tygon® tubing) with connector 66142 3m Viton tubing with connector (PID unit only) 66028 Neck harness 66017 Probe assembly 61208 Datalogging package 66083 Sensor grill hydrophobic filter 66084 Sensor gas inlet filter 66108 Blank sensor plug 66206 Car/vehicle charge 12/24V 66190 Pump assembly kit – includes pump, tubing and fittings |
Sensor Specifications
| GAS | RANGE | RESOLUTION | SENSOR TYPE | T90 |
|---|---|---|---|---|
| LEL | 0-100% LEL | 1% LEL | Cat-bead | 15 sec |
| LEL | 0-100% LEL | 1% LEL | NDIR | 35 sec |
| CO2 | 0-5% V | 0.05% V | NDIR | 25 sec |
| O2 | 0-25% | 0.1% | Electrochemical | 10 sec |
| CO | 0-1000PPM | 1PPM | Electrochemical | 35 sec |
| H2S | 0-100PPM | 1PPM | Electrochemical | 25 sec |
| DUAL TOX CO | 0-1000PPM(CO) | 1PPM | Electrochemical | 35 sec |
| DUAL TOX H2S | 0-100PPM(H2S) | 1PPM | Electrochemical | 25 sec |
| SO2 | 0-30PPM | 1PPM | Electrochemical | 10 sec |
| SO2 | 0-100PPM | 1PPM | Electrochemical | 10 sec |
| CL2 | 0-10PPM | 0.1PPM | Electrochemical | 30 sec |
| NH3 | 0-100PPM | 1PPM | Electrochemical | 60 sec |
| NO | 0-300PPM | 1PPM | Electrochemical | 20 sec |
| NO2 | 0-20PPM | 1PPM | Electrochemical | 185 sec |
| PH3 | 0-100PPM | 1PPM | PID | 5 sec |
| VOC | 0-100PPM | 0.1PPM | PID | 5 sec |
| VOC | 0-1000PPM | 1PPM | PID | 5 sec |
| C6H6 | 0-20PPM | 0.1PPM | PID | 5 sec |
You can request the necessary certificates, documentation, instructions and user guide for Martek Marine Marine 5 using the special form.
