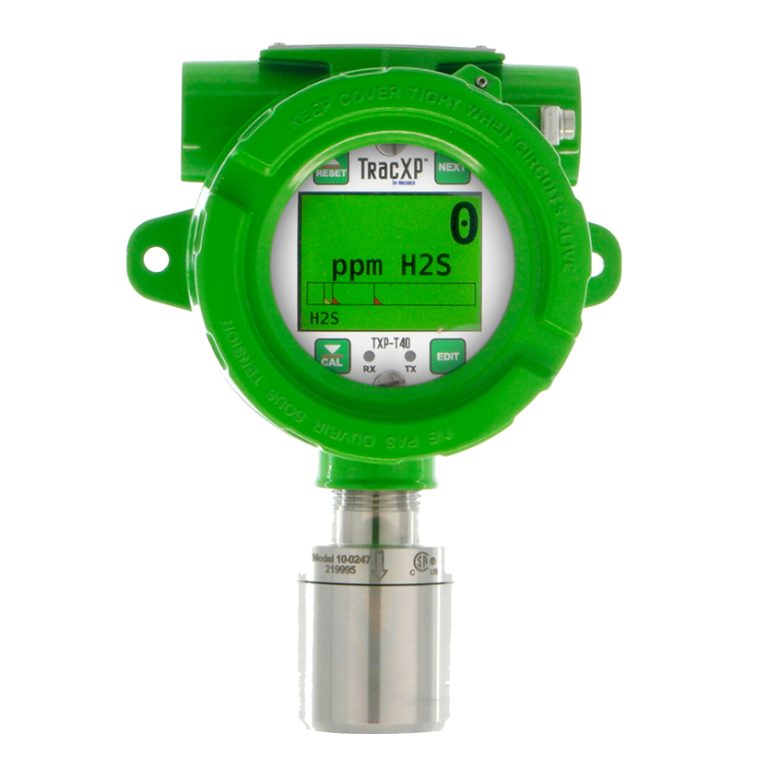

The TracXP TXP-T40 transmitter is a highly configurable fixed gas detector supporting single or dual sensor applications in Class 1 Division 1 or Class 1 Division 2 environments. Local and remote sensor options allow the TXP-T40 to adapt to a wide variety of industrial applications.
Made in USA. brand MACURCO, model TXP-T40
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The TracXP T40 transmitter is a highly configurable fixed gas detector supporting single or dual sensor applications in Class 1 Division 1 or Class 1 Division 2 environments. Local and remote sensor options allow the T40 to adapt to a wide variety of industrial applications.
TracXP intelligent sensors simplify sensor installation and configuration by transferring sensor information to the transmitter including sensor type, measurement range, calibration span values, last calibration date, serial number, and manufacture date. A vivid status indicating color display and LED notification provide superior visual verification of safe or unsafe conditions. Intuitive non-intrusive magnetic interface and embedded webpage make setting up and programming easy. Aluminum, Non-metallic (Poly), and Stainless-Steel enclosures provide alternatives to meet a wide variety of application and cost requirements.
Key features
Applications
| Size | 5″(L) x 5.4″(W) x 8″(H) Aluminum Housing 4″(L) x 5″(W) x 7″(H) Poly Housing |
| Shipping Weight | 6.5 lbs. (3 k.) Aluminum Housing 3 lbs. (2 k.) Poly Housing |
| Power Supply | 10-30 VDC at < 10 watts with relay board (all relays energized) |
| Input | Channel 1 & 2: Electrochemical, Catalytic Bead, Infrared sensor |
| Standard Output | Dual 3-wire 4-20mA current source, (Max loop Resistance 600 ohms @ 24VDC, Ethernet R-45 with built-in web Server, Modbus® TCP) |
| Optional Output | Three programmable relays plus dedicated FAULT relay Dual programmable master / slave Modbus® RS-485 serial interfaces |
| Display | QVGA backlit color TFT 320×240 |
| Temperature | -40°F to 140°F (-40°C to +60°C) See Sensor Limitations |
| Humidity | IR Sensor: RH Non-condensing 95% Electrochemical Sensor: RH Non-condensing 85% |
| IP Rating | Cast Aluminum Enclosure: IP65 w/88-C200-0002-00 or 88-C200-0003-00 Black Poly Enclosure: Suitable for IP54 |
| Approvals | Cast Aluminum Enclosure: Explosion-Proof Cl.1 Div.1 Gr ABCD w/88-C200-0002-00 Sensor Housing Non-Incendive Cl.1 Div.2 Gr ABCD w/88-C200-0002-00 or 88-C200-0003-00 Sensor Housing CSA Black Poly Enclosure: Non-Incendive Cl.1 Div.2 Gr ABCD** **Excludes Catalytic Bead sensor |
Sensor Options – Gas
| Ammonia (NH₃) | Hydrogen Chloride (HCl) |
| Acetylene (C₂H₂) | Hydrogen Sulfide (H₂S) |
| Carbon Dioxide (CO₂) | Mercaptan (CH₃SH) |
| Carbon Monoxide (CO) | Nitric Oxide (NO) |
| Chlorine (Cl₂) | Nitrogen Dioxide (NO₂) |
| Chlorine Dioxide (ClO₂) | Oxygen (O₂) |
| Combustibles (IR) | Ozone (O₃) |
| Combustibles (Cat Bead) | Phosphine (PH₃) |
| Hydrogen (H₂) | Sulfur Dioxide (SO₂) |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-T40 using the special form.
You can buy MACURCO TXP-T40 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MACURCO TXP-T40 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
