Made in USA. brand MACURCO, model TXP-C40
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

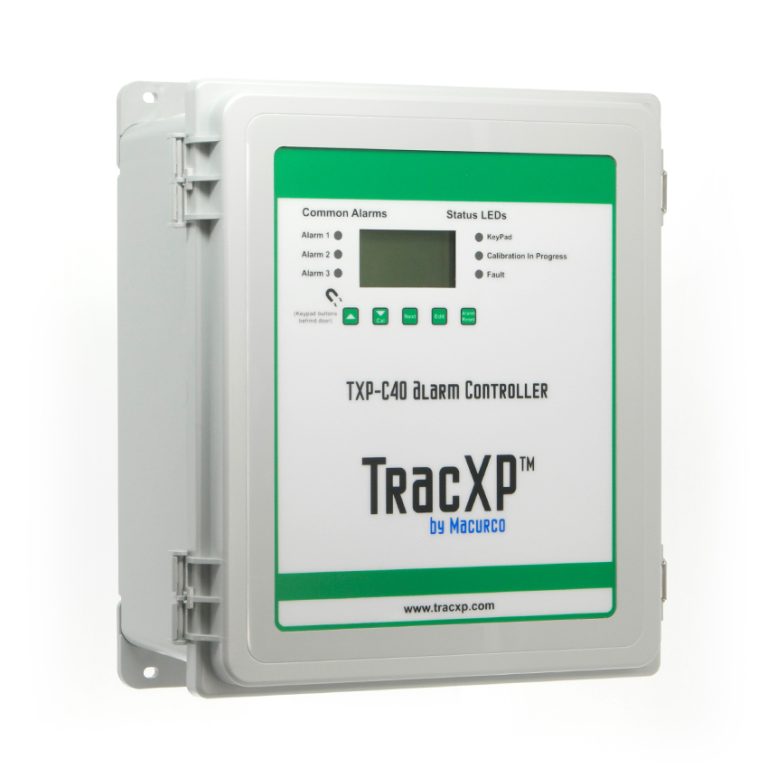

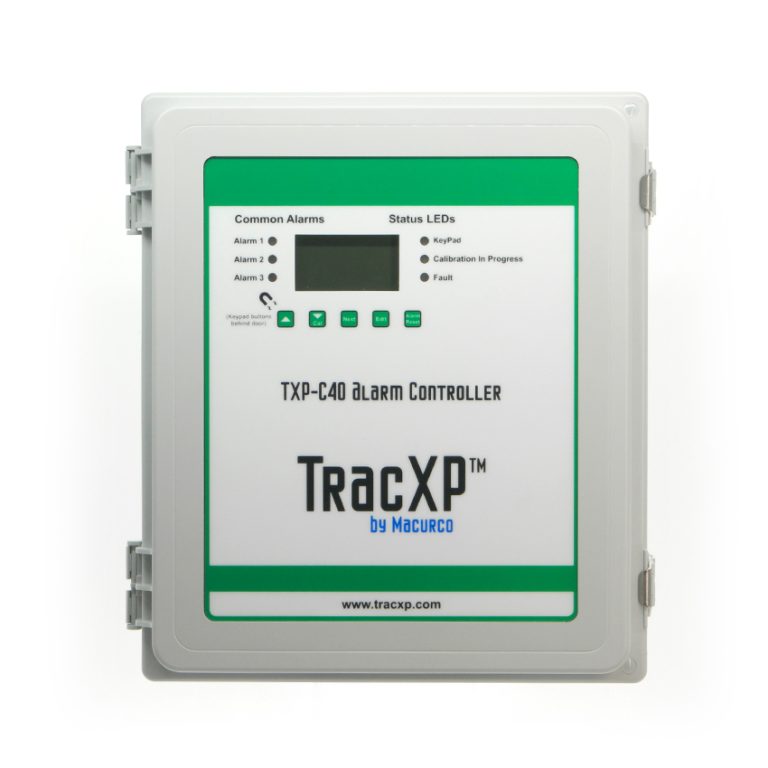

The TracXP C40 is a versatile control panel that provides signal conditioning, display and alarm functions for up to four input channels. The C40 comes standard with two programmable relays and a large graphic LCD screen which displays engineering units, 30-minute trends or bar-graphs. Status indicating Yellow and Red LED’s provide highly visible real time alarm status and three adjustable alarm levels per channel. Versatile input options include connecting four 4-20 mA inputs, four bridge sensors (Catalytic Bead/IR) or dual bridge and dual toxic (Electrochemical) sensors. Output options include 4–20 mA, MODBUS®RTU, serial to dual Ethernet Modbus TXP bridge, and additional relay outputs
Applications
| Enclosure Size | 14.1″(L) x 12.14″(W) x 7.75″(H) Poly Enclosure |
| Shipping Weight | 12 lbs. (5.4 k.) Poly Enclosure |
| Power Supply | 120 – 240 VAC / 10 – 30 VDC, 50 watt primary power supply (Standard) |
| Inputs | Dual toxic (Electrochemical) Dual bridge (Catalytic Bead/IR) One bridge and one toxic Dual 4-20 mA |
| Relays | Two programmable 5A 30 VDC or 250 VAC resistive Form C Relays Programmable 5A 30 VDC or 250 VAC resistive Form C Relays (Option) |
| Serial Port Option | Modbus® RTU Slave RS-485 Port Tx / RX LED’s Serial to dual Ethernet Modbus® TCP bridge, for C1D2 locations |
| Display | Graphic 128 x 64 pixel backlit LCD indicates engineering units, trends or bar-graphs. Six LED’s provide alarm status, cal mode and keypad activity |
| Temperature | -13°F to 140°F (-25°C to +60°C) |
| Approvals | CSA C22.2 No. 1010.1 and C22.2 NO 152 for combustible gases and ISAS82.02: UL1604 / C22.2 No 213 (NEMA 4X Enclosures: Div. 2, Groups A, B, C & D EN55011 and EN 61000 |
Controller Parts and Accessories
| 88-C020-0000-20 | Power Supply, 100-240 VAC / 10-30 VDC w/50W, C1, D2 |
| 90-8000-0000-09 | Quad LCD / micro controller PCB & ribbon cable |
| 88-4000-0020-00 | Alarm relay board (6, 5A form C relays) |
| 88-5000-0060-00 | Single RS-485 serial Modbus® TCP bridge, non-hazardous locations |
| 88-5000-0070-00 | Quad channel 4-20 mA output board |
| 88-5000-0070-20 | Serial to dual Ethernet Modbus® TCP bridge, for C1D2 locations |
| 88-5000-0080-00 | RS-232 / RS-485 RTU addressable interface |
| 90-8000-5000-00 | Quad channel 4-20 mA input board |
| 90-8000-6000-00 | (2) Bridge Sensors and (2) 4-20 mA or (4) Bridge sensors input boards |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-C40 using the special form.
