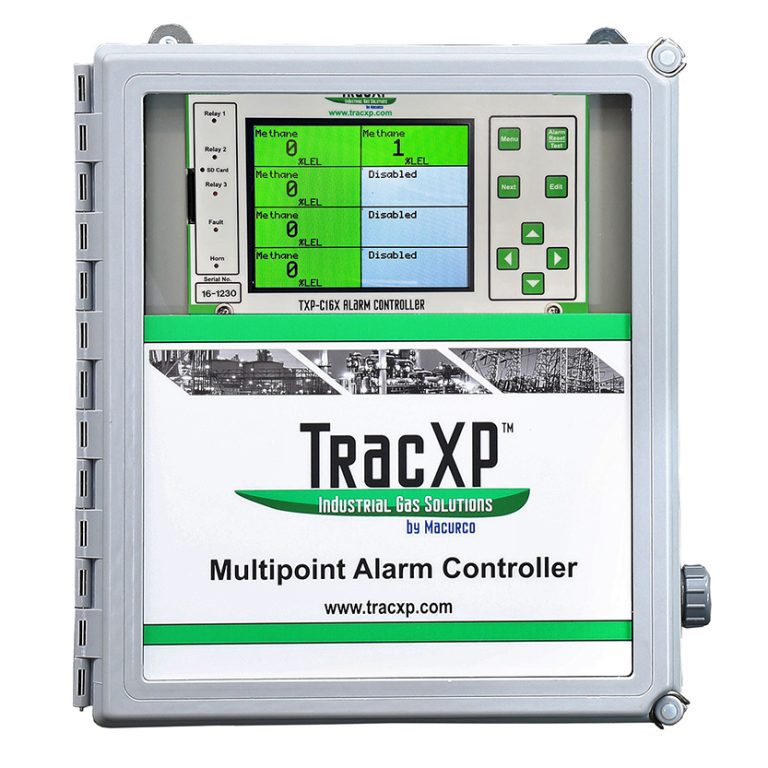

The TracXP TXP-C16X is a multi-channel control panel that provides signal conditioning, simultaneous real-time display, and alarm events for up to 16 input channels. The controller modules are designed in 8-channel options allowing the TXP-C16X to be set up as an 8 to 16-channel device to meet a wide variety of applications.
Made in USA. brand MACURCO, model TXP-C16X
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

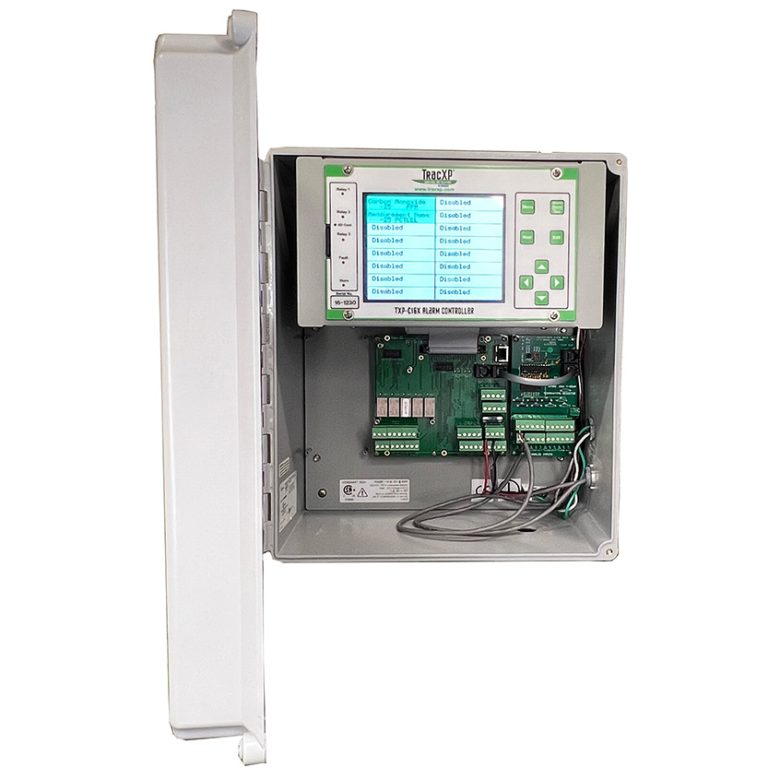

The TXP-C16X is a multi-channel control panel that provides signal conditioning, simultaneous real-time display and alarm events for up to 16 input channels.
The controller modules are designed in 8 channel options allowing the TXP-C16X to be set up as an 8 to 16 channel device to meet a wide variety of applications. The backlit color display enables quick system status indication and notifications of alarm conditions. User selectable display settings offer realtime readings in numerical engineering units, bar graphs and trends. Standard communications include Ethernet with Modbus TCP Master/Slave and web server for configuration and monitoring, and two standard RS-485 serial ports allowing simultaneous Modbus Master/Slave operation.
The TXP-C16X provides up to three alarm levels per channel with a “Relay Acknowledge” feature to silence audible alarms during alarm conditions. Minimum, maximum and average data can be logged and easily retrieved via SD card. The TXP-C16X is user friendly and easily configurable for toxic and combustible critical alarm functions, as well as other 4-20 mA and Modbus device inputs.
Key features
Applications
| Housing Dimensions | 16″(L) x 13.16″(W) x 8.5″(H) Compact Fiberglass |
| Shipping Weight | 32 lbs Compact Fiberglass |
| Power Supply | 120 – 240 VAC / 10 – 30 VDC, 150 watt primary power supply |
| Modbus Inputs | Dual Modbus Master/Slave RS-485 ports |
| Ethernet Port | Modbus TCP interface port with web server |
| Analog Inputs | 4-20 mA inputs (8 or 16) (Optional) |
| Analog Outputs | 4-20 mA outputs (8 or 16) (Optional) |
| Relays | Five 5A 30 VDC or 250 VAC resistive Form C (2 standard SPDT alarm relays for horn & fault, plus 3 programmable alarm relays) Discrete Relay Option Board (8) 5A 30 VDC or 250 VAC resistive Form C (Optional) Programmable Alarm Relay Board (8), 5A Form C Relays (Optional) |
| Display | Color QVGA 320 x 240 pixel graphic LCD with backlight displays bar graphs, trends and engineering units. Five discrete LEDs indicate alarm status for five standard alarm relays |
| Temperature Range | -13°F to +140°F (-25°C to +60°C) |
| Approvals | CE Approved CSA C22.2 No. 1010.1 and C22.2 No. 152 for combustible and ISA S82.02 Class 1 Div. 2 Groups A, B, C, D (NEMA 4X) Class 1 Div. 1 Groups A, B, C, D (NEMA 7) |
Controller Options
| Part Number | Description |
| 88-8000-0100-00 | Analog Input Board (8, Analog Inputs) |
| 88-8000-0020-00 | Analog Output Board (8, Analog Outputs) |
| 88-8000-0030-00 | Programmable Alarm Relay Board (8, 5A Form C Relays) |
| 88-8000-0040-00 | Discrete Alarm Relay Board (8, 5A Form C Relays) |
| 88-8000-0090-00 | Dual Isolated RS-485 Expansion Board |
| 88-8000-0050-00 | 900 MHz, Single Port Isolated RS-485 Kit |
| 88-8000-0060-00 | 900 MHz, Dual Port Isolated RS-485 Kit |
| 88-8001-0000-00 | Rack Mount Expansion Kit (Adds up to 6 Option PCBs) |
| 88-8002-0000-00 | Rack Mount Expansion Kit, 19″ (Adds up to 3 Option PCBs) |
| 88-C000-0000-00 | TracXP Controller Piezo, 100 dB Alarm, 24 VDC |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-C16X using the special form.
