The Alarm Notification Assembly is a flexible, cost-effective alarm status annunciator for general-purpose applications. The TXP-ANA offers optional strobe light configurations of one to four strobes, standard 99 dB or optional 120 dB horn, optional configurable Hush/Silence, and optional wireless functionality with the TXP Wireless System.
Made in USA. brand MACURCO, model TXP-ANA
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

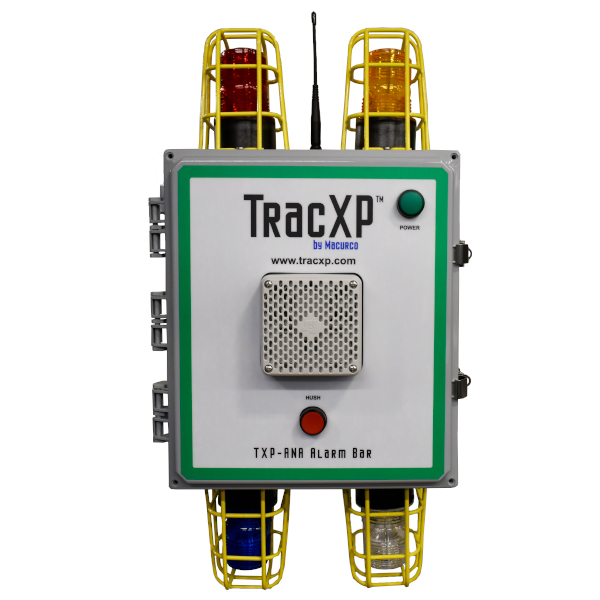

The TracXP-ANA (Alarm Notification Assembly) is a flexible, cost-effective alarm status annunciation for general purpose applications. The TXP-ANA offers optional strobe light configurations of one to four strobes, standard 99 dB or optional 120 dB horn, optional configurable Hush/Silence, and optional wireless functionality with the TXP Wireless System. The TXP-ANA wireless is available with 900MHz frequencies to meet your communication requirements. The TXP-ANA can be used simultaneously to serve as a repeater to extend the wireless communication range to a TXP- controller.
Key features
Applications
| Size | 13′(L) x 26.5″(W) x 9.25″(H) Enclosure 28′(L) x 26.5″(W) x 9.25″(H) With (4) strobes and 99 dB horn 28′(L) x 26.5″(W) x 13.5″(H) With (4) strobes and 120 dB horn |
| Weight | 17.6 lbs. With (4) strobes, wireless, and 99 dB Horn 18.2 lbs. With (4) strobes, wireless, and 120 dB Horn |
| Power Supply | 85-264 VAC input, 24 VDC output, 70W (3A) (Wireless option only) |
| Input Power | 10-30 VDC, 3 watts maximum (non-wireless) 85-264 VAC (wireless) |
| Strobe | Flash rate – 60 to 80 flashes per minute Light output – 50 effective candlepower Lamp type – Xenon Lamp life – 10,000 hour |
| Wireless Option | Wireless Input – 900 MHz Wireless Output – Frequency-Hopping Spread Spectrum (FHSS) Four Alarm Relays Independent Horn Relay |
| Temperature | -40°F to +140°F (-40°C to +60°C) |
| Environmental Rating | NEMA 4XIIP66 |
| Warranty | 2-year on enclosure and electronics 1-year on Xenon strobe lamp 10-year on strobe power supply |
Ordering Options
| Part Number | Description |
| 93-5724-0000-16 | TXP-ANA, Poly Endosure, 10-30 VDC, 99 dB Horn |
| 93-5724-0000-15 | TXP-ANA, Poly Endosure, 10-30 VDC, 99 dB Horn, Hush |
| 93-6754-0000-16 | TXP-ANA, Poly Endosure, 85-264 VAC Input, 24 VDC Output, 60 Watt, 99 dB Horn, Wireless |
| 93-6754-0000-15 | TXP-ANA, Poly Endosure, 85-264 VAC Input, 24 VDC Output, 60 Watt, 99 dB Horn, Wireless, Hush |
| 93-5324-0000-16 | TXP-ANA, Poly Endosure, 10-30 VDC, 120 dB Horn |
| 93-5324-0000-15 | TXP-ANA, Poly Endosure, 10-30 VDC, 120 dB Horn, Hush |
| 93-6354-0000-16 | TXP-ANA, Poly Endosure, 85-264 VAC Input, 24 VDC Output, 60 Watt, 120 dB Horn, Wireless |
| 93-6354-0000-15 | TXP-ANA, Poly Endosure, 85-264 VAC Input, 24 VDC Output, 60 Watt, 120 dB Horn, Wireless, Hush |
Strobes
| Part Number | Description |
| 95-2124-R112-00 | Red Strobe with Strobe Guard |
| 95-2124-B112-00 | Blue Strobe with Strobe Guard |
| 95-2124-C112-00 | Clear Strobe with Strobe Guard |
| 95-2124-G112-00 | Green Strobe with Strobe Guard |
| 95-2124-A112-00 | Amber Strobe with Strobe Guard |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-ANA using the special form.
