Made in USA. brand MACURCO, model GBC
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

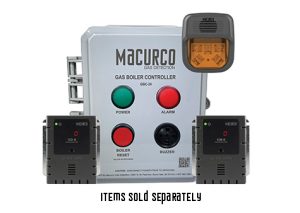

The Gas Boiler Controller used in conjunction with Macurco Gas detectors is used to shut down boilers in the presence of gas. Using a single detector or up to four gas detectors the controller can control up to 8 dry contact outputs. These outputs are designed to shut down the boiler system upon the detection of carbon monoxide and/or combustible gases such as natural gas or propane. If the detectors are programmed in latching mode then utilizing the Gas Boiler Controller you can reset the power to disengage the latched relay. The Gas Boiler Controller has a green power light, a red alarm light, a boiler reset button, and an audible buzzer.
Applications – Boiler Rooms
| Size | 9.8″ x 8″ x 4.5″ (24.9 X 20.3 X 11.4 cm) |
| Weight | 3 lbs. |
| Voltage/Current | 24 VAC/VDC or 120VAC |
| Operating Temperature | 32°F to 125°F (0°C to 52°C) |
| Ambient Humidity | 0% to 95% RH non-condensing |
| Mounting | 6 mounting holes |
| Buzzer | 90 dBA at 1 ft |
| Status Indicators | Green Light – Powered Up Red Light – Alarm Condition |
| Outputs | Relay Expansion Board – 2 SPDT, 250VAC, 10 A Max (resistive) 4 expansion board capacity (8 total relays) |
| Settings | Jumpers |
| Enclosure | NEMA 4X (IP66) |
| Warranty | Two year limited warranty |
| Description | Model Number |
| 24 Volts – 2 Relays | GBC-24-2 |
| 24 Volts – 4 Relays | GBC-24-4 |
| 24 Volts – 6 Relays | GBC-24-6 |
| 24 Volts – 8 Relays | GBC-24-8 |
| 120 Volts – 2 Relays | GBC-120-2 |
| 120 Volts – 4 Relays | GBC-120-4 |
| 120 Volts – 6 Relays | GBC-120-6 |
| 120 Volts – 8 Relays | GBC-120-8 |
| Photo | Model | Description |
|---|---|---|
| CM-6 | CO Detector | |
| GD-6 | LEL Detector | |
| HS-A, HS-B, HS-C, HS-R | Horn and Strobe | |
| E Stop | Emergency Power Off |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO GBC using the special form.
You can buy MACURCO GBC in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MACURCO GBC price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
See also: Gas Control Panels, Gas detectors & analysers
