Made in USA. brand MACURCO, model DVP-1200
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

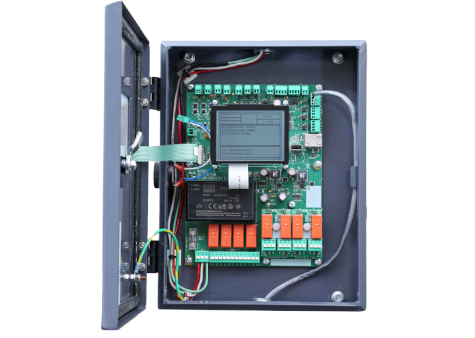

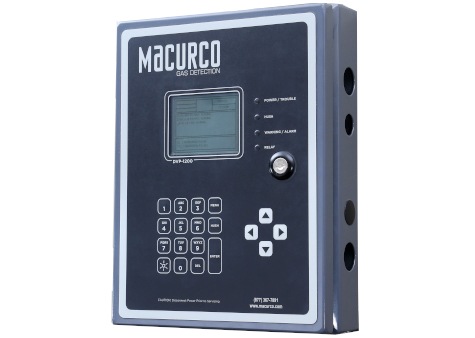

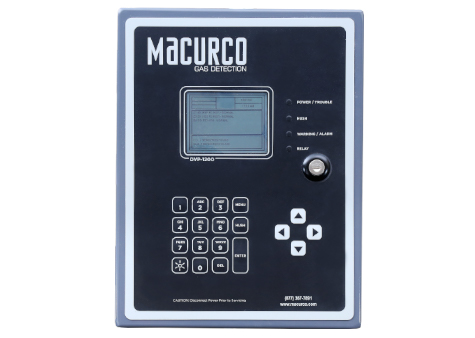

The DVP-1200 controller, in conjunction with Macurco gas detectors, provides automatic control to help maintain an acceptable environment in parking garages or other applications. This control panel offers an expandable system with up to 192 addressable detectors in the field. The DVP-1200 comes standard with four relays and expandable onboard relay options (+2, +4). Other outputs on the DVP-1200 include three analog outputs, four 24VDC drivers, and BACnet IP. The DVP-1200 can be connected to up to four remote drivers, each containing a combination of inputs/outputs. With the expandability of this panel, the DVP-1200 will fit into any gas detection application.
Applications
Key features
| Size | 13” x 10” x 2.75” (33 x 25.4 x 6.9 cm) |
| Weight | 12.4 lbs (5.6 kg) |
| Voltage/Current | Power Input: 100 – 240 VAC 1 Amp, 50/60 Hz, single phase |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Ambient Humidity | 0% to 95% RH non-condensing |
| Display | LCD display: 320 x 240 Pixels Graphic with backlight |
| Mounting | Mounting holes in each corner |
| Onboard Relays | 4 SPDT, 120/240 VAC, 10 A Max (resistive) Optional additional relay boards (+2 or +4) |
| Expansion Inputs/Outputs | Using up to 4 RD-24 drivers – Optional remote relays (up to 32) – Optional analog output (up to 32) – Optional analog input (up to 48) |
| Settings | External keypad for user selection of the transducer/alarm display and setting the configuration |
| Status Indicators | Power / trouble, hush, warning / alarm, and relay |
| Alarms | Internal buzzer, 90 dBA at 10ft |
| Enclosure | NEMA4X rated |
| Certifications | ETL Listed to UL 2017 |
| Warranty | Two year limited warranty |
| Photo | Model | Description |
|---|---|---|
 |
RD-24 / RR-24 | Remote Driver / Remote Relay |
 |
MRS-485 | Addressable Adapter |
 |
Horn/Strobe, Strobe Only, Horn Only | Notification Series |
| MAC6AMP-4, MAC10AMP-4 | Power Supply |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO DVP-1200 using the special form.
