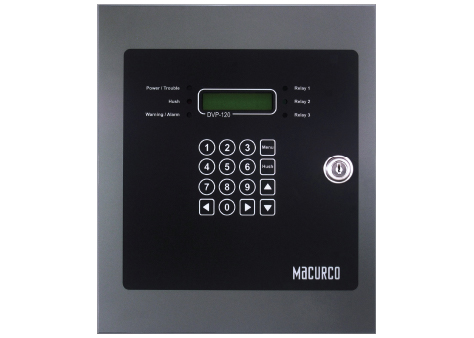

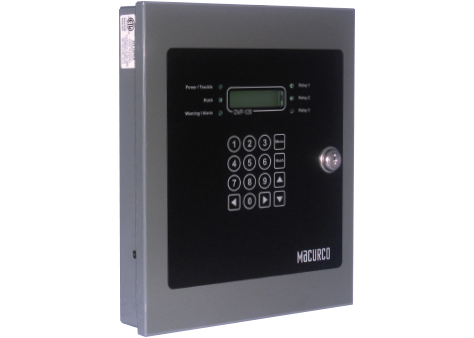

The DVP-120 control family is an exhaust fan controller, in conjunction with Macurco gas transducers, provides automatic controls to help maintain an acceptable environment in a variety of applications
Made in USA. brand MACURCO, model DVP-120
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The Macurco controller family has various options to meet your facility’s needs. In conjunction with Macurco gas detectors, these controllers provide automatic control to help maintain an acceptable environment in parking garages or other applications. These systems easily configure, making installation hassle-free. The control panel series are designed to meet specifications for safety in enclosed parking garages, including the Uniform Building Code and OSHA 50ppm CO requirements. With multiple control panel options Macurco will help you find the suitable controller for your specific application.
Applications
Key features
| Size | 10.5” x 12.5” x 2.” (26.67 X 37.75 X 5.08 cm) |
| Weight | 6.5 lbs (2.9 kg) |
| Voltage/Current | Power Input: 90 – 250 VAC, 1 Amp, 47 – 63 Hz, single phase |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Ambient Humidity | 0% to 90% RH non-condensing |
| Display | LCD display: 2 rows of 16 characters with backlight |

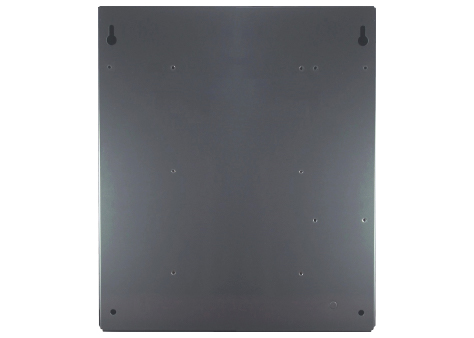

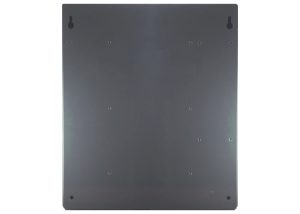

| Mounting | Mounting holes in each corner |
| Relays | Three 10A, 240 VAC SPDT fan/alarm relays |
| Settings | External keypad for user selection of the transducer/alarm display and setting the configuration |
| Status Indicators | (LED): Power, ALARM/warning, hush, Relay 1, Relay 2 & Relay 3 |
| Alarms | Drivers for external Horn and Strobe, externally visible system, alarm and relay status indicators |
| Enclosure | Lockable NEMA 1 type enclosure |
| Certifications | ETL Listed to UL 2017 CAN/CSA-C22.2 No. 14-13, LADBS Approved (DVR-120C) |
| Warranty | Two Year Limited Warranty |
| DVP-120M | DVP-120B | DVP-120C | DVP-1200 | |
| Analog Connections | 12 | 0 | 0 | 0 |
| Digital Connections | 87 | 99 | 99 | 192 |
| Zones | 3 | 3 | 3 | 8 |
| 10 AMP Relays | 3 | 3 | 3 | 4 |
| 24VDC Output (Horn/Strobes) | 2 | 2 | 2 | 4 |
| BACnet Output | N/A | ✔ (MS/TP) | ✔ (MS/TP) | ✔ (IP) |
| 4-20mA Outputs (VFD Control) | 0 | 0 | 0 | 3 |
| Remote Relays (w/ RD-24’s) | 0 | 0 | 0 | 32 |
| Remote Analog Outputs (w/ RD-24’s) | 0 | 0 | 0 | 16 |
| Remote Analog Inputs | 0 | 0 | 0 | 48 |
| NEMA 4X Enclosure | N/A | N/A | N/A | ✔ |
| Title 24 | N/A | N/A | ✔ | ✔ |
The DVP-1200 supports up to 8 onboard relays, and an additional 32 remote relays when utilizing RD-24 devices.
| Photo | Model | Description |
|---|---|---|
 |
MRS-485 | Addressable Adapter |
 |
Horn/Strobe, Strobe Only, Horn Only | Notification Series |
| MAC6AMP-4, MAC10AMP-4 | Power Supply |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO DVP-120 using the special form.
