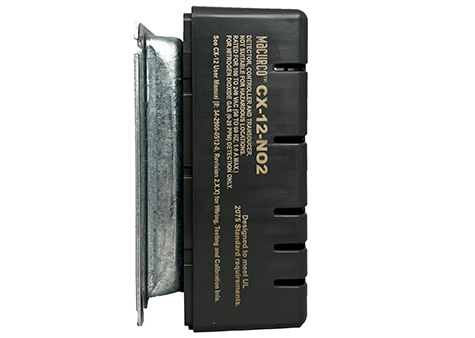

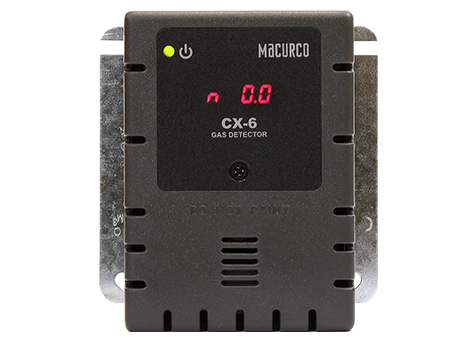

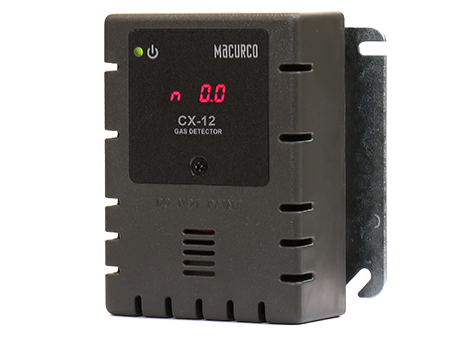

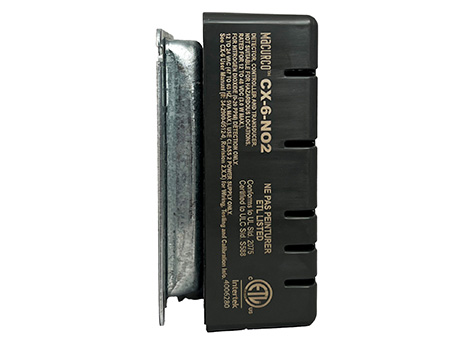

MACURCO CX-6-NO2/CX-12-NO2
Photo MACURCO CX-6-NO2/CX-12-NO2 Description of Macurco CX-6-NO2/CX-12-NO2 Specifications Macurco CX-6-NO2/CX-12-NO2 Ordering Macurco CX-6-NO2/CX-12-NO2 Accessories for Macurco CX-6-NO2/CX-12-NO2 User Manual for MACURCO CX-6-NO2/CX-12-NO2 Related instruments to MACURCO CX-6-NO2/CX-12-NO2
CX-6-NO2: Low Voltage (12 to 24 VAC or 12 to 32 VDC) | CX-12-NO2: Line Voltage (100-240 VAC)
The CX-6-NO2 /CX-12-NO2 detects Nitrogen Dioxide (NO2) in commercial facilities such as parking garages, loading docks, etc. It can be used as a stand-alone detector, controller, and as an analog transducer for use with Macurco control panels and other systems
Made in USA. brand MACURCO, model CX-6-NO2/CX-12-NO2
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The Macurco 6 & 12 Series fixed gas detectors provide life-saving solutions to protect people and property. These fixed gas detectors are designed for low-level detection, mitigation, and notification. Let these detectors do the work for you by shutting off valves, turning on fans, engaging horns and strobes, and providing notification to fire panels and building automation systems when gases reach vital limits.
Key features
Applications
| Size | 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm) |
| Weight | 1 pound (0.45 kg) |
| Voltage/Current | 6-Series Power: 3 W (max) from 12 to 24 VAC or 12 to 32 VDC. Current @ 24 VDC: 75 mA in alarm, 50 mA fan relay on and 23 mA stand by 12-Series Power: 100-240 VAC (50 to 60 HZ) Current: 1.0 A MAX |
| Operating Temperature | 0°F to 125°F (-17.8°C to 51.7°C) CO₂ Detectors: 32°F to 122°F (0°C to 50°C) |
| Ambient Humidity | 10-90% RH non-condensing |
| Display | LED (can turn on/off) |
| Current Loop | Analog: 4-20mA MRS-485: Digital Modbus adapter BRS-485: BMS communication |
| Mounting | 4″ x 4″ electrical box |
| Relays | 5A Fan relay & 0.5A alarm relay User adjustable settings |
| Fan relay actuation for CO | selectable at dIS (disable), 15, 25, 35 (default), 50 or 100 ppm |
| Fan relay actuation for NO2 | selectable at dIS (disabled) 0.5, 0.7, 1.0, 1.2, 1.5, 1.7, 2.0, 2.2, 2.5 (default), 2.7, 3.0, 3.2, 3.5, 3.7, 4.0, 4.2, 4.5, 4.7, 5.0 ppm |
| Certifications | ETL Listed ® interrupt See detector manual for additional certifications |
| Warranty | Two year limited warranty |
| Model Number | Gas Type | Range (Units) | Low Level Alarm Adjustable (Default) | High Level Alarm Adjustable (Default) | Expected Sensor Life | Recommended Coverage Area |
| CX-6-NO₂ | CX-12-NO₂ | Nitrogen Dioxide (NO₂) | (NO₂) 0-20 PPM | 0,05,0,17,10,12,15,17,20,22,25,27,30,32,33,34,44,42,45,47,50 PPM | 0-20 PPM, (5 PPM default) | 4-5 Years** | Up to 7,500 sq. ft.* |
| Photo | Model | Description |
|---|---|---|
| DVP-120, DVP-120M, DVP-120B, DVP-1200 | Control Panels | |
| PS-24, PS-24-H | Step-down Transformers | |
| DMK-1 | Duct Mount Kit | |
 |
HS-A, HS-B, HS-R, HS-C | Horn and Strobe (4 color options) |
 |
MRS-485, BRS-485 | Adapter Options |
 |
Calibration Kits | Based on Gas Type |
 |
WHK-1 | Weatherproof Housing Kit |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO CX-6-NO2/CX-12-NO2 using the special form.
You can buy MACURCO CX-6-NO2/CX-12-NO2 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MACURCO CX-6-NO2/CX-12-NO2 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
