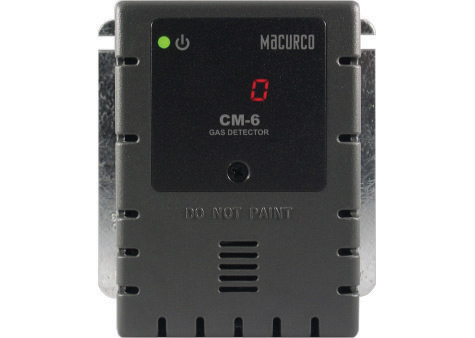

CM-6: Low Voltage (12 to 24 VAC or 12 to 32 VDC)/CM-12: Line Voltage (100-240 VAC)
The CM-6/12 detects Carbon Monoxide (CO) in commercial facilities such as parking garages, boiler rooms, etc. It can be used as a stand-alone detector and controller and as an analog transducer for use with Macurco control panels and other systems.
Made in USA. brand MACURCO, model CM-6/CM-12
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
Key features
Applications
| Shipping Weight | 1 pound (0 45 kg) |
| Size | 4 1/2 x 4 x 2 1/8 in (11 4 X 11 4 X 5 3 cm) |
| Color | White or Dark gray |

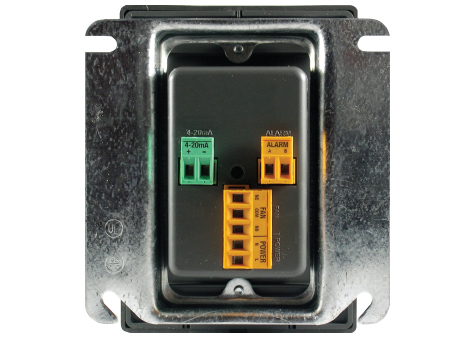

| Connections | plugs/terminals |
| Mounting box | (not included) 4×4 electric |
| Fan relay | 5 A, 240 VAC, pilot duty, SPDT, latching or non-latching |
| Fan relay actuation | selectable at diS (disable), 15 ppm, 25 ppm, 35 ppm (default), 50 ppm or 100 ppm CO |
| Fan Delay Settings | 0, 1, 3 (default), 5 and 10 minutes |
| Fan Relay Minimum Runtime settings | 0 (default), 3, 5, 10 or 15 minutes |
| Fan relay latching or not latching | (default) selectable |
| Alarm relay | 0 5A 120 V, 60 VA |
| Alarm relay actuation | selectable N O (default) or N C |
| Alarm relay settings | diS, 50 ppm, 100 ppm, 150 ppm and 200 ppm (default) |
| Current Loop | 4-20 mA for 0-200 ppm CO, selectable to ‘bAS’ (default), ‘EnH’, OFF |
| Calibration Period Settings | dis(default), 3, 6, 12 and 24 (months) |
| Buzzer | 85 dBA at 10cm settable to off (default) or on |
| Digital display | 3-digit LED selectable to off (default) or on |
| Operating Environment | 0°F to 125° F (-18 o C to 52o C),10 to 90% RH non-condensing |
| 6-Series Low Voltage | |
| Power | 3 W (max) from 12 to 24 VAC or 12 to 32 VDC |
| Current @ 24 VDC | 75 mA in alarm (two relays), 50 mA (fan relay only) and 23 mA standby |
| 12-Series Line Voltage | |
| Power | 100-240VAC (50 TO 60 HZ) |
| Current | 1 0 A MAX |
| Model Number | Gas Type | Range (Units) | Low Level Alarm Adjustable (Default) | High Level Alarm Adjustable (Default) | Expected Sensor Life | Recommended Coverage Area |
| CM-6 | CM-12 | Carbon Monoxide (CO) | 0-200 PPM | 0,15,25,35,50 or 100 PPM | 0,50,100,150 or 200 PPM | 10 Years | Up to 7,500 sq. ft.* |
| Photo | Model | Description |
|---|---|---|
| DVP-120, DVP-120M, DVP-120B, DVP-1200 | Control Panels | |
| PS-24, PS-24-H | Step-down Transformers | |
| DMK-1 | Duct Mount Kit | |
 |
HS-A, HS-B, HS-R, HS-C | Horn and Strobe (4 color options) |
 |
MRS-485, BRS-485 | Adapter Options |
 |
Calibration Kits | Based on Gas Type |
 |
WHK-1 | Weatherproof Housing Kit |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO CM-6/CM-12 using the special form.
You can buy MACURCO CM-6/CM-12 in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MACURCO CM-6/CM-12 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
