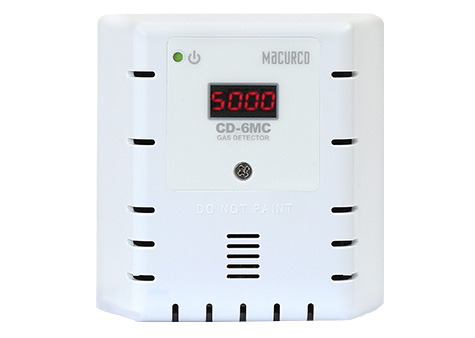

CD-6MC: Low Voltage (12 to 24 VAC or 12 to 32 VDC)/CD-12MC: Line Voltage (100-240 VAC)
The CD-6/12MC monitor detects Carbon Dioxide (CO2) in the beverage and food industries, refrigeration, welding, greenhouses, pharmaceutical, and other chemical processing or other commercial applications, as well as providing automatic fan control to help maintain acceptable levels of gas. Can be used as a stand-alone detector and controller and as an analog transducer for use with the DVP-120 and other systems.
Made in USA. brand MACURCO, model CD-6MC/CD-12MC
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
Key features

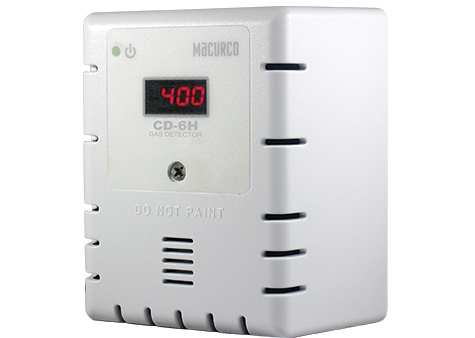

*CD-xxH Only
**CD-xxMC Only
Applications
| Shipping Weight | 1 pound (0 45 kg) |
| Size | 4 1/2 x 4 x 2 1/8 in (11 4 X 11 4 X 5 3 cm) |
| Color | White or Dark Gray |
| Connections | plugs/terminals |
| Mounting box | (not included) 4×4 electric |
| Fan relay | 5 A, 240 VAC, pilot duty, SPDT, latching or non-latching |
| Fan relay actuation | selectable at dIS (disabled), 600, 700, 800, 900, 1000 (default)…, 4800, 4900, 5000 ppm |
| Fan Delay Settings | 0, 1, 3 (default), 5 and 10 minutes |
| Fan Relay Minimum Runtime settings | 0 (default), 3, 5, 10 or 15 minutes |
| Fan relay latching or non-latching | (default) selectable |
| Alarm relay | 0 5A 120 V, 60 VA |
| Alarm relay actuation | selectable N O (default) or N C |
| Alarm relay settings | “dIS” (disabled), 900, 1000, 1100, 1200, …4000(default), … 4900, 5000 |
| Current Loop | 4-20 mA for 0-5000 ppm COP 2P, selectable to off or on (default) |
| Buzzer | 85 dBA at 10cm settable to off or on (default) |
| Digital display | 4-digit LED selectable to off or on (default) |
| Operating Environment | 32°F to 122° F (0°C to 50°C), 10 to 90% RH non-condensing |
| Operating altitude | Up to 16,404ft (5,000m) |
| Model Number | Gas Type | Range (Units) | Low Level Alarm Adjustable (Default) | High Level Alarm Adjustable (Default) | Expected Sensor Life | Recommended Coverage Area |
| CD-6MC | CD-12MC | Carbon Dioxide (CO₂) | 0-5,000 PPM | 0,500,100,100,100,100… | 0,900,100,100…4000…10-5000 PPM | 15 Years | Up to 5000 sq. ft.* |
| Photo | Model | Description |
|---|---|---|
| DVP-120, DVP-120M, DVP-120B, DVP-1200 | Control Panels | |
| PS-24, PS-24-H | Step-down Transformers | |
| DMK-1 | Duct Mount Kit | |
 |
HS-A, HS-B, HS-R, HS-C | Horn and Strobe (4 color options) |
 |
MRS-485, BRS-485 | Adapter Options |
 |
Calibration Kits | Based on Gas Type |
 |
WHK-1 | Weatherproof Housing Kit |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO CD-6MC/CD-12MC using the special form.
You can buy MACURCO CD-6MC/CD-12MC in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MACURCO CD-6MC/CD-12MC price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
