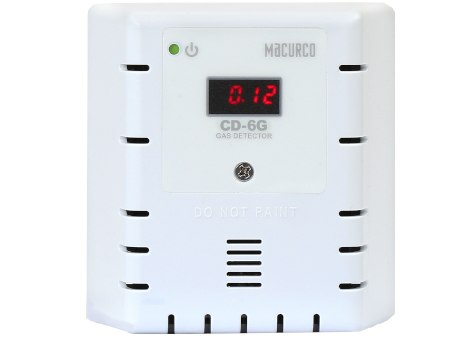

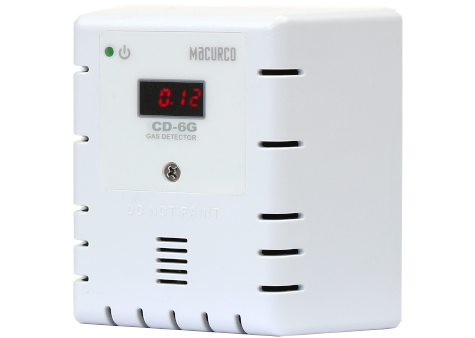

The CD-6G is a low-voltage monitor providing automatic fan control to help maintain acceptable levels of Carbon Dioxide (CO2) in greenhouses, the beverage and food industry, refrigeration, welding, pharmaceutical, and other chemical processing or other commercial applications. It can be used as a stand-alone detector and controller and as an analog/digital transducer for use with the DVP-120 and DVP-1200 series and other systems. The monitor has a high range of 0-5% by vol. (0-50,000PPM) with a recommended coverage area of 900 – 5000 sq. ft.
Made in USA. brand MACURCO, model CD-6G
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
Key features
Applications
| Shipping Weight | 1 pound (0 45 kg) |
| Size | 4 1/2 x 4 x 2 1/8 in (11 4 X 11 4 X 5 3 cm) |
| Color | White or Dark Gray |
| Connections | plugs/terminals |
| Mounting box | (not included) 4×4 electric |
| Fan relay | 5 A, 240 VAC, pilot duty, SPDT, latching or non-latching |
| Fan relay actuation | selectable at “dIS” (disabled), 0 09, 0 1, 0 11, 0 12, …0 2(default), … 3 50, 4 0 |
| Fan Delay Settings | 0, 1, 3 (default), 5 and 10 minutes |
| Fan Relay Minimum Runtime settings | 0 (default), 3, 5, 10 or 15 minutes |
| Fan relay latching or non-latching | (default) selectable |
| Alarm relay | 0 5A 120 V, 60 VA |
| Alarm relay actuation | selectable N O (default) or N C |
| Alarm relay settings | “dIS” (disabled), 0 09, 0 1, 0 11, 0 12, …0 5(default), … 3 50, 4 0 |
| Current Loop | 4-20 mA for 0-5 0% vol COP 2P, selectable to off or on (default) |
| Buzzer | 85 dBA at 10cm settable to off or on (default) |
| Digital display | 4-digit LED selectable to off or on (default) |
| Operating Environment | 32°F to 122° F (0°C to 50°C), 10 to 90% RH non-condensing |
| Operating altitude | Up to 16,404ft (5,000m) |
| Model Number | Gas Type | Range (Units) | Low Level Alarm Adjustable (Default) | High Level Alarm Adjustable (Default) | Expected Sensor Life | Recommended Coverage Area |
| CD-6G (24V Only) | Carbon Dioxide (CO₂) | 0-5% V/V | OFF: 0,09,0,1…0,2…0,25,0,50,1,00,1,50,2,00,2,50,3,50,4,00 | OFF: 0,09,0,1…0,2…0,25,0,50,1,00,1,50,2,00,2,50,3,50,4,00 | 15 Years | Up to 5000 sq. ft.* |
| Photo | Model | Description |
|---|---|---|
| DVP-120, DVP-120M, DVP-120B, DVP-1200 | Control Panels | |
| PS-24, PS-24-H | Step-down Transformers | |
| DMK-1 | Duct Mount Kit | |
 |
HS-A, HS-B, HS-R, HS-C | Horn and Strobe (4 color options) |
 |
MRS-485, BRS-485 | Adapter Options |
 |
Calibration Kits | Based on Gas Type |
 |
WHK-1 | Weatherproof Housing Kit |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO CD-6G using the special form.
