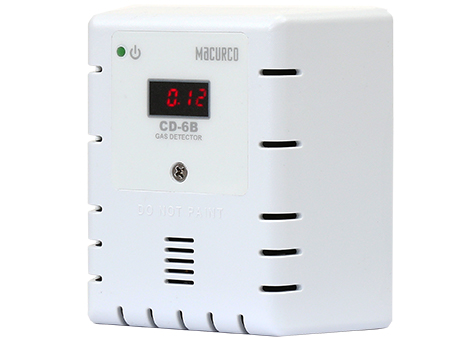

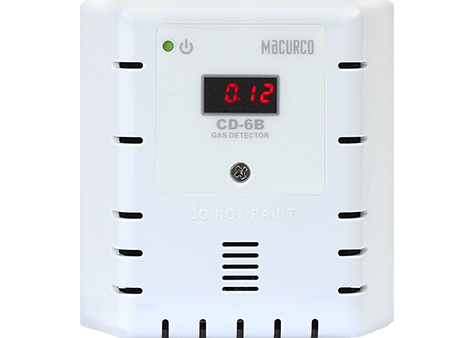

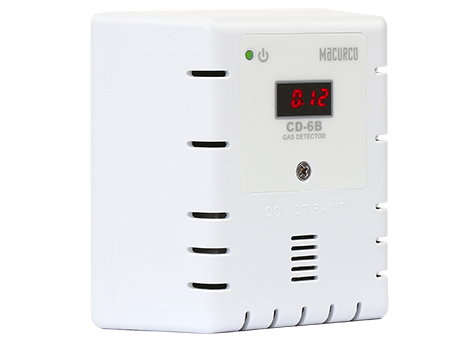

Made in USA. brand MACURCO, model CD-6B
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
price by request
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments
The CD-6B is a low voltage (12-24 VAC/VDC) monitor that provides three alarm levels using three separate relays for controlling external devices. This helps to maintain acceptable levels f Carbon Dioxide in the beverage and food industries, greenhouses, pharmaceutical, and other chemical processing or other commercial applications.
The CD-6B can be used as a stand-alone unit or connected to a burglar/fire panel. The monitor has a high range of 0-5% by vol. (0-50,000PPM) with a recommended coverage area of 900 – 5000 sq. ft.
Applications
| Size | 4 1/2 x 4 x 2 1/8 in. (11.4 X 10.2 X 5.4 cm) |
| Weight | 1 pound (0.45 kg) |
| Range | 0-5% by vol. (0-50,000PPM) |
| Low Level Alarm Adjustable (Default) | “dis”, 0.25, 0.50 (default), 1.00, 1.50, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00% |
| Medium Level Alarm Adjustable (Default) | “dis”, 0.25, 0.50, 1.00, 1.50 (default), 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00% |
| High Level Alarm Adjustable (Default) | “dis”, 0.25, 0.50, 1.00, 1.50, 2.00, 2.50, 3.00 (default), 3.50, 4.00, 4.50, 5.00% |
| Sensor Life | 15 Years |
| Recommended Coverage Area | 900 – 5,000 sq. ft. (Application dependent) |
| Voltage/Current | Power: 3 W (max) from 12 to 24 VAC or 12 to 32 VDC: Current (max) @ 24 VDC: 50 mA in alarm (three relays), 40 mA in alarm (two relays), 30 mA (1 relay only), and 25 mA (standby) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Ambient Humidity | 10-90% RH NonCondensing |
| Display | LED (can turn on/off) |
| Mounting | 4″ x 4″ electrical box |
| Relays | 3 SPDT to switch 2.0A load, up to 240 VAC or 30 VDC User adjustable settings |
| Certifications | ETL Listed |
| Warranty | Two Year Limited Warranty |
| Photo | Model | Description |
|---|---|---|
| DVP-120, DVP-120M, DVP-120B, DVP-1200 | Control Panels | |
| PS-24, PS-24-H | Step-down Transformers | |
| DMK-1 | Duct Mount Kit | |
 |
HS-A, HS-B, HS-R, HS-C | Horn and Strobe (4 color options) |
 |
MRS-485, BRS-485 | Adapter Options |
 |
Calibration Kits | Based on Gas Type |
 |
WHK-1 | Weatherproof Housing Kit |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO CD-6B using the special form.
You can buy MACURCO CD-6B in Latvia at a favourable price in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. MACURCO CD-6B price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
