Made in Germany. brand Leitenberger, model LSP 4000
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $11500
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

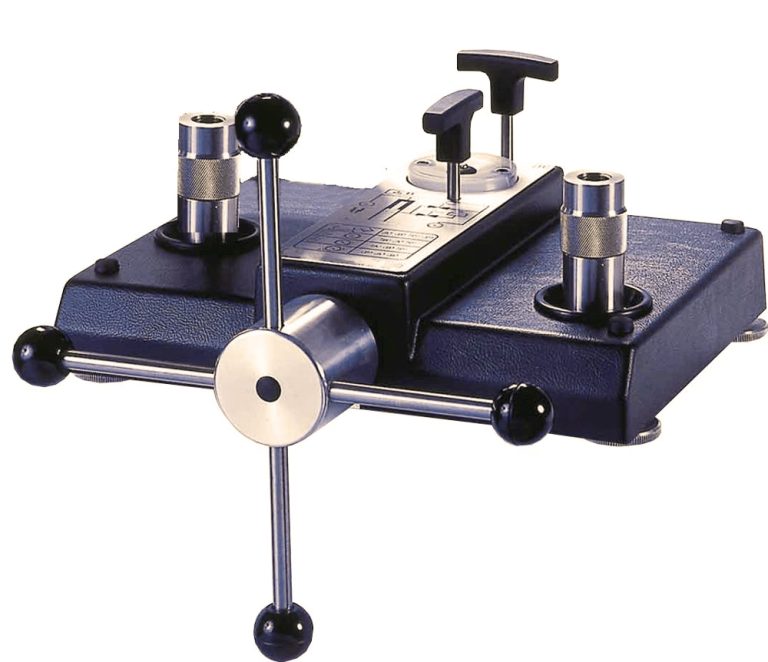

The LR-Cal LSP 4000 pressure comparison test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments of all types by means of comparison measurements. These pressure tests can take place stationary in the laboratory or workshop, but also on site at the measuring point.
If the pressure gauge to be tested and a sufficiently accurate reference pressure gauge are connected to the LR-Cal LSP 4000 pressure comparison test pump, the same pressure acts on both gauges when the pump is actuated. By comparing the two measured values at any pressure values, the measuring accuracy can be checked or the pressure gauge to be tested can be adjusted.
The LR-Cal LSP 4000 pressure comparison test pump can hydraulically generate pressures up to 4000 bar. The integrated dual-range spindle pump with changeover valves enables fast filling of the test system and trouble-free pressure build-up. At the same time, the precisely adjustable spindle pump is also used for fine pressure adjustment. An operating diagram for pressure generation on the top of the unit facilitates quick and easy operation.
Two unit versions are available: one is operated with mineral oil, the other with Sebacate oil.
The two pressure ports are equipped with free-running union nuts with 1/2″ BSP female threads with metal cones on both sides. Two high pressure thread adapters to M16x1.5 male threads are included as standard. For calibration of devices with other connection threads, additional thread adapters are available as accessories.
| Pressure range: | 0…4,000 bar (0…58,000 psi) |
| Pressure transmission medium: | Hydraulic fluid based on VG22 mineal oil (optional: sebacate oil) |
| Reservoir: | 170 cm³ |
| Test connections: | 2 x 1/2″ BSP female thread union nut with metal cone equipped with 2 thread adapters M16x1.5 as standard |
| Distance between test connections: | 290 mm |
| Low pressure piston diameter: | 31.2 mm |
| High pressure piston diameter: | 6.35 mm |
| Displacement: | approx. 5 cm³ |
| Wetted parts: | Austenitic stainless steel, high-tensile brass, nitrile rubber |
| Operating temperature: | 0…40°C |
| Dimensions: | Width 401 mm x Depth 397 mm x Height 155 mm |
| Weight: | 13.5 kg |
| Optional storage case: | Wood, width 664 mm x depth 614 mm x height 380 mm, weight 8.5 kg |
| CE conformity: | 97/23/EC (PS > 1,000 bar; module A, pressure accessory) |
| Order-Codes: | version for mineral oil: LSP-4000-MO version for sebacate oil: LSP-4000-SO |
| Photo | Model | Description |
|---|---|---|
| LSP-4000-AB | Storage box for pressure test pump LR-Cal LSP 4000 664 x 614 x 380 mm, wood, 8,5 kg |
|
| LSP-HP-FLUID | Mineral oil based hydraulic fluid bottle with 0,5 liter content suitable for high pressure | |
| SEBACATE-05 | Sebacate oil bottle with 0,5 liter content suitable for high pressure |
|
| HAP-02 | Hand suction pump, significantly facilitates the removal of the operating liquid from the pressure comparison test pump | |
| LSP-HP-A-M20 | Adapter for connection column M20 x 1,5 male thread with sealing cone made of hardened stainless steel |
|
| LSP-HP-A-916 | Adapter for connection column 7/16-18 UNF male thread with sealing cone made of hardened stainless steel |
|
| LSP-HP-A-M16 | Adapter for connection column M16 x 1,5 external thread with sealing cone made of hardened stainless steel |
| Model | Description | Price |
|---|---|---|
| LSP-4000-MO | Hydraulic operated bench type pressure comparator LR-Cal LSP 4000 Incl. two pressure ports M16 x 1.5 male with sealing cone (dual spindle pump) PN 4000 bar (58000 PSI), for MINERAL OIL | 11500 $ |
| LSP-4000-SO | Storage box | 420 $ |
| LSP-HP-FLUID | Mineral oil (0.5 l) | 160 $ |
| SEBACATE-05 | Sebacate oil (0.5 l) | 150 $ |
| LSP-4000-WARTUNG | Spare gaskets and O-rings | 130 $ |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LSP 4000 using the special form.
You can buy Leitenberger LSP 4000 in Latvia at a price starting from11500 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. Leitenberger LSP 4000 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
