Made in Germany. brand Leitenberger, model LSP 1000-H
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $3750
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

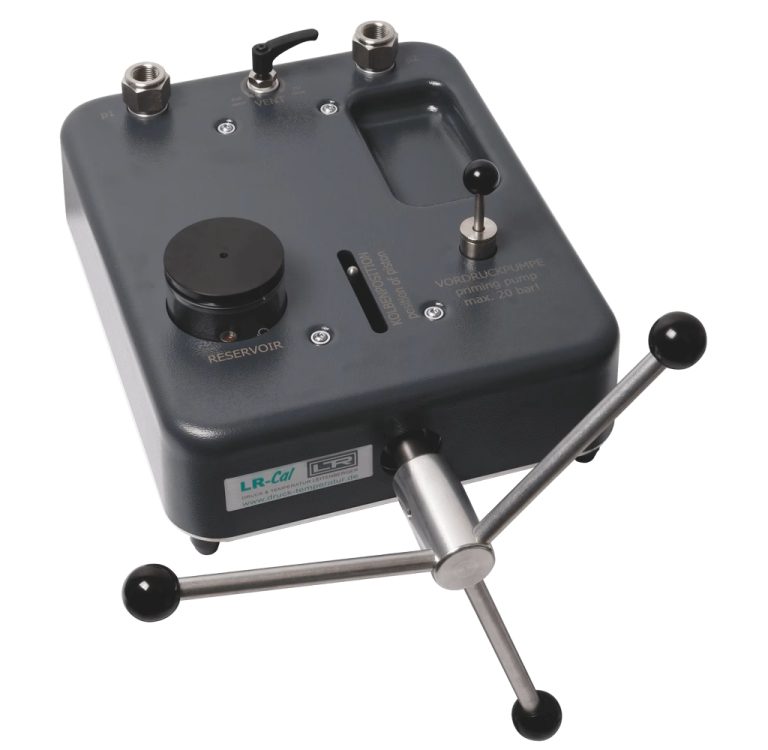

The LR-Cal LSP 1000-H pressure comparison test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments of all types by means of comparison measurements. These pressure tests can take place stationary in the laboratory or workshop, but also on site at the measuring point.

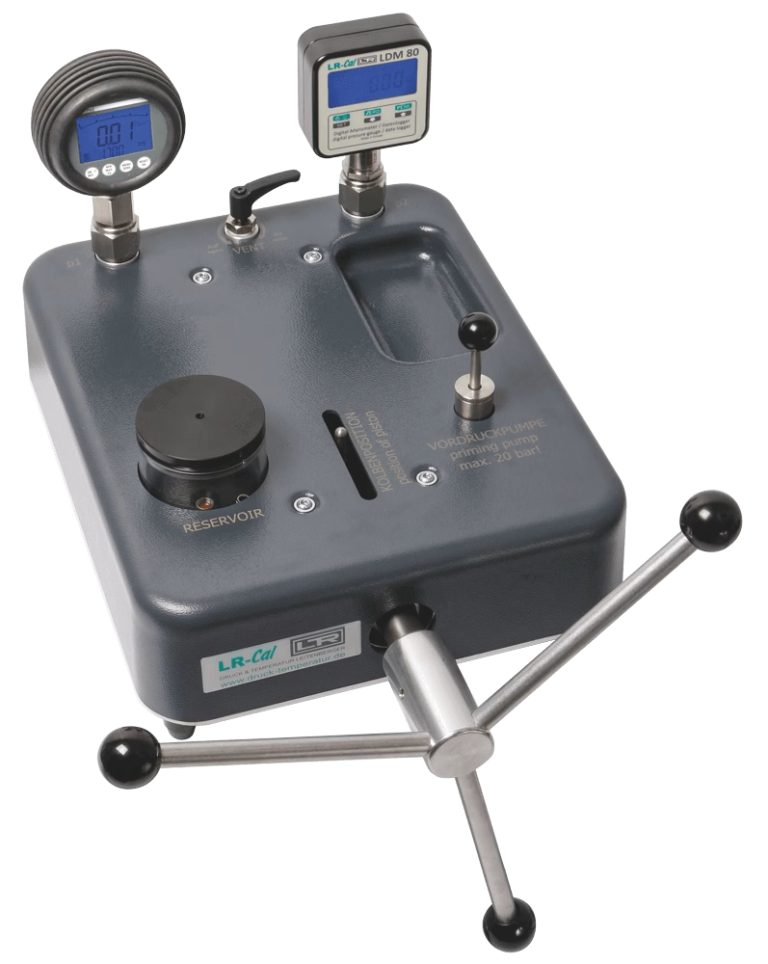

If the pressure gauge to be tested and a sufficiently accurate reference pressure gauge are connected to the LR-Cal LSP 1000-H pressure comparison test pump, the same pressure acts on both gauges when the pump is actuated. By comparing the two measured values at any pressure values, it is possible to check the measuring accuracy or adjust the pressure gauge to be tested.
For exact approaching of the measuring points, the pressure comparison test device (spindle pump) LR-Cal LSP 1000-H is equipped with a finely actuated spindle wheel. The device is characterized by a rotating spindle running only inside the pump body, thus eliminating a disadvantageous bending moment on a turned-out spindle and, especially for mobile use, there is also the advantage that the dimension of the pressure comparison test pump does not change during operation by turning the spindle. The LR-Cal LSP 1000-H pressure comparison test device requires only a very small amount of force.
To considerably reduce the risk of contamination of the operating medium, the pump is equipped with protective filters at the pressure connections and in the reservoir bottom. (Note: when operating with oil, the dirt strainer in the reservoir must be removed).
| Pressure generation | [bar] | 0…1,000 (14,500 psi) |
| Medium | Mineral oil based hydraulic fluids or destilled water | |
| Pressure ports | 2 x 1/2″ BSP female, rotating (incl. strainers and gaskets) | |
| Fluid reservoir | cm³ | 200 (with strainer) |
| Piston diameter | [mm] | 8 |
| Spindle stroke | [cm³] | approx. 3.9 (per turn approx. 0.1) |
| Needed force | [Nm] | at 250 bar: 2.0; at 500 bar: 4.0; at 1,000 bar: 8.0 |
| Materials | Stainless steel, aluminium, brass, Plexiglass, ABS, Viton and NBR | |
| Distance of pressure ports | [mm] | 181 |
| Dimensions | [mm] | D 388 x W 322 x H 167 (without star-handles) |
| Weight | [kg] | 10.5 |
| Design | Base plate with feet and rigid housing | |
| Order-Code | LSP-1000-H |
| Photo | Model | Description |
|---|---|---|
 |
CPB5000-FLUID | Hydraulic fluid based on mineral oil Bottle with 1 liter content |
 |
HAP-02 | Hand suction pump, significantly facilitates the removal of the operating liquid from the pressure comparison test pump. |
 |
BLINDSTOPFEN-G12-VA | Blanking plug 1/2″ BSP male, made of stainless steel, for shutting off a pressure connection |
 |
LSP-ADAPTER-SET | Stainless steel thread adapter set for pressure connection
1/2″ BSP M x 1/4″ BSP female |
 |
CPB5000-WA90 | Angled connection (90°) for test specimens or references with axial pressure connection at the back 1/2″ BSP M. With integrated seal and knurled nut for toolless pressure gauge change |
 |
VA-M16X2-G12A | Coupling System “MINIMESS® 1620″ x 1/2” BSP male for connection to pressure port |
 |
MMS-M16X2 | Pressure test hose (max. +70°C) System “MINIMESS® 1620” The following lengths are available: MMS-M16X2-1-0: length 1.0 meter MMS-M16X2-2-0: length 2.0 meter MMS-M16X2-3-2: length 3.2 meter MMS-M16X2-4-0: length 4.0 meter |
 |

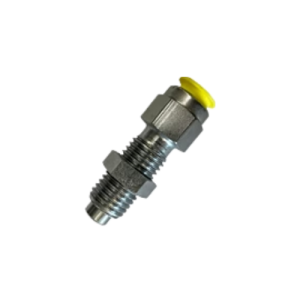

MSV-G12-M16X2 | MINIMESS® 1620″ system Manometer bulkhead fitting with 1/4″ BSP female thread |
 |

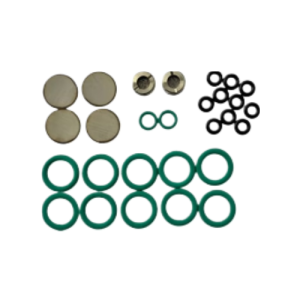

LSP-H-WARTUNG | Maintenance kitwith dirt sieves, O-rings, etc.
The instructions for this maintenance kit are included in the equipment manual. |
 |
LSP-VERSCHLUSS | Assembly Locking lever (incl. sealing rings) |
| Model | Description | Price |
|---|---|---|
| LSP-1000-H | Pressure comparator LR-Cal LSP 1000-H for water or hydraulic oil hydraulic operated (spindle pump), max. 1000 bar, incl. priming pump | 3750 $ |
| LSP-1000-H-S | Type LSP-1000-S, suitable for SKYDROL/brake fluids | 5100 $ |
| BLINDSTOPFEN-G12-VA | Blind plug 1/2″ BSP, st.st., for pressure ports (PN max. 3600 bar) | 87 $ |
| LSP-ADAPTER-SET | STAINLESS STEEL adapter set for pressure ports, PN max. 1600 bar, each 1 x 1/4″ BSP F, M20x1.5 F, 1/4″ NPT F and 1/2″ NPT F, set of gaskets | 114 $ |
| LSP-ADAPT-G12A-M16A | Adapter for LSP test port(s) to M 16 x 1 male, PN 1600 | 440 $ |
| LSP-H-WARTUNG | Maintenance kit for all LR-Cal LSP-H models Dirt traps, gaskets, seals, o-rings, etc. | 180 $ |
| LSP-H-WARTUNG-S | Maintenance kit for all LR-Cal LSP-H models, for SKYDROL | On request |
| CPB5000-FLUID | Special oil for all LSP-H types: 1 Liter | 68 $ |
| LSP-VERSCHLUSS | SPARE PART: Locking lever (kit) | 123 $ |
| VA-M16X2-G12A | MINIMESS 1620 coupling 1/2″ BSP male | 100 $ |
| MMS-M16X2-1-0 | MINIMESS 1620 Test Hose Pmax. 630 bar, Length 1.0 m | 25 $ |
| MMS-M16X2-2-0 | MINIMESS 1620 Test Hose Pmax. 630 bar, Length 2.0 m | 30 $ |
| MMS-M16X2-3-2 | MINIMESS 1620 Test Hose Pmax. 630 bar, Length 3,2 m | 36 $ |
| MMS-M16X2-4-0 | MINIMESS 1620 Test Hose Pmax. 630 bar, Length 4,0 m | 49 $ |
| MSV-G12-M16X2 | MINIMESS 1620 coupling for LSP comparison pumps (test port) | 22 $ |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LSP 1000-H using the special form.
You can buy Leitenberger LSP 1000-H in Latvia at a price starting from3750 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. Leitenberger LSP 1000-H price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
