Made in Germany. brand Leitenberger, model LPP 700
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $975
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

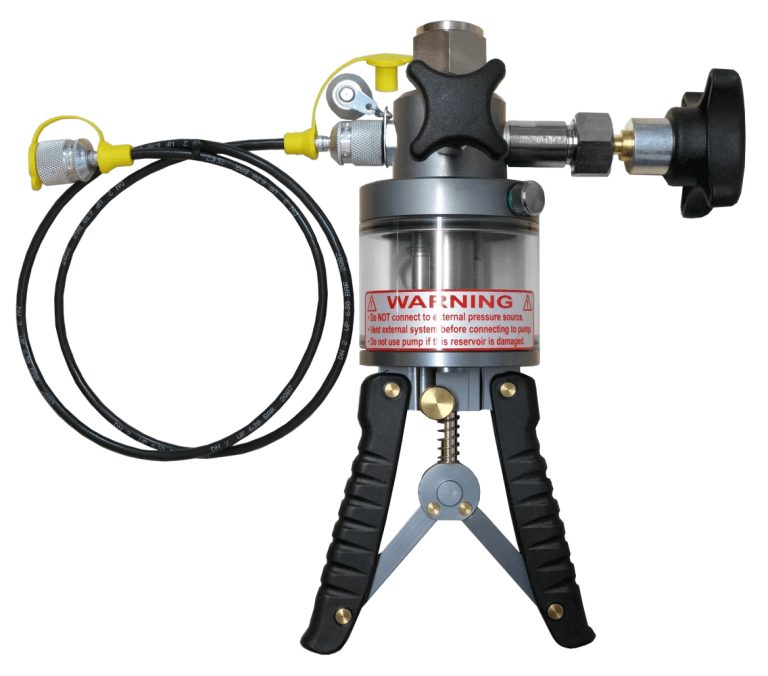

The LR-Cal LPP 700 pressure test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurement. These pressure tests can be carried out on a mobile basis, on site at the measuring point, or stationary in the laboratory or workshop.
If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LPP 700 pressure test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, it is possible to check the accuracy or adjust the pressure gauge to be tested.
Despite its very compact dimensions, the LR-Cal LPP 700 pressure test pump enables simple and accurate test pressure generation. For precise adjustment for accurate comparison testing, the LR-Cal LPP 700 has a fine adjustment valve. The reference gauge is screwed directly onto the top of the pump and the test item is connected via the connection hose with free-running 1/4″ BSP female thread included in the scope of delivery, using suitable thread adapters if necessary (see accessories).
The solid and high-quality construction ensures efficient and clean working with this hydraulic calibration hand test pump.
| Pressure generation: | 0 to 700 bar = 0 to 10,152 psi |
| Pressure ports (standard version): |
For reference instrument (on the top of the pump): 1/2″ BSP female (freely rotating), with integr. O-ring For test item (at the test hose): 1/4″ BSP female (freely rotating), with integr. O-ring This connection is made via an adapter, at the pump is a MINIMESS 1620 port. |
| Materials: | Aluminium, brass, ABS, Plexiglas, NBR |
| Priming pressure: | Hand lever |
| High pressure: | Switch-over knob, reduced lever stroke |
| Pressure fine adjustment: | Fine volume adjuster (with large volume) |
| Operating media: | Mineral oil based hydraulic fluid or destilled water |
| Fluid reservoir: | Volume > 200 cm³, can be filled during stroking |
| Dimensions: | approx. 270 x 160 x 120 mm (without test hose) |
| Weight: | approx. 1.3 kg (without test hose) |
| Order-Code: | LPP-700 |
| Photo | Model | Description |
|---|---|---|
 |
LPP-H-KOFFER | Rigid transport and storage case with molded foam insert |
 |
CPB5000-FLUID | Acid free hydraulic oil Bottle with 1 l capacity Suitable for hydraulic calibration hand test pumps |
 |
LPP-ADAPTER-BSP | Set of BSP thread adapter incl. set of suitable O-ring seals for test item port of the pump
1/4″ BSP m x 1/8″ BSP female |
 |
LPP-O-RING-BSP | Spare part for thread adapter set code LPP-O-RING-BSP Set of O-rings |
 |
LPP-ADAPTER-NPT | Set of NPT adapter incl. suitable O-ring seals for test item port of the pump
1/4″ BSP m x 1/8″ NPT female |
 |
LPP-ADAPTER-M | Set of metric adapter and “Minimess® 1620″ for test item port of the pump
1/4″ BSP m x M 12 x 1,5 female |
 |
LPP-MANO-K06 | Analog reference pressure gauge DS 100, accuracy ±0.6 FS |
 |
MMS-M16X2 | Assembly Pressure test hose (max. +70°C) System “MINIMESS® 1620” |
| LPP-H-WARTUNG | Maintenance kit for LR-Cal LPP 700 with O-rings, screw and seals | |
| SMK-M16X2-G14A | Assembly Measuring coupling MINIMESS® 1620″ system for connection to the side of the pressure test pump |
|
| MSV-G14-M16X2 | Assembly Test piece connection System “MINIMESS® 1620 with 1/4” BSP free running female thread (manometer bulkhead fitting) |
| Model | Description | Price |
|---|---|---|
| LPP-700 | Hydraulic hand held test pump for generating pressure up to 10000 PSI. High quality construction. To be used with oil or water. Including Test Hose PN 9100 PSI (MINIMESS) | from 975 $ |
| LPP-700-OXY | Hydraulic hand held test pump for generating pressure up to 10000 PSI, free of oil, suitable for OXYGEN, WITHOUT hose | On request |
| LPP-H-KOFFER | Carrying Case with foams for LR-Cal LPP 700 with space for set of adapters and reference pressure gauge | from 168 $ |
| LPP-O-RING-BSP | Set of spare o-rings for adapter set code LPP-ADAPTER-BSP | from 15 $ |
| LPP-ADAPTER-BSP | BSP adapter set and set of spare o-rings, suitable for test port 1/8″ BSP F, 3/8″ BSP F, 1/2″ BSP F and 1/2″ BSP M | from 131 $ |
| LPP-ADAPTER-M | Adapter set and set of spare o-rings, suitable for test port M 12 x 1.5, M 20 x 1.5 and Minimess® | from 131 $ |
| LPP-ADAPTER-NPT | NPT adapter set and set of spare o-rings, suitable for test port 1/8″ NPT F, 1/4″ NPT F, 3/8″ NPT F and 1/2″ NPT F | from 131 $ |
| LPP-H-WARTUNG | Service kit for LR-Cal LPP 700 | from 164 $ |
| CPB5000-FLUID | Hydraulic oil for LR-Cal LPP 700: 1 Liter | from 68 $ |
| LPP-MANO-0060 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-60 bar / 0-800 PSI | from 131 $ |
| LPP-MANO-0100 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-100 bar / 0-1400 PSI | from 131 $ |
| LPP-MANO-0160 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-160 bar / 0-2000 PSI | from 131 $ |
| LPP-MANO-0250 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-250 bar / 0-3000 PSI | from 131 $ |
| LPP-MANO-0400 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-400 bar / 0-5000 PSI | from 131 $ |
| LPP-MANO-0600 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-600 bar / 0-8000 PSI | from 131 $ |
| SMK-M16X2-G14A | MINIMESS 1620 coupling 1/4″ BSP male | from 22 $ |
| VA-M16X2-G12A | MINIMESS 1620 coupling 1/2″ BSP male | from 99 $ |
| MMS-M16X2-1-0 | MINIMESS 1620 test hose PN 630 bar, length 1.0 m | from 25 $ |
| MMS-M16X2-2-0 | MINIMESS 1620 test hose PN 630 bar, length 2.0 m | from 30 $ |
| MMS-M16X2-3-2 | MINIMESS 1620 test hose PN 630 bar, length 3.2 m | from 36 $ |
| MMS-M16X2-4-0 | MINIMESS 1620 test hose PN 630 bar, length 4.0 m | from 49 $ |
| MSV-G14-M16X2 | MINIMESS 1620 coupling for LPP test port (at the hose) | from 17 $ |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LPP 700 using the special form.
You can buy Leitenberger LPP 700 in Latvia at a price starting from975 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. Leitenberger LPP 700 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
