Made in Germany. brand Leitenberger, model LPP 60-T
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $790
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

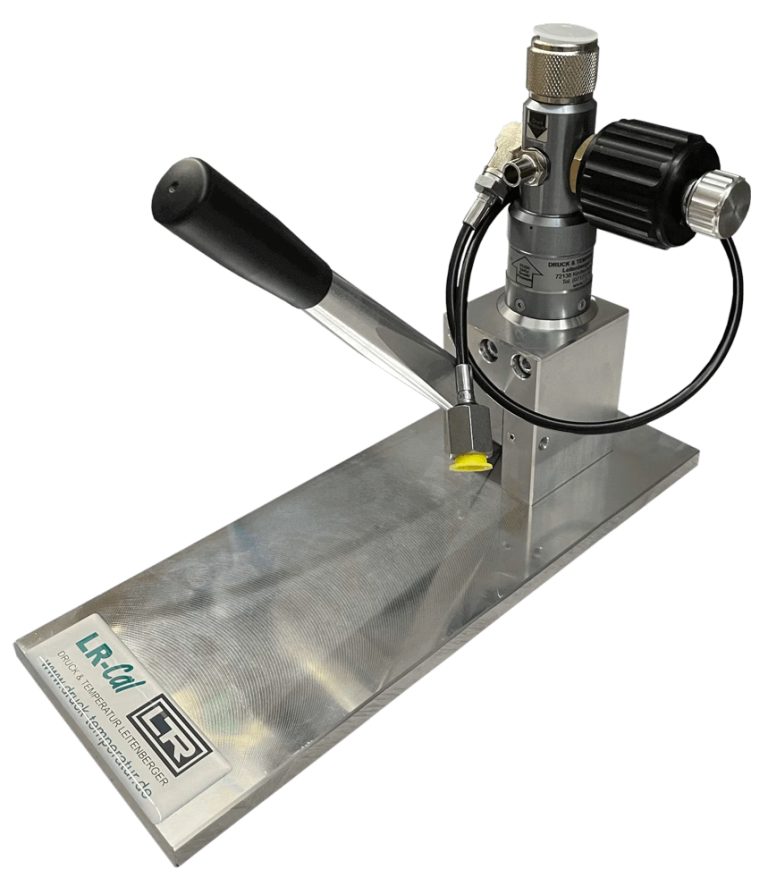

The LR-Cal LPP 60-T pneumatic pressure comparison test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by means of comparison measurement. These pressure tests can be carried out stationary in the laboratory or workshop or on site at the measuring point.
If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LPP 60-T pressure comparison test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, it is possible to check the accuracy or adjust the pressure gauge to be tested.

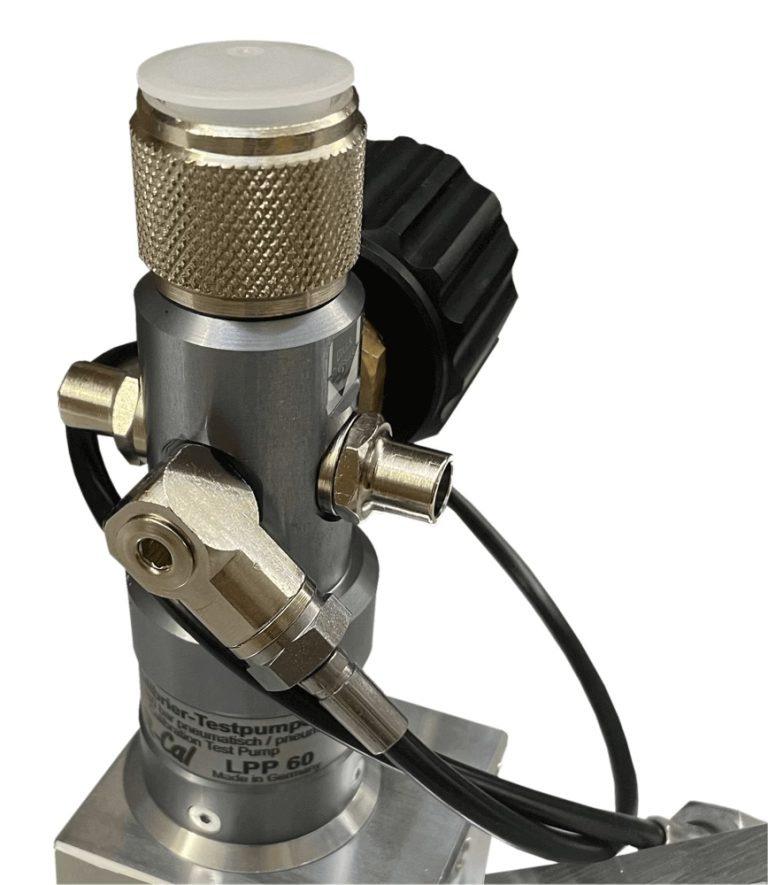

Despite its very compact dimensions, the LR-Cal LPP 60-T pressure comparison test pump enables simple and accurate test pressure generation with the option of switching to vacuum generation. For precise adjustment for accurate comparison testing, the LR-Cal LPP 60-T has a fine adjustment valve. The reference gauge is screwed directly onto the top of the pump and the test specimen is connected via the connection hose with free-running 1/4″ BSP female thread included in the scope of delivery, if necessary using suitable thread adapters (see accessories).
| Pressure generation: | 0 to 60 bar = 0 to 870 psi, switchable to |
| Vacuum generation: | 0 to -0.95 bar = 0 to -28 inHg |
| Pressure ports (standard version): |
For reference instrument: 1/2″ BSP female, rotating, with integr. O-ring sealing, on the top of the pump. For test item: 1/4″ BSP female, rotating, with integr. O-ring sealing, at the included pressure test hose |
| Materials: | Aluminium, Brass, NBR |
| Priming pressure: | hand lever |
| High pressure: | Volume variator |
| Pressure fine adjustment: | Volume variator (fine graduated pressure adjustment with large volume) |
| Dimension: | approx. 150 x 300 x 215 mm |
| Weight: | approx. 2.55 kg |
| Order-Code: | LPP-60-T |
| Photo | Model | Description |
|---|---|---|
 |

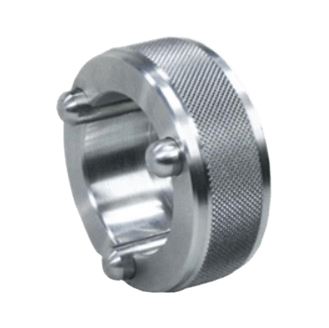

LPP-VOLUMEN-TOOL | Tool (made of aluminum) for attaching to the fine adjustment valve. It increases the diameter and makes high pressure generation and fine pressure adjustment even easier. |
 |
LPP-60-T-KOFFER | Rigid transport and storage case with molded foam insert |
 |

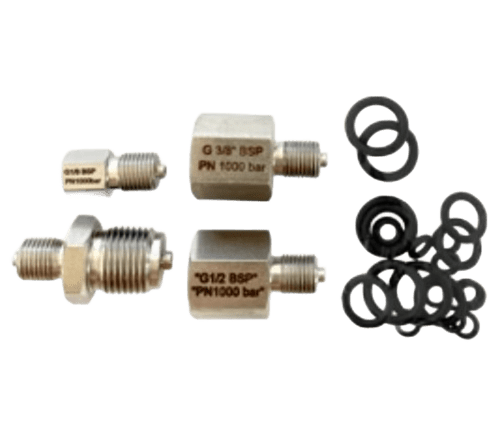

LPP-ADAPTER-BSP | Set of BSP thread adapter incl. set of suitable O-ring seals for test item port of the pump |
 |

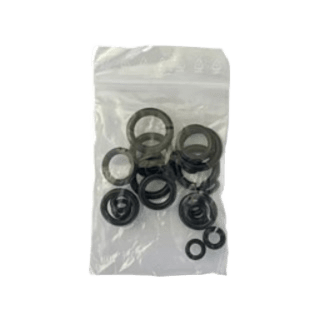

LPP-O-RING-BSP | Spare part for thread adapter set code LPP-ADAPTER-BSP: Set of O-rings |
 |

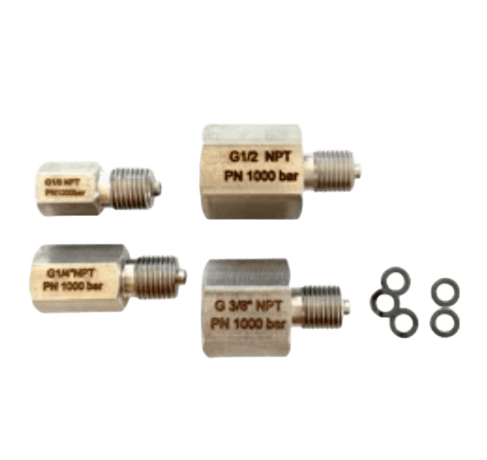

LPP-ADAPTER-NPT | Set of NPT adapter including suitable O-ring seals for test item port of the pump |
 |

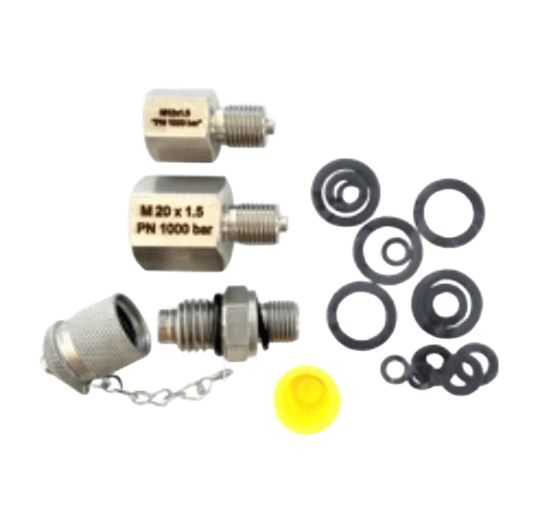

LPP-ADAPTER-M | Set of metric adapter and “Minimess® 1620”, including suitabel O-ring seals for test item port of the pump |
 |

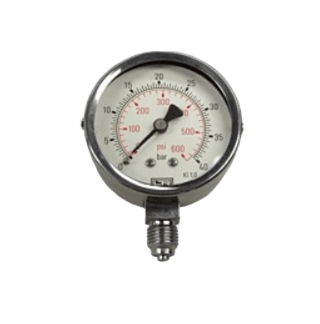

LPP-MANO-… | Analog reference pressure gauge DS 63, accuracy ±1.0% FS |
 |

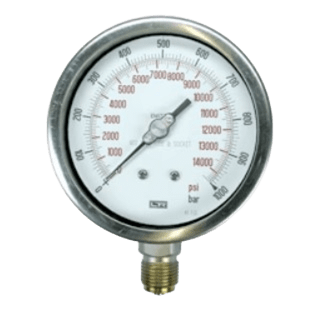

LPP-MANO-K06 | Analog reference pressure gauge DS 100, accuracy ±0.6% FS |
| Model | Description | Price |
|---|---|---|
| LPP-60-T | Pneumatic test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. | 790 $ |
| LPP-60-T-G14 | Pneumatic test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Reference port 1/4″ BSP female, rotating | 790 $ |
| LPP-60-T-G38I | Pneumatic test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Reference port 3/8″ BSP female | 790 $ |
| LPP-60-T-N14 | Pneumatic test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. both ports 1/4″ NPT | 850 $ |
| LPP-60-T-OXY | Pneumatic test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. oxygen vers. | 1730 $ |
| LPP-VOLUMEN-TOOL | Tool for volume adjustment valve (volume control extender) to make operation quite more simply and faster | 58 $ |
| LPP-60-T-KOFFER | Transit case with foams, suitable for LR-Cal LPP 60-T and for accessories (adapters, seals) and reference instrument | 162 $ |
| LPP-ADAPTER-BSP | BSP adapter set and set of spare o-rings, suitable for test port 1/8″ BSP F, 3/8″ BSP F, 1/2″ BSP F and 1/2″ BSP M | 131 $ |
| LPP-ADAPTER-M | Adapter set and set of spare o-rings, suitable for test port M 12 x 1.5, M 20 x 1.5 and Minimess® | 131 $ |
| LPP-ADAPTER-NPT | NPT adapter set and set of spare o-rings, suitable for test port 1/8″ NPT F, 1/4″ NPT F, 3/8″ NPT F and 1/2″ NPT F | 131 $ |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LPP 60-T using the special form.
You can buy Leitenberger LPP 60-T in Latvia at a price starting from790 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. Leitenberger LPP 60-T price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
