Pneumatic pressure test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Pressure port for reference pressure instrument: 1/2″ BSP female rotating incl. 1 hose to fit unit under test, with 1/4″ BSP F pressure port
Made in Germany. brand Leitenberger, model LPP 60
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $629
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

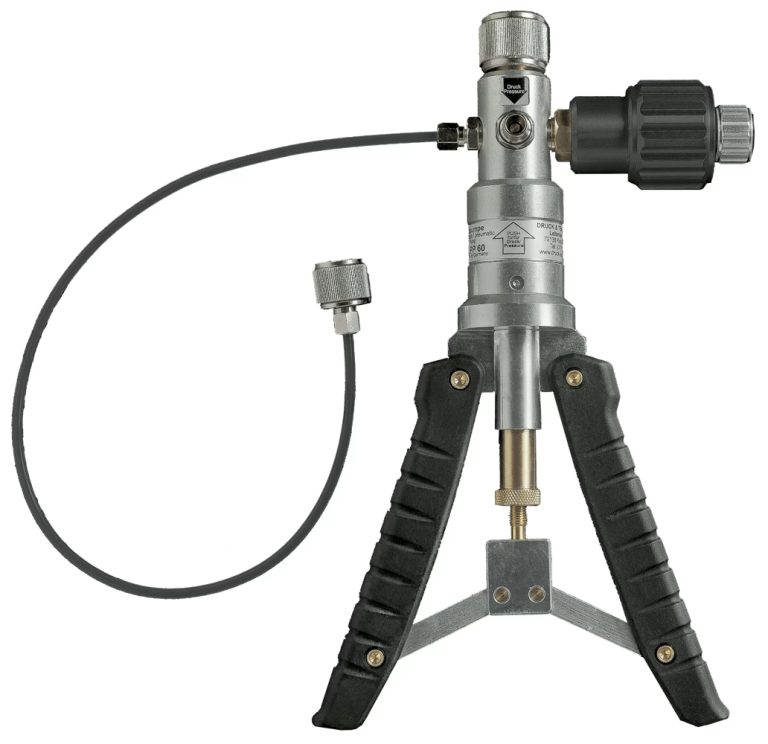

The LR-Cal LPP 60 pressure test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurement. These pressure tests can be carried out on a mobile basis, on site at the measuring point, or stationary in the laboratory or workshop.

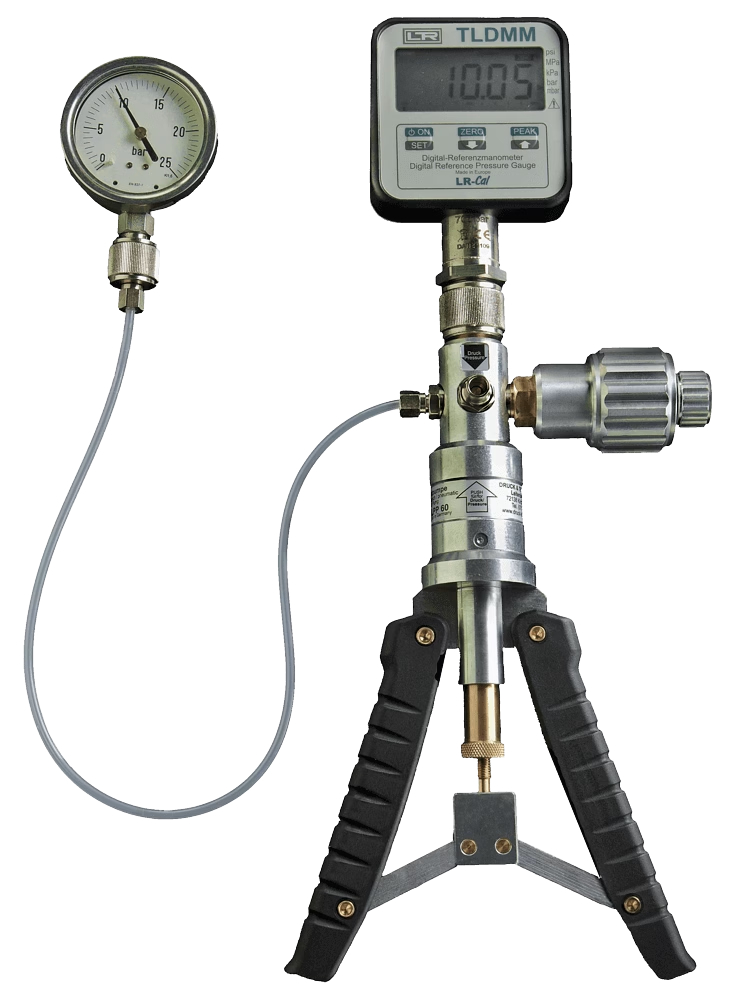

If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LPP 60 pressure test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, a check of the accuracy or an adjustment of the pressure gauge to be tested can be made.
Despite its very compact dimensions, the LR-Cal LPP 60 pressure test pump enables simple and accurate test pressure generation with the option of switching to vacuum generation. For precise adjustment for accurate comparative testing, the LR-Cal LPP 60 has a fine adjustment valve. The reference gauge is screwed directly onto the top of the pump and the test specimen is connected via the connection hose with free-running 1/4″ BSP female thread included in the scope of delivery, if necessary using suitable thread adapters (see accessories).
| Pressure generation: | 0 to 60 bar = 0 to 870 psi, switchable to |
| Vacuum generation: | 0 to -0.95 bar = 0 to -28 inHg |
| Pressure ports (standard version): |
For reference instrument: 1/2″ BSP female, freely rotating, with integr. O-ring, on the top of the pump For test item: 1/4″ BSP female, freely rotating, with integr. O-ring, at the pressure test hose of the pump |
| Materials: | Aluminium, brass, ABS, NBR |
| Priming pressure: | Hand lever |
| High pressure: | Volume adjustment valve |
| Fine adjustment: | Volume adjustment valve (fine adjustment, large volume) |
| Dimension: | approx. 290 x 185 x 65 mm |
| Weight: | approx. 960 g |
| Order-Code: | LPP-60 |
| Photo | Model | Description |
|---|---|---|
| LPP-VOLUMEN-TOOL | Tool (made of aluminum) for attaching to the fine adjustment valve. It increases the diameter and makes high pressure generation and fine pressure adjustment even easier. | |
 |

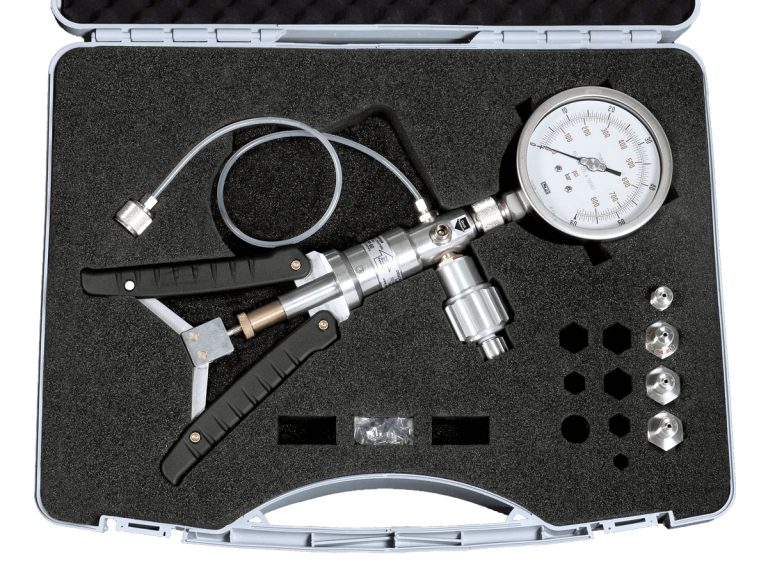

LPP-KOFFER | Rigid transport and storage case with molded foam insert |
 |
LPP-ADAPTER-BSP | Set of BSP thread adapter incl. set of suitable O-ring seals for test item port of the pump
1/4″ BSP m x 1/8″ BSP female |
 |
LPP-O-RING-BSP | Spare part for thread adapter set code LPP-ADAPTER-BSP: Set of O-rings |
 |
LPP-ADAPTER-NPT | Set of NPT adapter including suitable O-ring seals for test item port of the pump
1/4″ BSP m x 1/8″ NPT female |
 |
LPP-ADAPTER-M | Set of metric adapter and “Minimess® 1620″, including suitabel O-ring seals for test item port of the pump
1/4″ BSP m x M 12 x 1,5 female |
 |
LPP-MANO-… | Analog reference pressure gauge DS 63, accuracy ±1.0% FS LPP-MANO-0002: 0…2 bar/psi LPP-MANO-0011: 0…11 bar/psi LPP-MANO-0025: 0…25 bar/psi LPP-MANO-0040: 0…40 bar/psi LPP-MANO-0000: -1…0 bar/inHg LPP-MANO-0039: -1…+39 bar/psi |
 |
LPP-MANO-K06 | Analog reference pressure gauge DS 100, accuracy ±0.6% FS LPP-MANO-0004-K06: 0…4 bar LPP-MANO-0025-K06: 0…25 bar LPP-MANO-0040-K06: 0…40 bar LPP-MANO-0000-K06: -1…0 bar LPP-MANO-0039-K06: -1…+39 bar |
| LPP-WARTUNG | Maintenance set with circlip, sealing washers, countersunk screws, quad ring and O-rings |
|
| LPP-SCHLAUCH-S | Assembly Test item connection hose with test item connection 1/4″ BSP female free-running internal thread. |
|
 |
LPP30-ASS-G12 | Assembly reference device connection with 1/2″ BSP free-running female thread |
 |
LPP30-ASS-G14 | Assembly reference device connection with 1/4″ BSP free-running female thread |
| Model | Description | Price |
|---|---|---|
| LPP-60 | Pneumatic pressure test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, without case and acc. Pressure port for reference pressure instrument: 1/2″ BSP female rotating incl. 1 hose to fit unit under test, with 1/4″ BSP F pressure port | from 629 $ |
| LPP-60-G14 | Pneumatic pressure test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, reference port 1/4″ BSP female, rotating | from 629 $ |
| LPP-60-G38I | Pneumatic pressure test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, reference port 3/8″ BSP female | from 629 $ |
| LPP-60-N14 | Pneumatic pressure test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, both ports 1/4″ NPT | from 629 $ |
| LPP-60-OXY | Pneumatic pressure test pump for generating pressure up to +60 bar, switchable for generating vacuum up to -0.95 bar, oxygen version | On request |
| LPP-VOLUMEN-TOOL | Tool for volume adjustment valve of the LR-Cal LPP 60 (volume control extender), to make operation quite more simply and faster | from 58 $ |
| LPP-60-KOFFER | Transit case with foams, suitable for LR-Cal LPP 60 and for accessories (adapters, seals) and reference instrument | from 189 $ |
| LPP-ADAPTER-BSP | BSP adapter set and set of spare o-rings, suitable for test port 1/8″ BSP F, 3/8″ BSP F, 1/2″ BSP F and 1/2″ BSP M | from 131 $ |
| LPP-ADAPTER-M | Adapter set and set of spare o-rings, suitable for test port M 12 x 1.5, M 20 x 1.5 and Minimess® | from 131 $ |
| LPP-ADAPTER-NPT | NPT adapter set and set of spare o-rings, suitable for test port 1/8″ NPT F, 1/4″ NPT F, 3/8″ NPT F and 1/2″ NPT F | from 131 $ |
| LPP-MANO-0002 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2″ BSP M. 0 – 2 bar / 0 – 30 PSI | from 85 $ |
| LPP-MANO-0011 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2″ BSP M. 0 – 11 bar / 0 – 160 PSI | from 85 $ |
| LPP-MANO-0025 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2″ BSP M. 0 – 25 bar / 0 – 365 PSI | from 85 $ |
| LPP-MANO-0040 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2″ BSP M. 0 – 40 bar / 0 – 600 PSI | from 85 $ |
| LPP-MANO-0060 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2″ BSP M. 0 – 60 bar / 0 – 870 PSI (NG 100 / DS 100) | from 125 $ |
| LPP-MANO-0000 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2″ BSP M. -1 / 0 bar / -30/0 inHG Vakuum / vacuum | from 85 $ |
| LPP-MANO-0039 | Analogue reference pressure gauges DS 63, Accuracy 1.0 with fine graduated dial, pressure conn. 1/2″ BSP M. -1 / +39 bar / -30 inHg / +580 PSI | from 85 $ |
| LPP-MANO-0004-K06 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st.0 – 4 bar / 0 – 60 PSI | from 183 $ |
| LPP-MANO-0025-K06 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st.0 – 25 bar / 0 – 365 PSI | from 183 $ |
| LPP-MANO-0040-K06 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st.0 – 40 bar / 0 – 600 PSI | from 183 $ |
| LPP-MANO-0000-K06 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st.-1…0 bar / -30 inHg…0 | from 183 $ |
| LPP-MANO-0039-K06 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st.-1 / +39 bar / -30 inHG / +580 PSI | from 335 $ |
| LPP-WARTUNG | Service kit for LPP 40 (gaskets, o-rings, etc.) | from 72 $ |
| LPP30-ASS-G12 | For LPP-40-G38I: Reference device connection G 1/2 internal, free-floating | from 34 $ |
| LPP30-ASS-G14 | For LPP-40-G38I: Reference device connection G 1/4 internal, free-floating | from 34 $ |
| LPP-O-RING-BSP | Set of spare o-rings for adapter set code LPP-ADAPTER-BSP | from 15 $ |
| LPP-SCHLAUCH-S-0050 | Pressure test hose, length 0.5 meters | from 52 $ |
| LPP-SCHLAUCH-S-0075 | Pressure test hose, length 0.75 meters | from 58 $ |
| LPP-SCHLAUCH-S-0100 | Pressure test hose, length 1.0 meters | from 60 $ |
| LPP-SCHLAUCH-S-0150 | Pressure test hose, length 1.5 meters | from 63 $ |
| LPP-SCHLAUCH-S-0180 | Pressure test hose, length 1.8 meters | from 90 $ |
| LPP-SCHLAUCH-S-0200 | Pressure test hose, length 2.0 meters | from 72 $ |
| LPP-SCHLAUCH-S-0250 | Pressure test hose, length 2.5 meters | from 100 $ |
| LPP-SCHLAUCH-S-0300 | Pressure test hose, length 3.0 meters | from 107 $ |
| LPP-SCHLAUCH-S-0500 | Pressure test hose, length 5.0 meters | from 136 $ |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LPP 60 using the special form.
You can buy Leitenberger LPP 60 in Latvia at a price starting from629 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. Leitenberger LPP 60 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
