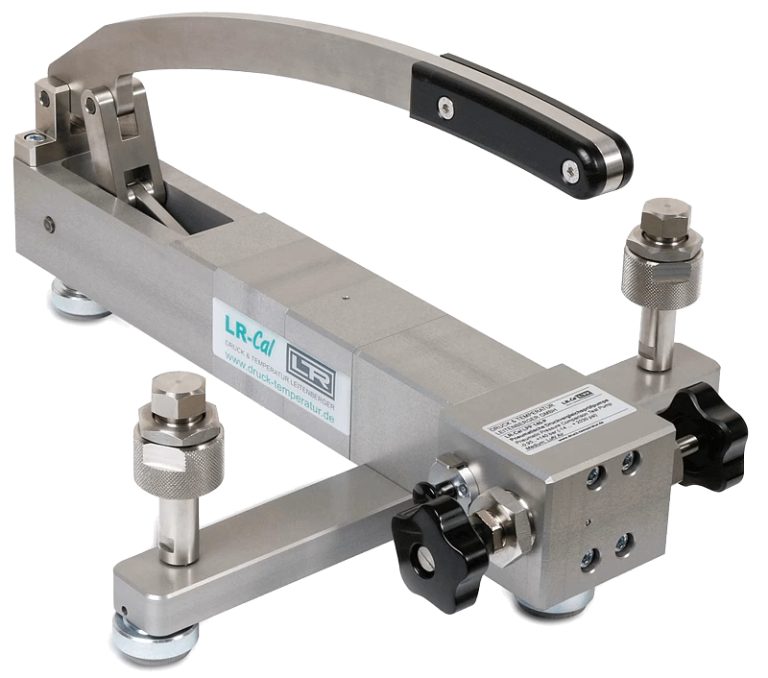

This pneumatic pressure comparison test pump is used to generate test pressure for checking, adjusting and calibrating all types of mechanical and electronic pressure measuring devices by means of comparative measurements. The LR-Cal LPP 140-P pressure comparison test pump requires a solid base (e.g. a workbench).

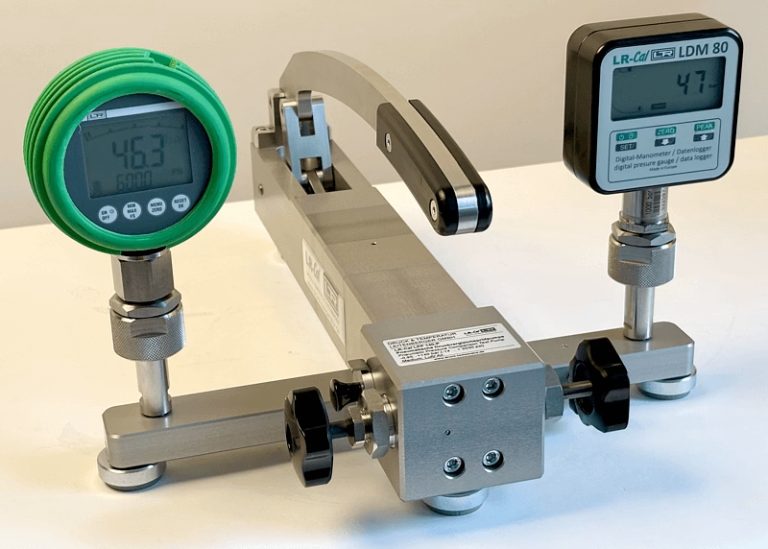

If the pressure measuring device to be tested and a suffciently accurate reference pressure measuring device are connected to the pressure comparison test pump, the same pressure acts on both measuring devices when the pump is actuated. By comparing the two measured values at any pressure value, the accuracy or adjustment of the unit under test can be checked.

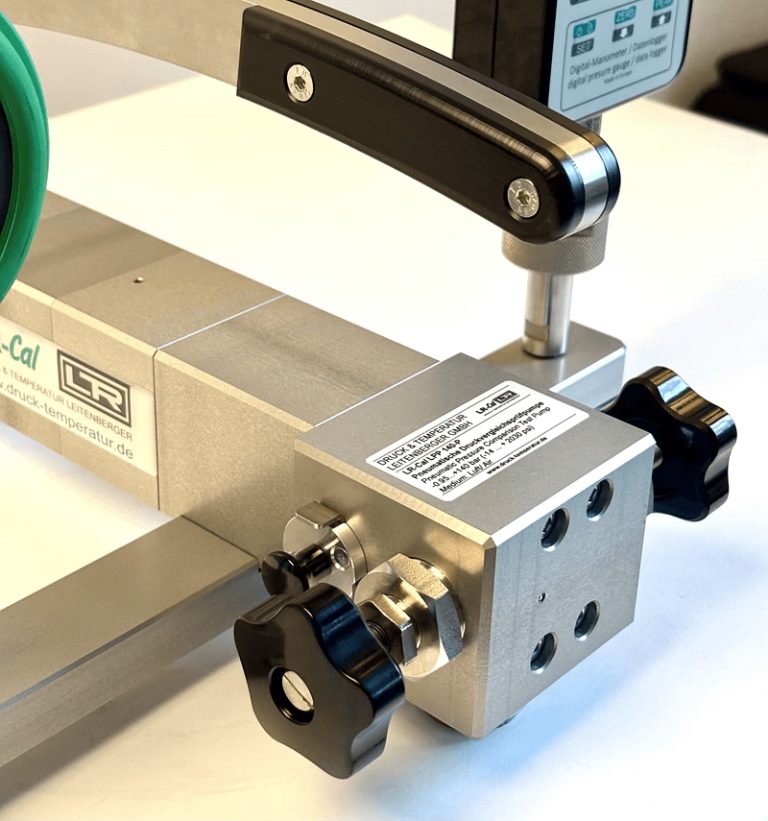

The LR-Cal LPP 140-P pressure comparison test pump is equipped with a fne adjustment valve for precise approach of the measuring points. The test pump uses ambient air as the test medium. It is characterized by its simple and effective handling and works independently, so no external pressure source is required.
Note:
The performance of the pressure comparison test pump LR-Cal LPP 140-P depends on the total volume of the calibration circuit. The lower the volume, the higher the performance. The larger the volume, the more sensitively the test pressure can be adjusted.
| Description: | Data: |
|---|---|
| Pressure generation area: | -0.85…+140 bar / -12…+2,030 psi |
| Pressure ports: | 2 x M28 x 1.5 female rotating (quick release) with 2 thread inserts 1/2″ BSP female |
| Pressure transmission medium: | Ambient air |
| Test pressure generation: | Lever pump |
| Test pressure fine adjustment: | Fine adjustment valve |
| Resolution: | Better than 1 mbar |
| Materials: | Aluminum alloy, copper and stainless steel |
| Dimensions: | W 288 x H 175 x D 405 mm |
| Weight: | approx. 6.5 kg |
| Operating temperature: | 18…28°C / 64…82°F |
| Storage temperature: | -10…+50°C / 14…122°F |
| Permissible medium: | Air |
| Order-Code: | LPP-140-P |
| Photo | Model | Description |
|---|---|---|
 |
LPP-140-P-AS-G14 | Thread insert in st.st. for pressure ports 1/4″ BSP female |
|
LPP-140-P-AS-N12 | Thread insert in st.st. for pressure ports 1/2″ NPT female |
|
LPP-140-P-AS-N14 | Thread insert in st.st. for pressure ports 1/4″ NPT female |
 |
LPP-140-P-KOFFER | Rigid storage and transport case with foam insert |
 |
LPP-140-P-WARTUNG | Maintenance set O-rings in NBR (2 x 8.0 x 2.0 + 1 x 3.0 x 1.5 + 2 x 7.0 x 1.5 + 1 x 13.0 x 2.0 + 1 x 8.0 x 2.0) |
 |
KDV-P-03 | Calibration pressure manifold with 3 test item connections. Test up to 3 test specimens simultaneously. |
|
LPP-140-P-AS-G12 | Thread insert in st.st. for pressure ports 1/2″ BSP female |
 |
BLINDSTOPFEN-G12-VA | Blind plug 1/2″ BSP male in st.st. For shutting off pressure port |
 |
LPP-140-P-ET-DAVT | Assembly pressure release valve incl. 1 O-ring 3 x 1.5 mm |
 |
LPP-140-P-ET-DFRV | Assembly pressure fine adjustment valve incl. 1 O-ring 13 x 2 mm + 1 O-ring 8 x 2 mm |
 |
LPP-140-P-ET-DABV | Assembly pressure maintaining valve (shut-off valve) |
 |
LPP-140-P-ET-DVUS | Assembly pressure maintaining/shut-off valve Incl. 2 O-rings 7 x 1.5 mm |
| Model | Description | Price |
|---|---|---|
| LPP-140-P | Bench type pneumatic pressure comparison test pump LR-Cal LPP 140-P 2 pressure ports 1/2″ BSP female, inkl. blind plugs | 4600 $ |
| LPP-140-P-AS-G14 | Thread insert in st.st. for pressure ports, with 1/4″ BSP female conn. | On request |
| LPP-140-P-AS-N12 | Thread insert in st.st. for pressure ports, with 1/2″ NPT female conn. | On request |
| LPP-140-P-AS-N14 | Thread insert in st.st. for pressure ports, with 1/4″ NPT female conn. | On request |
| LPP-140-P-KOFFER | Storage and carrying case with foam insert | 180 $ |
| LPP-140-P-WARTUNG | Maintenance kit with o-rings in NBR 2 x 8×2 + 1 x 3×1, 5 + 2 x 7×1,5 + 1 x 13×2 + 1 x 8×2 mm | On request |
| LPP-140-P-AS-G12 | Thread insert in st.st. for pressure ports, with 1/2″ BSP female conn. | On request |
| BLINDSTOPFEN-G12-VA | Blind plug in st.st. for pressure ports, 1/2″ BSP male | 87 $ |
| LPP-140-P-ET-DAVT | Assembly: Pressure release valve (incl. o-ring) | On request |
| LPP-140-P-ET-DFRV | Assembly: Pressure fine adjustment valve (incl. o-rings) | On request |
| LPP-140-P-ET-DABV | Assembly: Pressure mantaining/shut-off valve | On request |
| LPP-140-P-ET-DVUS | Assembly: Pressure/vacuum switch (incl. o-rings) | On request |
| KDV-P-03 | Calibration pressure manifold LR-Cal KDV-P-03 with 3 shut-off valves and 3 pressure ports 1/4″ BSP female | On request |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LPP 140-P using the special form.
