Made in Germany. brand Leitenberger, model LPP 1000
Fast delivery to Latvia, Estonia and Lithuania. International delivery to Europe, Asia, Africa and other continents available on request
Our warehouse is located in Riga, Latvia.
Retail price from $1492
Available
Official distributor in Latvia
Time-tested American, European and Asian brands of control and measurent instruments
Special price list for organisations
We offer a significant discount for trade organisations and manufacturing companies
Worldwide shipping on request
We take care of all logistics and customs clearance. Fast delivery to Baltic countries
After-sales service and support
Warranty service and repair, expert assistance in the operation of the instruments

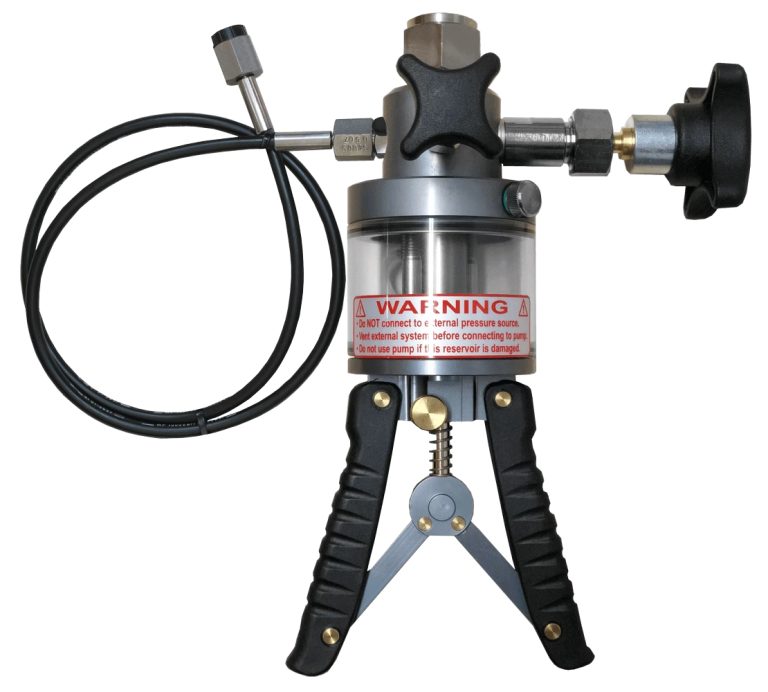

The LR-Cal LPP 1000 pressure test pump is used to generate pressure for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurement. These pressure tests can be carried out on a mobile basis, on site at the measuring point, or stationary in the laboratory or workshop.
If the measuring instrument to be tested and a sufficiently accurate reference measuring instrument are connected to the LR-Cal LPP 1000 pressure test pump, the same pressure acts on both measuring instruments when the pump is actuated. By comparing the two measured values at any pressure values, it is possible to check the accuracy or adjust the pressure gauge to be tested.
Despite its very compact dimensions, the LR-Cal LPP 1000 pressure test pump enables simple and accurate test pressure generation. For precise adjustment for accurate comparison testing, the LR-Cal LPP 1000 has a fine adjustment valve. The reference gauge is screwed directly onto the top of the pump and the test item is connected via the connection hose with free-running 1/4″ BSP female thread included in the scope of delivery, using suitable thread adapters if necessary (see accessories).
The test item connection hose is a special high-pressure hose that has a good bending radius despite its pressure resistance.
The solid and high-quality construction ensures efficient and clean working with this hydraulic calibration hand test pump.
| Pressure generation: | 0 to 1,000 bar = 0 to 14,500 psi |
| Pressure ports (standard version): |
For reference instrument (on the top of the pump): 1/2″ BSP female (freely rotating), with integr. O-ring For test item (at the test hose): 1/4″ BSP female (freely rotating), with integr. O-ring |
| Materials: | Aluminium, brass, ABS, Plexiglas, NBR |
| Priming pressure: | Hand lever |
| High pressure: | Switch-over knob, reduced lever stroke |
| Pressure fine adjustment: | Fine volume adjuster (with large volume) |
| Operating media: | Mineral oil based hydraulic fluid or destilled water |
| Fluid reservoir: | Volume > 200 cm³, can be filled during stroking |
| Dimensions: | approx. 270 x 160 x 120 mm (without test hose) |
| Weight: | approx. 1.3 kg (without test hose) |
| Order-Code: | LPP-1000 |
| Photo | Model | Description |
|---|---|---|
 |
LPP-H-KOFFER | Rigid transport and storage case with molded foam insert |
 |
CPB5000-FLUID | Acid free hydraulic oil Bottle with 1 l capacity Suitable for hydraulic calibration hand test pumps |
 |
LPP-ADAPTER-BSP | Set of BSP thread adapter incl. set of suitable O-ring seals for test item port of the pump
1/4″ BSP m x 1/8″ BSP female |
 |
LPP-O-RING-BSP | Spare part for thread adapter set code LPP-O-RING-BSP Set of O-rings |
 |
LPP-ADAPTER-NPT | Set of NPT adapter incl. suitable O-ring seals for test item port of the pump
1/4″ BSP m x 1/8″ NPT female |
 |
LPP-ADAPTER-M | Set of metric adapter and “Minimess® 1620″ for test item port of the pump
1/4″ BSP m x M 12 x 1,5 female |
 |
LPP-MANO-K06 | Analog reference pressure gauge DS 100, accuracy ±0.6 FS |
 |
MMS-M16X2 | Assembly Pressure test hose (max. +70°C) System “MINIMESS® 1620” |
| LPP-H-WARTUNG | Maintenance kit for LR-Cal LPP 700 with O-rings, screw and seals |
| Model | Description | Price |
|---|---|---|
| LPP-1000 | Hydraulic pressure test pump for generating pressure up to 14500 PSI. High quality construction. To be used with oil or water. | from 1492 $ |
| LPP-1000-OXY | Hydraulic pressure test pump for generating pressure up to 14500 PSI, free of oil, suitable for OXYGEN, WITHOUT hose | On request |
| LPP-H-KOFFER | Carrying case with foams for LR-Cal LPP 1000 | On request |
| LPP-O-RING-BSP | Set of spare o-rings for adapter set code LPP-ADAPTER-BSP | from 15 $ |
| LPP-ADAPTER-BSP | BSP adapter set and set of spare o-rings, suitable for test port 1/8″ BSP F, 3/8″ BSP F, 1/2″ BSP F and 1/2″ BSP M | from 131 $ |
| LPP-ADAPTER-M | Adapter set and set of spare o-rings, suitable for test port M 12 x 1.5, M 20 x 1.5 and Minimess® | from 131 $ |
| LPP-ADAPTER-NPT | NPT adapter set and set of spare o-rings, suitable for test port 1/8″ NPT F, 1/4″ NPT F, 3/8″ NPT F and 1/2″ NPT F | from 131 $ |
| LPP-H-WARTUNG | Service kit for LR-Cal LPP 1000 | from 164 $ |
| CPB5000-FLUID | Hydraulic oil for LR-Cal LPP 1000: 1 Liter | from 68 $ |
| LPP-MANO-0060 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-60 bar / 0-800 PSI | from 131 $ |
| LPP-MANO-0100 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-100 bar / 0-1400 PSI | from 131 $ |
| LPP-MANO-0160 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-160 bar / 0-2000 PSI | from 131 $ |
| LPP-MANO-0250 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-250 bar / 0-3000 PSI | from 131 $ |
| LPP-MANO-0400 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-400 bar / 0-5000 PSI | from 131 $ |
| LPP-MANO-0600 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-600 bar / 0-8000 PSI | from 131 $ |
| LPP-MANO-1000 | Analogue reference pressure gauges DS 100 (4″), with fine graduated dial, knife pointer, 1/2″ BSP male st.st. 0-1000 bar / 0-14500 PSI | from 131 $ |
| LPP-1000-SCHLAUCH | High pressure test hose, length 1 m Connection for LR-Cal LPP 1000: double nipple 1/4″ BSP male Connection for unit under test: 1/4″ BSP female rotating | from 260 $ |
You can request the necessary certificates, documentation, instructions and user guide for Leitenberger LPP 1000 using the special form.
You can buy Leitenberger LPP 1000 in Latvia at a price starting from1492 $ in «OLIL SIA» by leaving a request on the website, by phone +371 672 70580 or by email olil@olil.lv. Leitenberger LPP 1000 price are subject to change depending on exchange rates. We deliver instruments by transport companies in Latvia, Estonia and Lithuania. Worldwide shipping to Europe, Asia, Africa, North and South America available on request.
